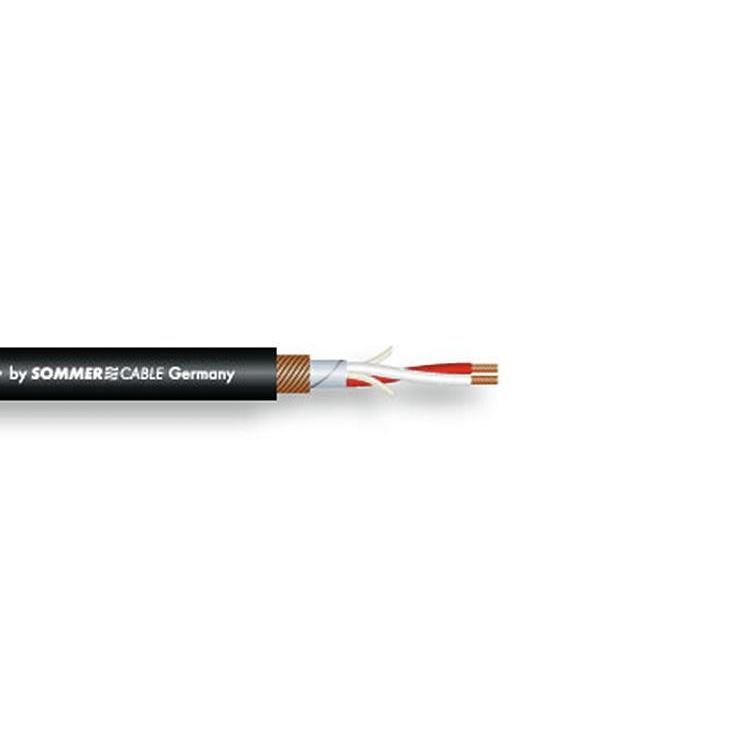

SOMMER Kabel DMX kabel 2×0.34 100m bk BINARY FRNC
Oorspronkelijke prijs was: 296,31.214,70Huidige prijs is: 214,70.
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
High-quality data cable
- AES/EBU- and DMX-conformant, highly flexible
- Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum
- Extremely robust with an especially strong jacket
- Only a little more expensive than a standard microphone cable
- For networking of scanners, lighting units, digital mixing boards, etc.
- For indoor and outdoor installation
- For connection of digital audio amplifiers, DAT-recorders, etc.
- Made in Europe
| Construction: | (2LI2YS 0.34 mm²) (ST)CY |
| Jacket: | PVC 7.0 mm |
| FRNC: 5.6 mm | |
| No. of inner conductors: | 2 x 0.34 mm² (AWG 22) |
| Copper strand per conductor: | 19 x 0.15 mm |
| Conductor insulation: | Foam/skin-PE 1.50 mm |
| Shielding: | copper spiral shielding + aluminum steamed fleece |
| Shielding factor: | 100 % |
| Temperature range: | -25° C to +70° C |
| Fire load per m: | 0.17 kWh (520-0051 F:0.23 kWh) |
| Weight per 1 m: | 50 g |
| Packaging: | 100 m roll |
| Electrical data | |
| Capac. cond./cond. per 1 m: | <65 pF |
| Capac. cond./shield. per 1 m: | >115 pF |
| Cond. resistance per 1 km: | 53 ohms |
| Insulation resist. per 1 km >1 Gohms | |
| Surge impedance: | 110 ohms |
Extra informatie
Extra informatie
| Gewicht | 4,45 kg |
|---|---|
| Afmetingen | 0,1600 × 0,2300 × 0,2300 m |
| Cable length m | 100 |
| Color | Black |
| Number of plugs Connector A | 1 |
| Number of plugs Connector B | 1 |
| Plug A | 1 x No connector/cable only |
| Plug B | 1 x No connector/cable only, No connector/cable only |
