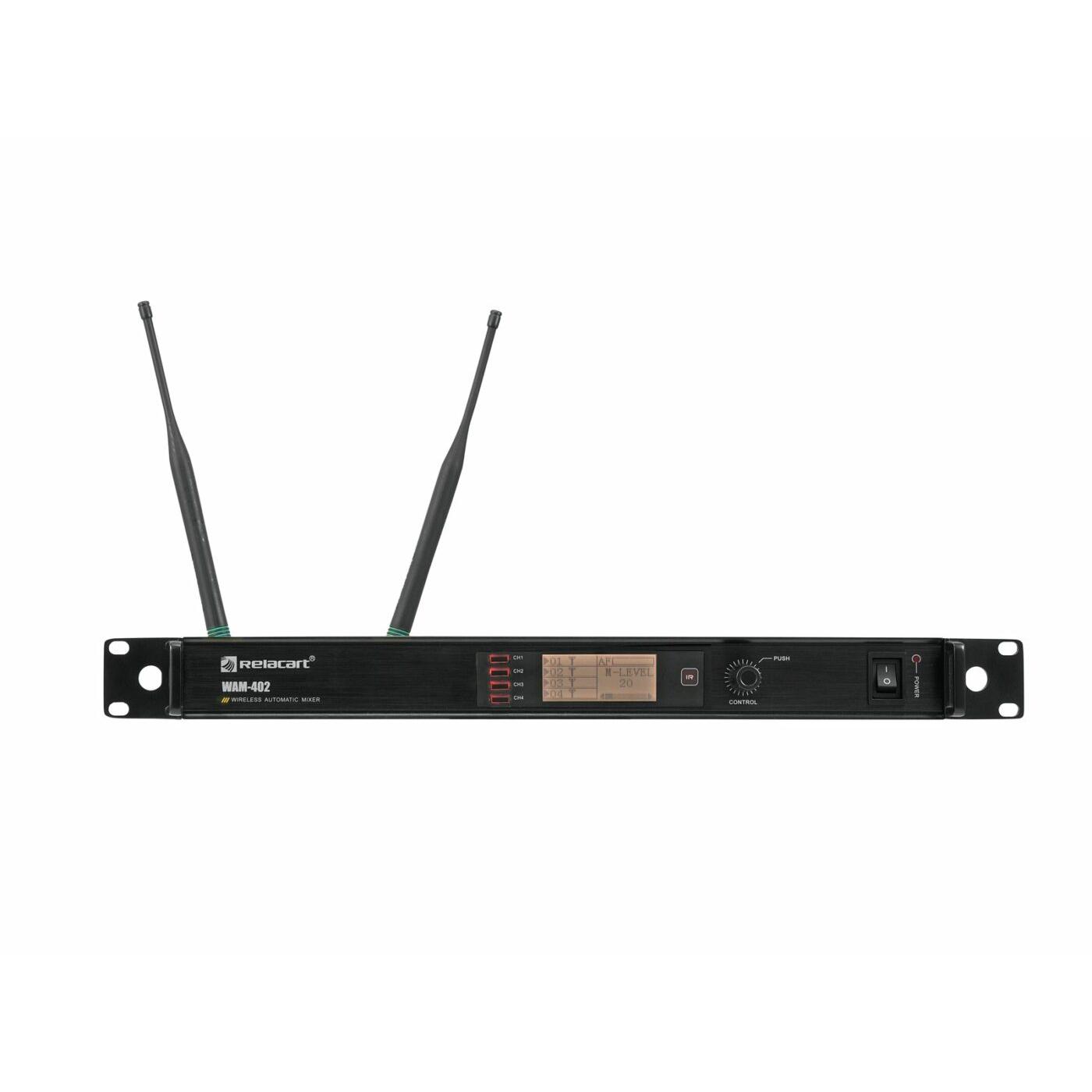

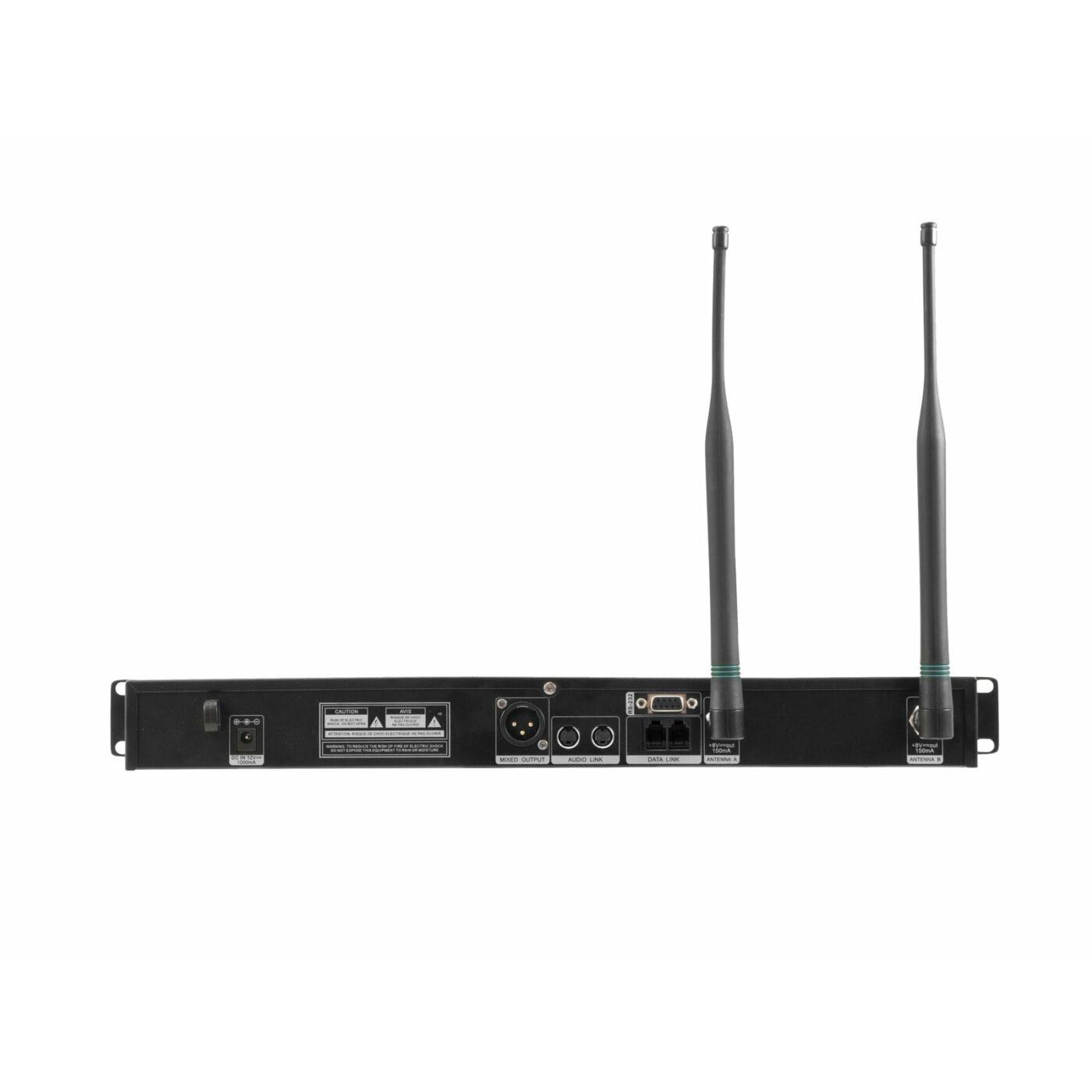

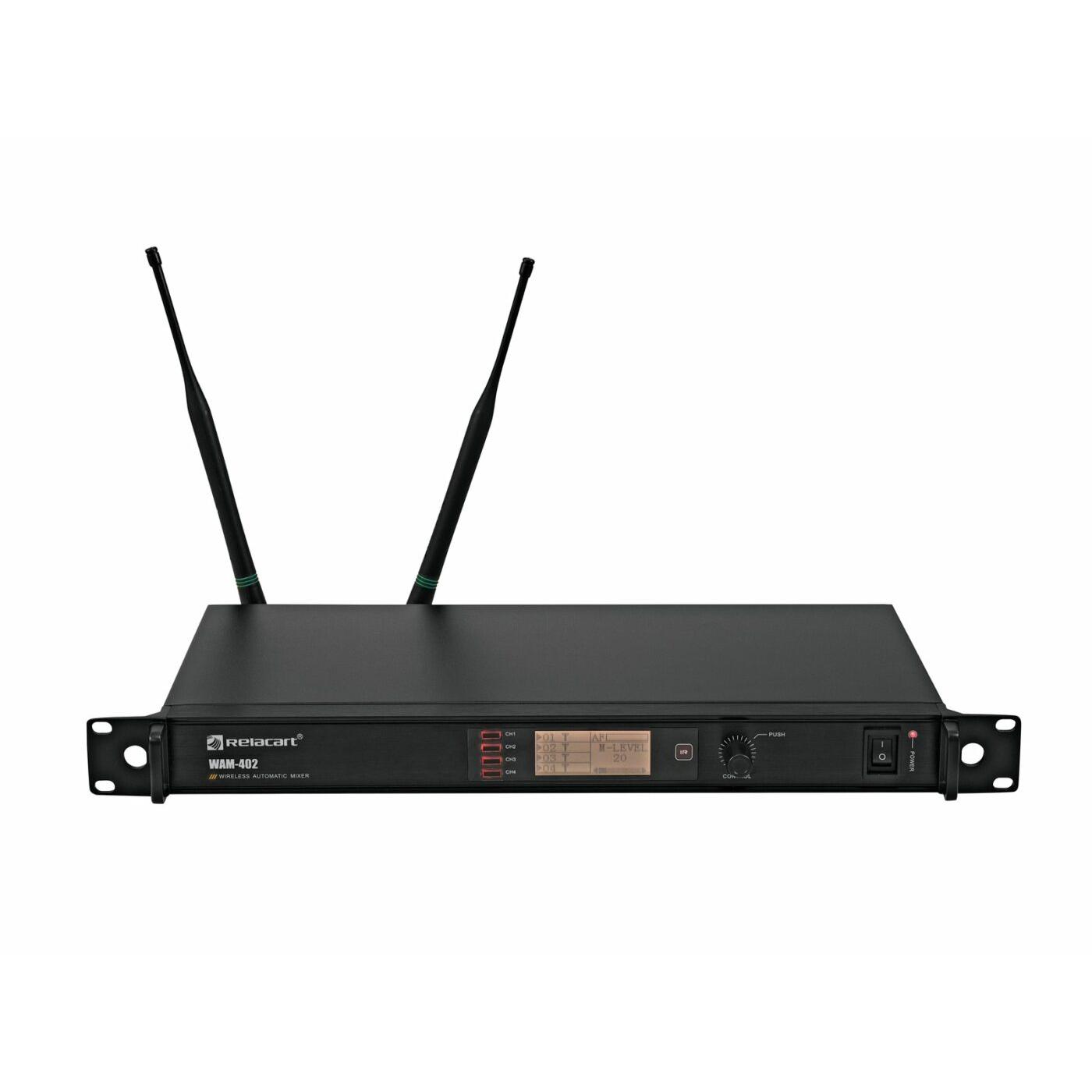

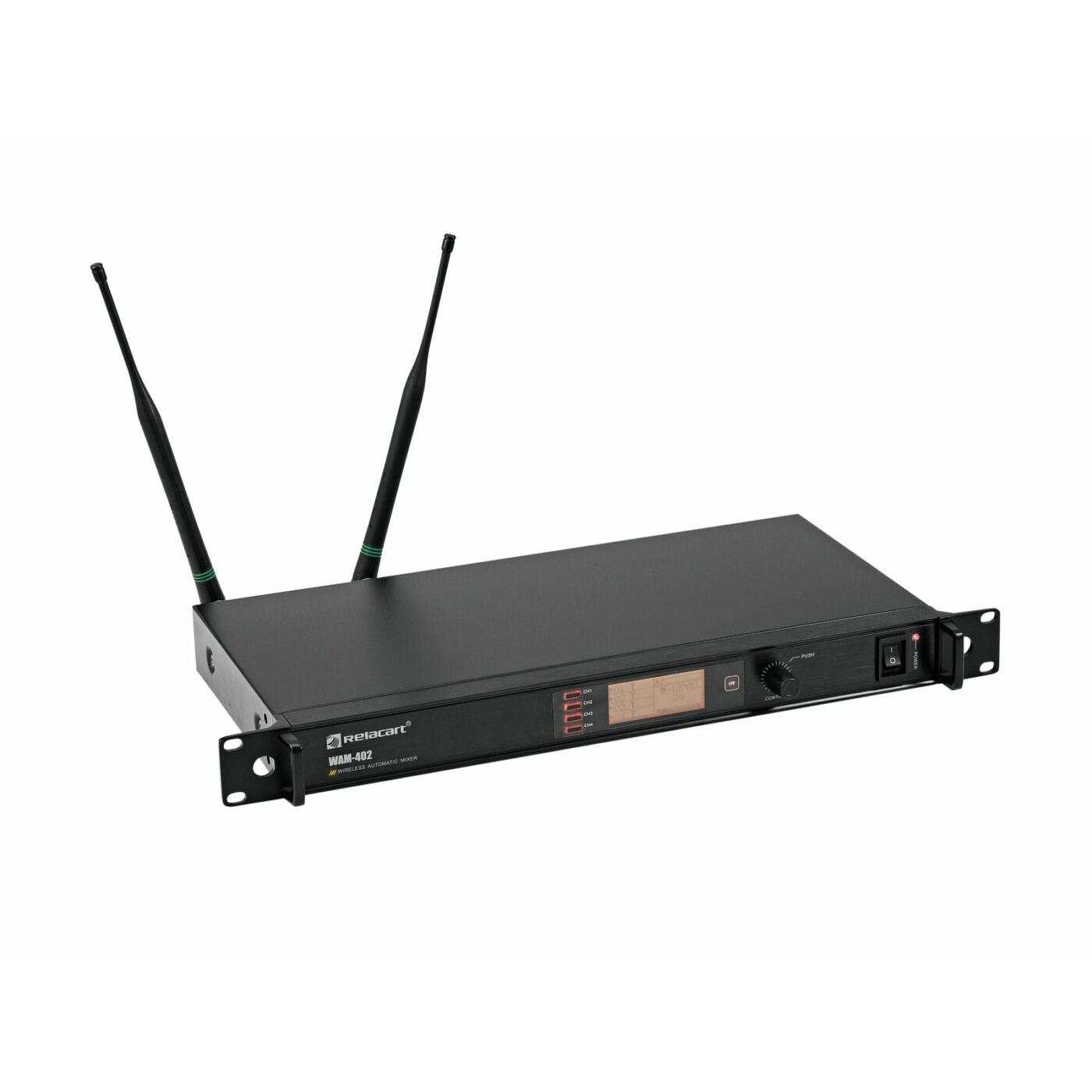

Relacart WAM-402 4CH Digital UHF Automatic Mixer

Relacart WAM-402 4CH Digital UHF Automatic Mixer

Oorspronkelijke prijs was: €712,81.Huidige prijs is: €554,22.

In stock
0 out of 5
( Er zijn nog geen beoordelingen. )

Oorspronkelijke prijs was: €712,81.Huidige prijs is: €554,22.

Op voorraad nu besteld uiterlijk 18 april in huis.
Gratis verzending vanaf 100 euro.
30 Dagen bedenktijd, en Gratis retouren.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis Artikelnummer: 13055226
Download de handleiding

Beschrijving

The WAM-402 is a wireless, DSP-based conference system that subtly and automatically carries out a number of functions in the background. Thus, it is also suitable for environments without present technical personnel such as video conferencing, large meetings or public sessions. Voice signals are detected intelligently, feedback and background noise thus successfully prevented. The WAM-402 is very flexible thanks to numerous accessories

Digital UHF automatic mixer with DSP for up to 4 microphones

  • 4 digital input channels for matching wireless microphones, e.g. UB-1 and UD-1
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
  • Precise and noise-free microphone selection that automatically adjusts to changes in background room noise
  • Eliminates acoustic feedback and background noise
  • Automatic mixing technology activates only those microphones being addressed
  • Number of open microphones adjustable
  • Control algorithm adjusts gain automatically
  • Auto mixing parameters adjustable
  • Several units can be linked for operation with 9 wireless microphones, link cables included
  • User-friendly menu operation via LCD
  • Last used microphone stays activated (switchable)
  • Adjustable priority circuit for each microphone
  • Automatic frequency scan (AFS) finds interface-free channels
  • Lock function avoids accidental changing of settings
  • Inputs e.g. for multimedia applications from PC, laptop, MP3 players
  • Balanced and unbalanced outputs for PA or recording applications
  • Two removable antennas (BNC connection)
  • Operation via supplied power unit
  • Rack installation, 1 U
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
System: True Diversity, 4 channels
Carrier frequency: UHF 823-832 and 863-865
Receiving frequencies: 90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth: 11 MHz
Deviation: ±45 kHz
Frequency stability: ±10 ppm
T.H.D.: <0.9 % at 1 kHz
S/N ratio: >100 dB
Modulation method: FM
Sensitivity: 5 dBµV (S/N >60 dB at 25 deviation)
Audio output, mono: XLR bal., 6.3 mm jack unbal., 2 x RCA
Audio output level: -10 dBV
Audio input, mono: 2 x RCA
Audio input level: -10 dBV
Communication: 2 x RS-485 (for external controllers)
Antenna inputs: 2 x BNC (supply 8 V/150 mA)
Power supply: 12 V DC, 1 A
via supplied power unit connected to 100-240 V AC, 50/60 Hz
Dimensions (L x W x H): 483 x 283 x 44 mm
Rack installation with 1 U
Weight: 2,76 kg
