Relacart UT-200 Bodypack met HM-800S Headset
Oorspronkelijke prijs was: €117,81.€99,00Huidige prijs is: €99,00.
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
Pocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz
- Pocket transmitter for receiver WAM-400
- Durable aluminum alloy housing, applicable for touring

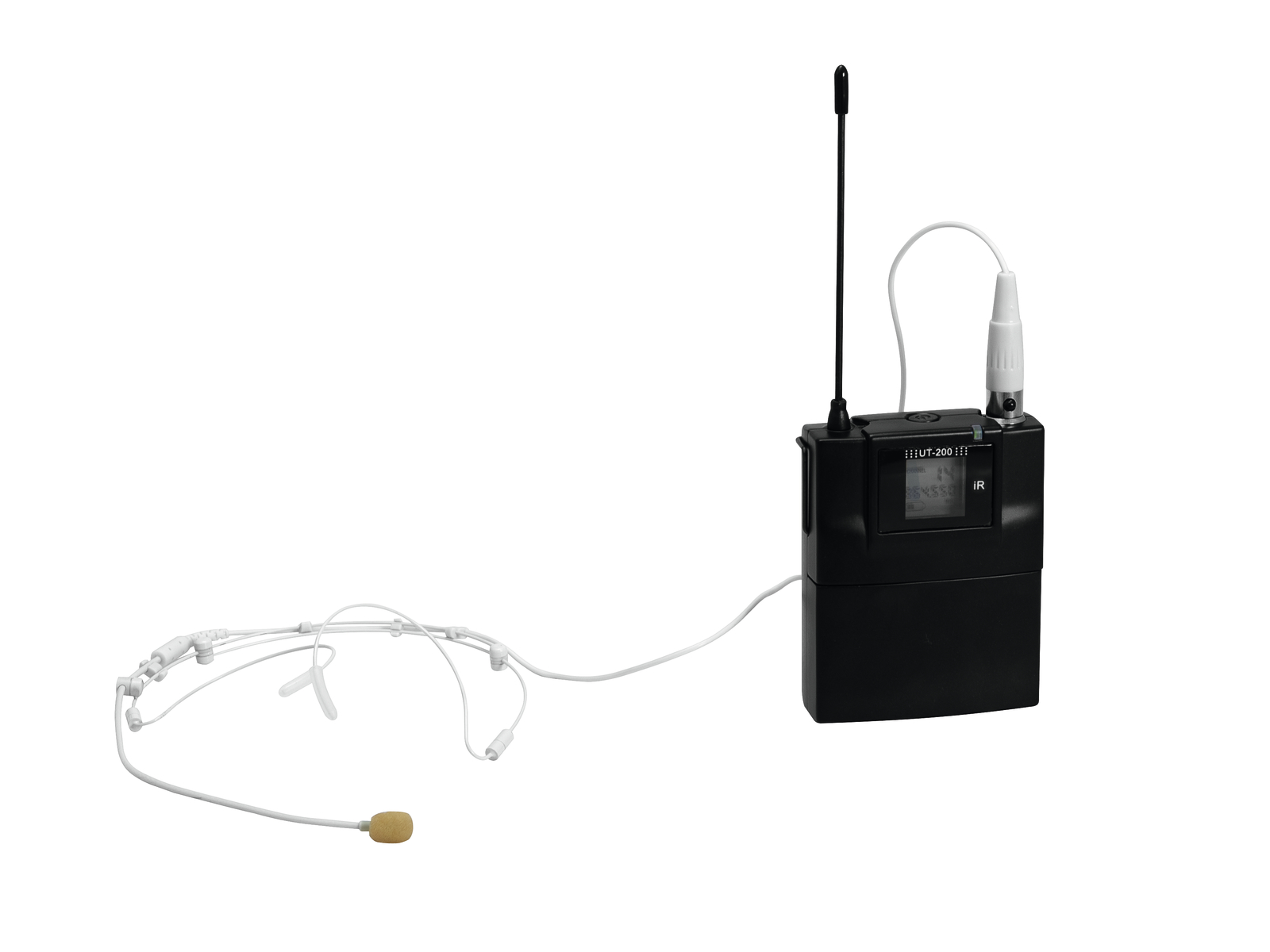

- Incl. headset microphone HM-800S
- Lavalier microphone LM-C400 optional
- Pilot tone technology (PLL) for interference-free operation
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- Operation range 80 meters

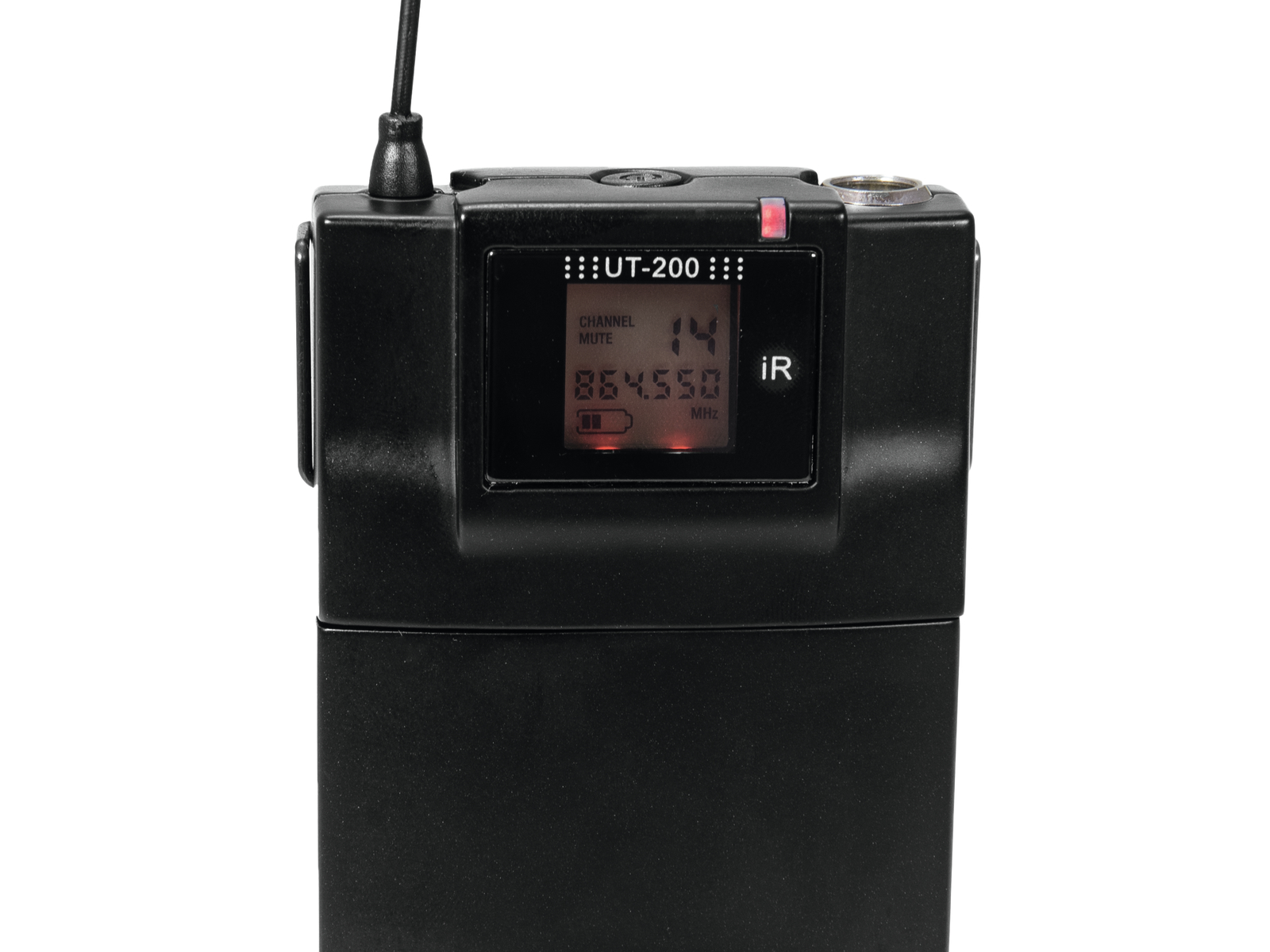

- OLED for battery status, frequency, channel and group
- Mute function
- Adjustable input gain
- RF output power Hi/Low adjustable
- Lock function avoids accidental changing of settings
- Long battery life for up to 11 hours continuous operation
- Operation via 2 x 1.5 V battery (type AA), not included
- License-free and approved in the EU (please check on a country-by-country basis)
| Carrier frequency: | UHF 823-832 MHz and 863-865 MHz |
| Transmitting frequencies: | 90 |
| 10 frequency banks with up to 10 preset frequencies each | |
| Switching bandwidth: | 11 MHz |
| Deviation: | ±45 kHz |
| Modulation: | FM |
| Coverage: | 80 m (with line-of-sight) |
| Connection: | 4-pin mini XLR jack (supplies 5 V) |
| Power supply: | 2 x 1.5 V battery (type AA) |
| Current consumption: | 110 mA |
| Battery life: | 11 hours |
| Dimensions: | 84 x 66 x 23 mm |
| Weight: | 175 g |
| Headset microphone: | |
| Type: | Electret |
| Directivity pattern: | Omnidirectional |
| Frequency range: | 45-18000 Hz |
| Sensitivity: | -47 dB |
| Impedance: | 2.2 kohms |
| Power supply: | 2-10 V DC |
| Connection: | cable with 4-pin mini XLR plug |
| Cable length: | 100 cm |
| Capsule dimensions: | 6 x 5 mm |
Extra informatie
Extra informatie
| Gewicht | 0,346 kg |
|---|---|
| Afmetingen | 0,0700 × 0,2950 × 0,1100 m |
| EAN | 4026397612639 |
| Frequency band | UHF 823 – 832 MHz, UHF 863 – 865 MHz |
| Microphone-Type | Condenser |
| On/off/mute-switch | Yes |
| Weight kg | 0,175 |
| Frequency range Hz | 45 – 18000 |
| Type | Pocket transmitter |
| Material | aluminium |
| Frequency selection | Switchable frequency |
| Polar pattern | Omnidirectional |
