Name: PSSO DCA-12000 2-Channel SMPS Amplifier
SKU: 10451693
Availability: BackOrder

-16%

PSSO DCA-12000 2-Channel SMPS Amplifier

0 out of 5

Oorspronkelijke prijs was: €2.259,00.Huidige prijs is: €1.899,00.

Op voorraad nu besteld uiterlijk 11 april in huis.

Gratis verzending vanaf 100 euro.

30 Dagen bedenktijd, en Gratis retouren.

Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.

We adviseren je graag! Neem contact met ons op.

Keuze uit 3400 Afhaalpunten van PostNL

International shipping, whole of Europe.

Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis Artikelnummer: 10451693

Beschrijving

Class I stereo PA amplifier with SMPS, 2 x 6000 W RMS (2 ohms), 2 x 3900 W RMS (4 ohms)

Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel

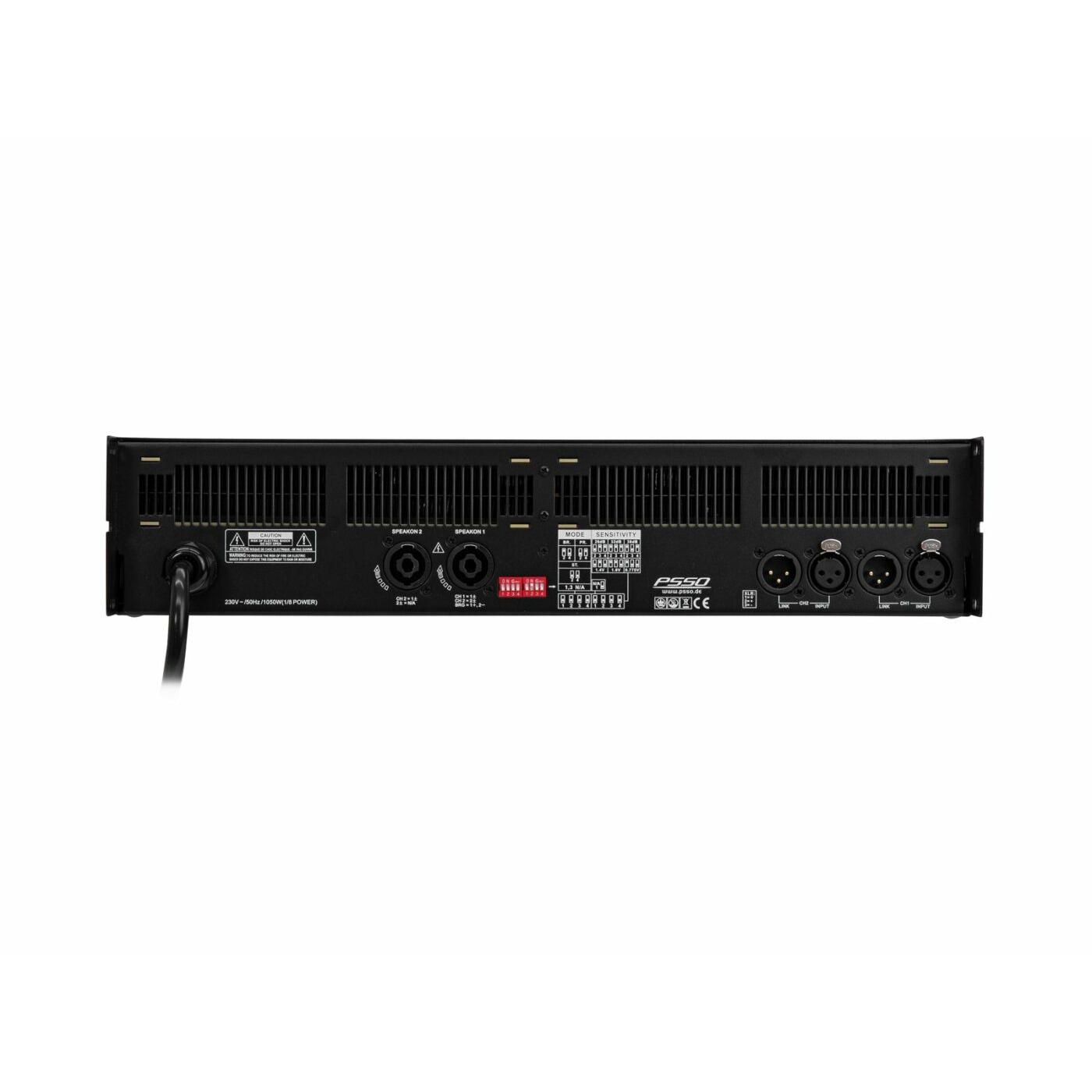

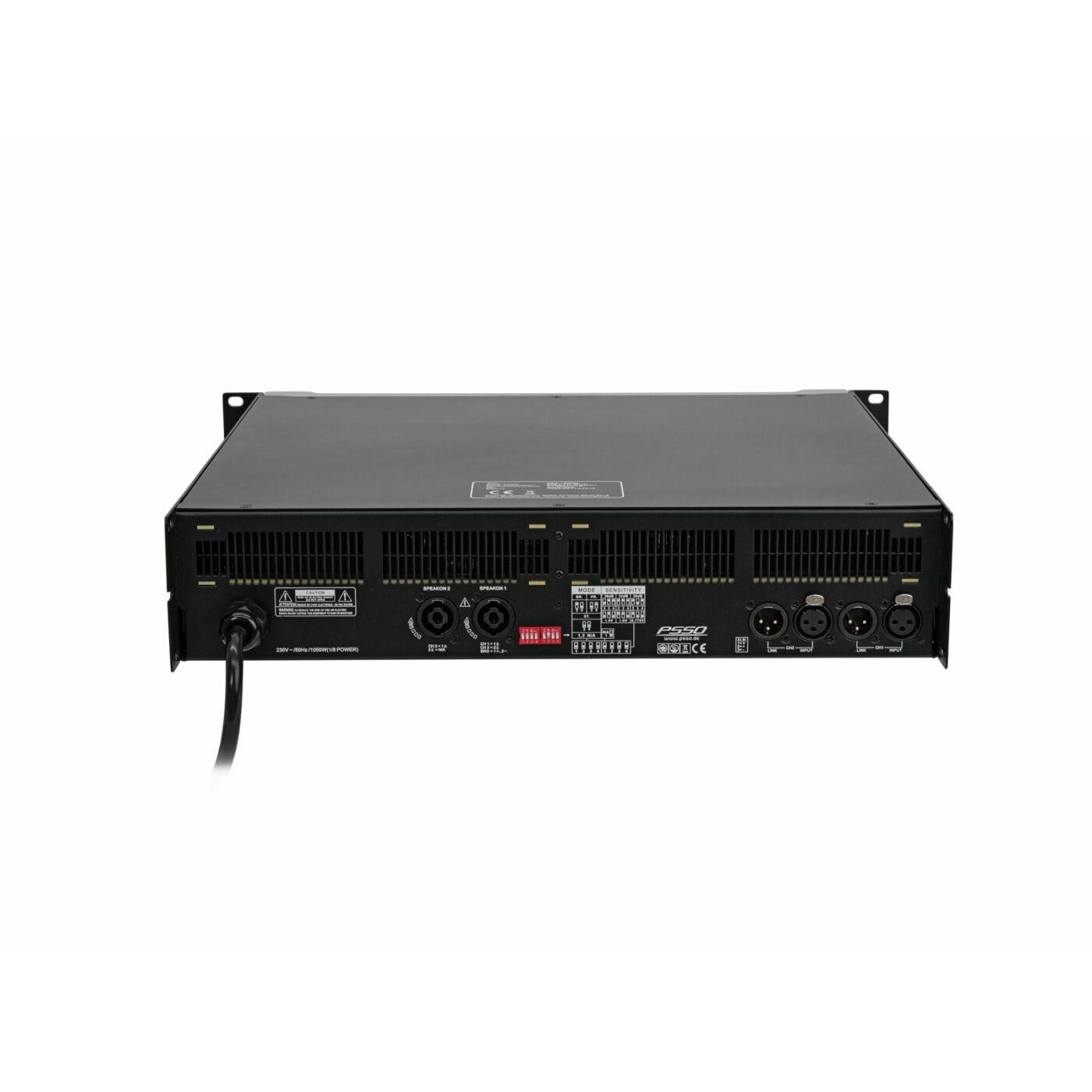

Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs

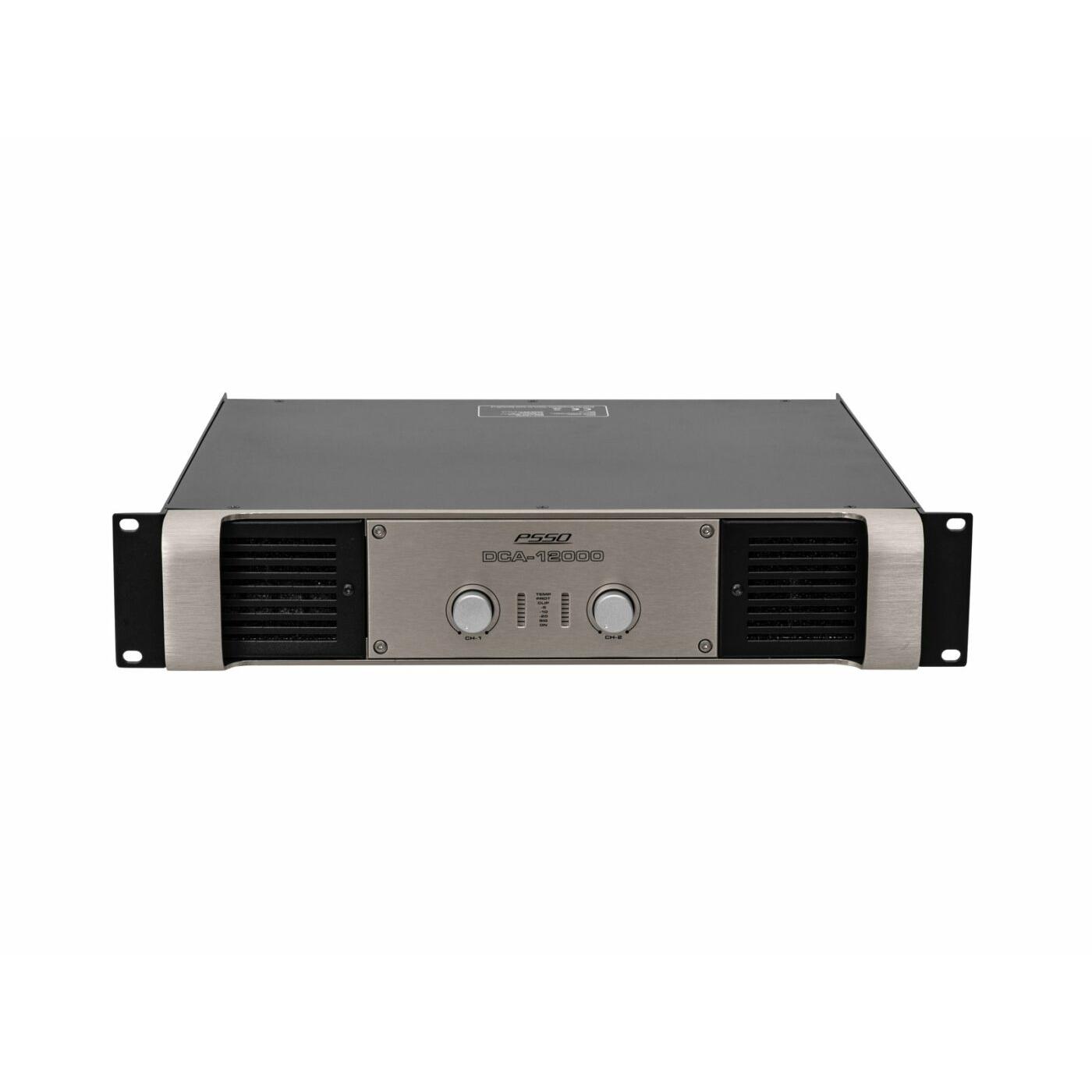

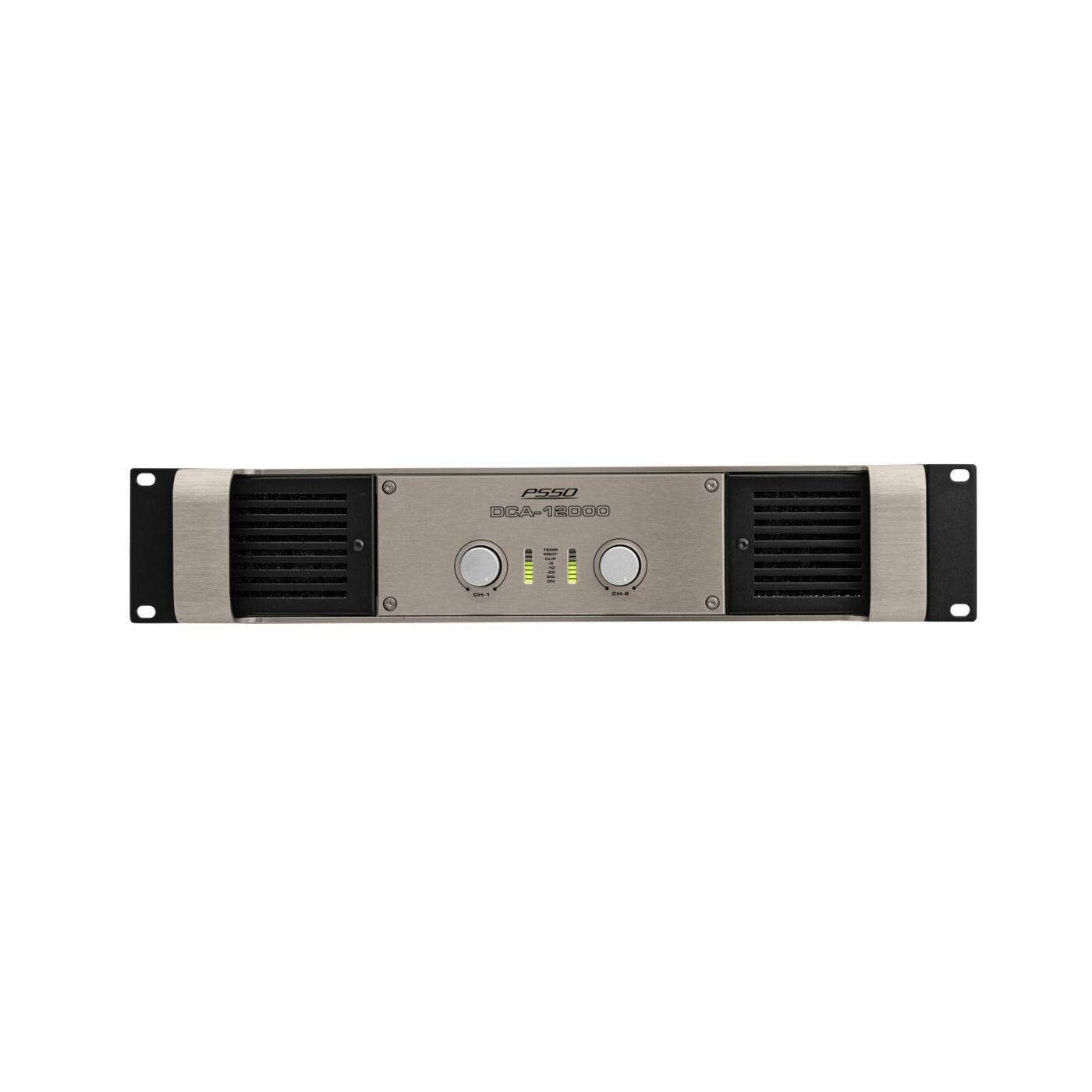

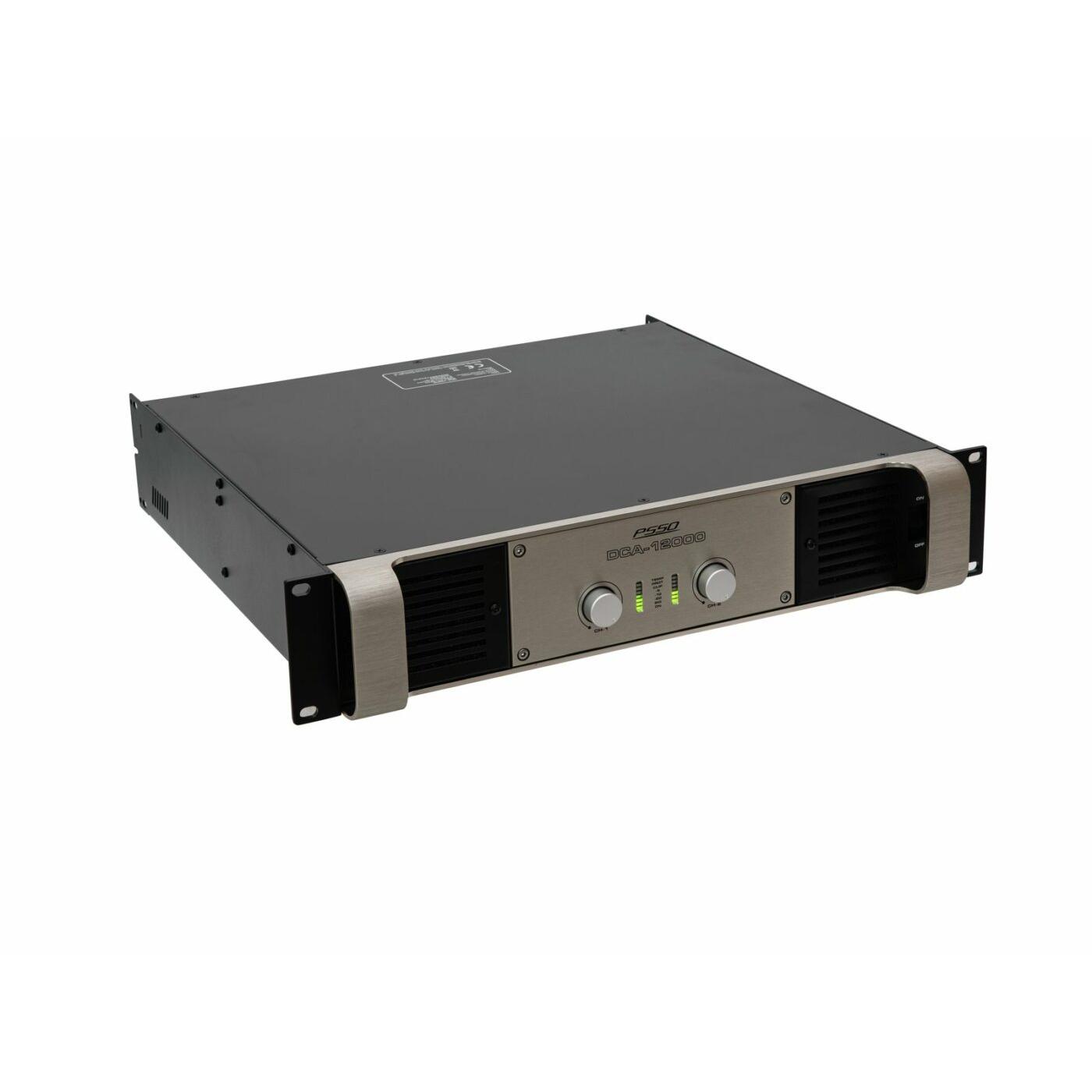

Rugged steel chassis with aluminum front panel
Highly efficient Air flow from front to rear
The device is cooled by temperature-controlled fan
Built with NEUTRIK connector
(19″) 48.3 cm rack installation 2 U
For application areas such as: Stage; concerts/FoH’s; Rental

Package contents

Power supply:	230 V AC, 50 Hz
Power consumption:	1050 W 1/8 power
Protection class:	Protection class I
Output power:	2 x 6000 W RMS (2 ohms) 2 x 3900 W RMS (4 ohms) 2 x 2300 W RMS (8 ohms) 1 x 10000 W RMS bridged (4 ohms) 1 x 6200 W RMS bridged (8 ohms)
Power connection:	Fixed power supply cord with safety plug
Cable length:	1,6 m
Frequency range:	20 – 20000 Hz
S/N ratio:	>90 dB
THD:	<0,05 % at 1 kHz
Cooling:	3 x temperature-controlled fan , Air flow from front to rear
Impedance:	Input: 10 kOhm , unbal. Input: 20 kOhm , bal.
Gain:	38 dB/ 0,775 V 32 dB/ 1,0 V 26 dB/ 1,4 V
Housing color:	Black
Circuitry:	Class I
Slew rate:	>10 V/µs
Damping factor:	>200
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch, limiter selector
Controls:	Overheat; overload; short-circuit; softstart; DC voltage; VHF; limiter
Status LED:	Power, level meter, clip, protect
Connections:	Input: line via 2 x 3-pin XLR (F) mounting version Output: line via 2 x 3-pin XLR (M) mounting version Output: speaker via 2 x speaker built-in socket (F)
Input sensitivity:	0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Use of brands:	Built with NEUTRIK connector
Material:	Steel
Housing design:	(19″) 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 44,0 cm Height: 8,9 cm
Weight:	14,20 kg
