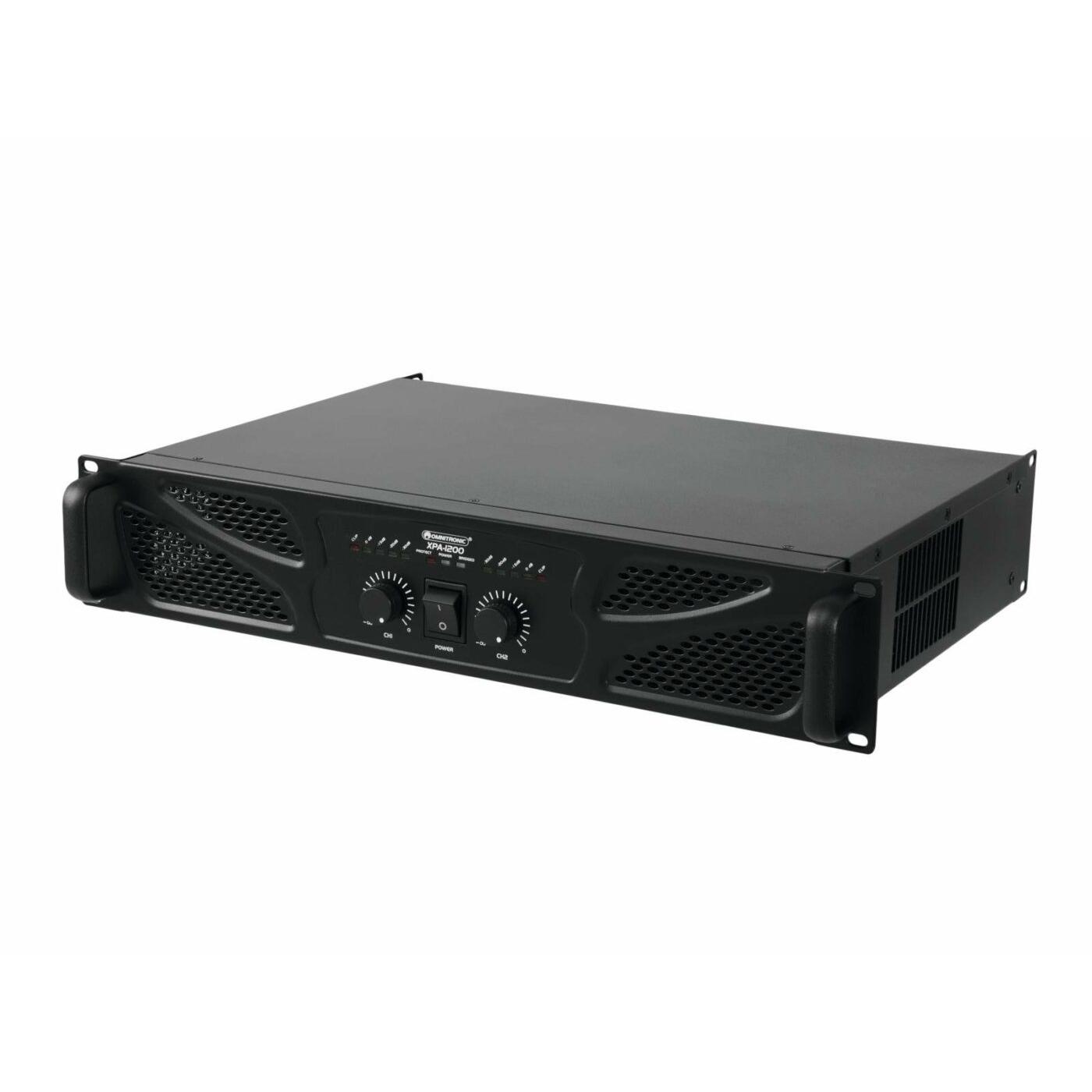

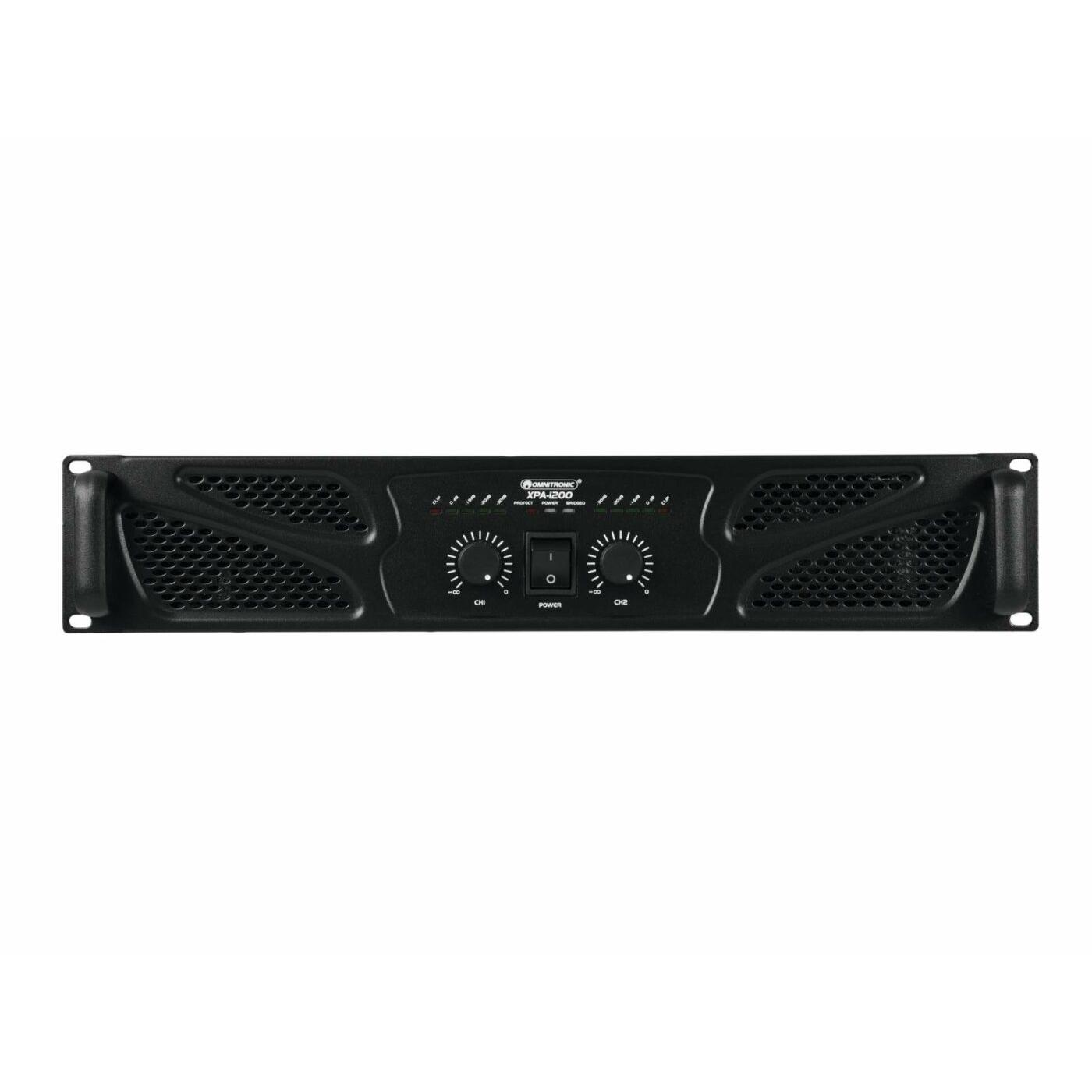

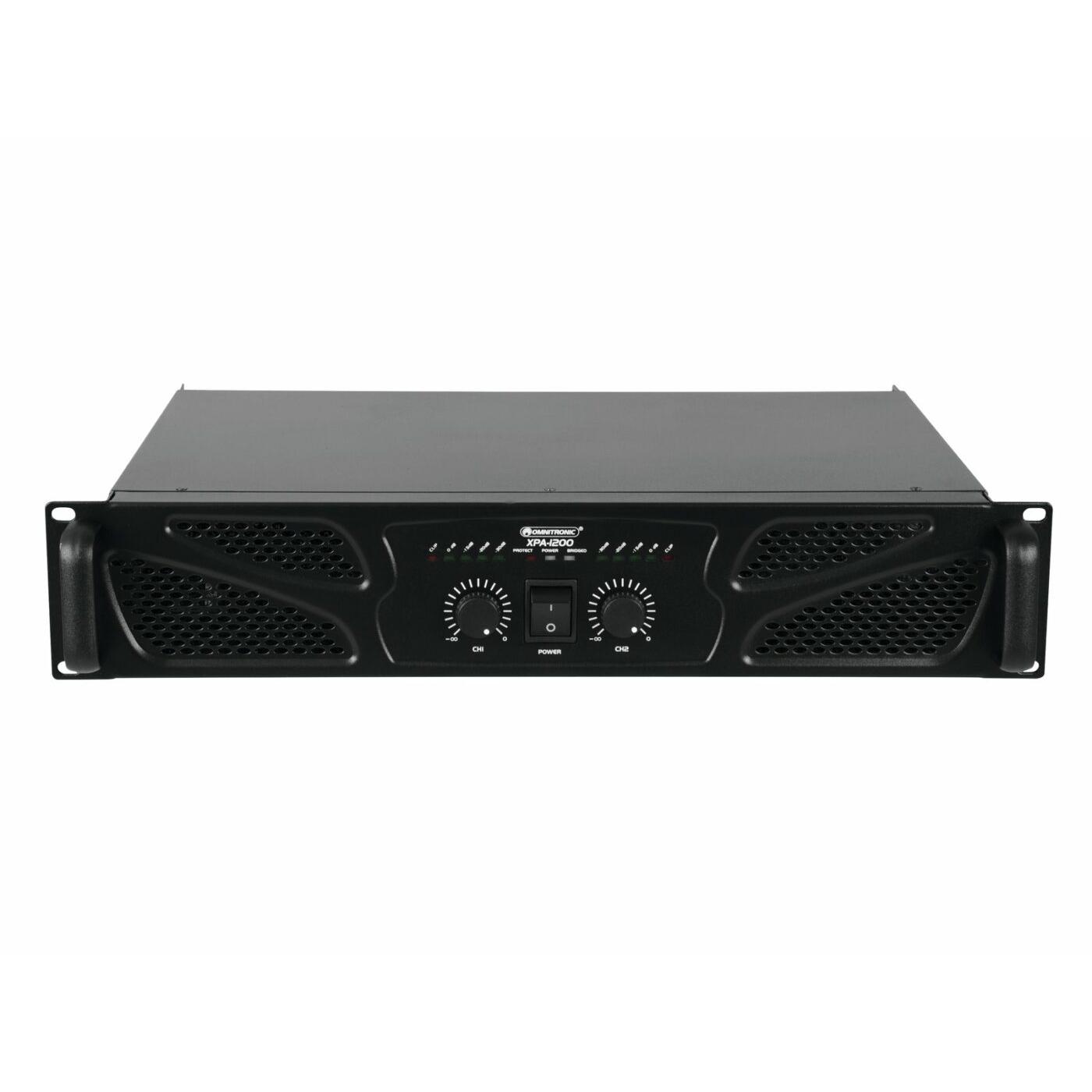

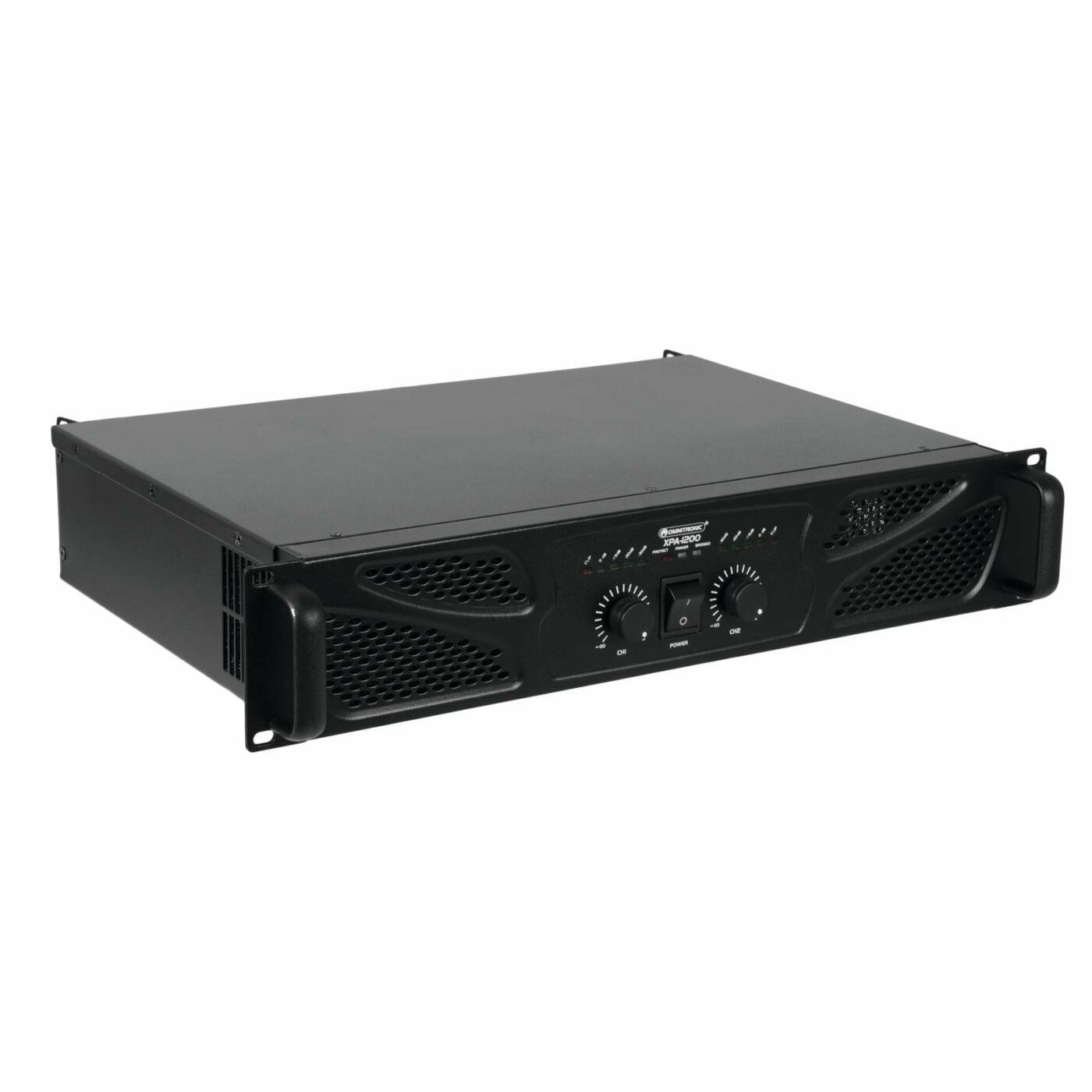

Omnitronic XPA-1200 Versterker

Omnitronic XPA-1200 Versterker

Oorspronkelijke prijs was: 427,21.Huidige prijs is: 309,98.

In stock
0 out of 5
( Er zijn nog geen beoordelingen. )

Oorspronkelijke prijs was: 427,21.Huidige prijs is: 309,98.

Op voorraad nu besteld uiterlijk 10 april in huis.
Gratis verzending vanaf 100 euro.
30 Dagen bedenktijd, en Gratis retouren.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis Artikelnummer: 10451034
Download de handleiding

Beschrijving

PA amplifier with integrated limiter, 2 x 600 W / 4 ohms, 2 x 420 W / 8 ohms

  • 2 operating modes can be selected (stereo or bridged)
  • Limiter, switchable
  • Speaker switch-on delay
  • 2 level controls
  • Each channel with LED for activated protective circuit (protect) and output meter with clip LED
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
  • Groundlift switch against humming
  • Fan cooling
  • Signal inputs via XLR or 6.3mm jack connectors
  • Speaker outputs via lockable speaker jacks and pairs of screw terminals
  • Additional Speaker plug for 8-ohm bridge operation
  • Class AB circuitry
  • Rack installation with 2 units
Power supply: 115/230 V AC, 50/60 Hz
Power consumption: 800 W (1/8 power)
Power output sine:
Stereo 4 ohms 2 x 610 W
Stereo 8 ohms 2 x 420 W
8 ohms bridged 1 x 1200 W
Frequency range: 20-20000 Hz, ±1 dB
Damping factor: >350
Distortion factor: 0.5 %
Slew rate: 20 V/µsec
S/N ratio: >95 dB
Input sensitivity: 1.4 V
Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
Input voltage: max. 21 dBV/9V
Input connectors: 2 x XLR, 2 x 6.3 mm jack

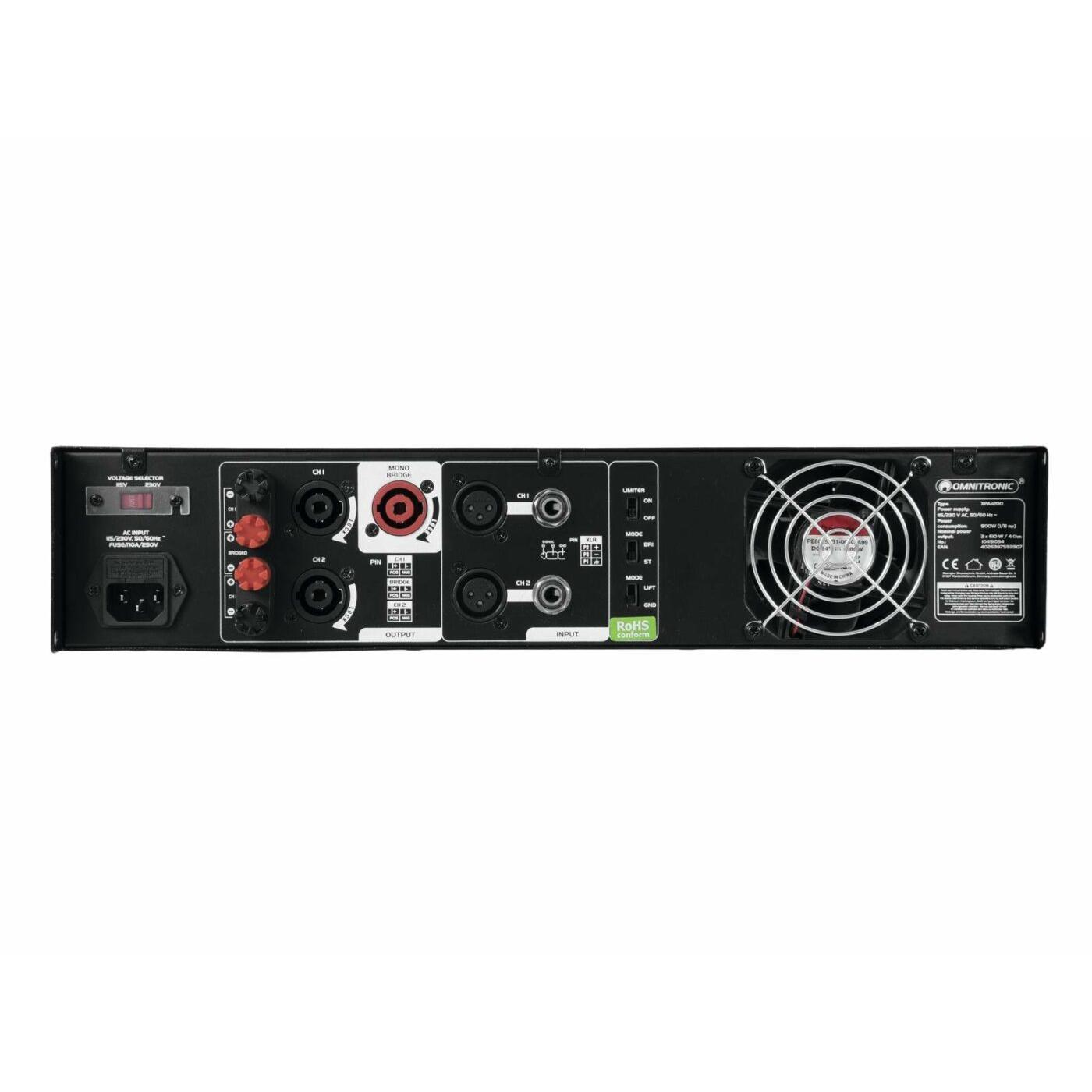

Output connectors: 2 x speaker, 1 x speaker (bridge), 2 x pairs of screw terminals
Control elements: power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector
LED indicators: bridged, protect, and 5-fold output meter with clip LED (per channel)
Protection circuits: short-circuit, overheat, DC voltage, power on/off transients, softstart
Construction: steel chassis with steel front panel
Dimensions (DxWxH): 354 x 483 x 103 mm (19″, 2 U)
Weight: 12.4 kg

Extra informatie

Gewicht 14 kg
Afmetingen 0,1500 × 0,5300 × 0,4200 m
Number of channels

2
Mode of operation

Class-AB
Weight kg

12,4
Power supply

115/230 V AC, 50/60 Hz
Power consumption W

800 1/8 power
Power/channel (8 Ohm)

420
Power/channel (4 Ohm)

610
