-16%

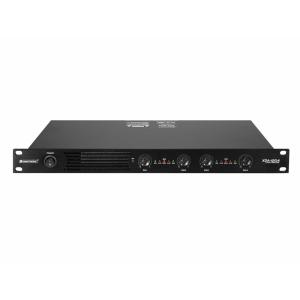

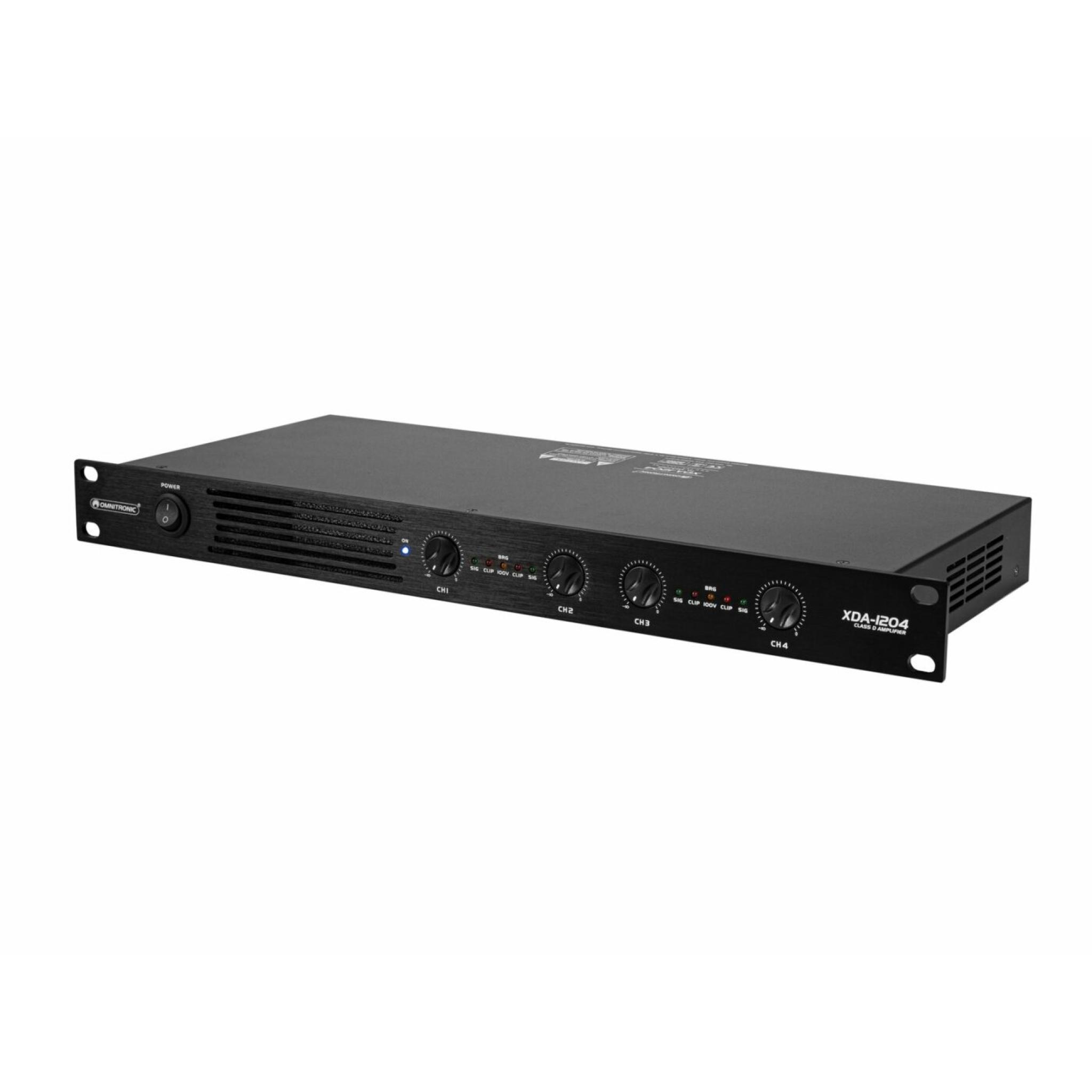

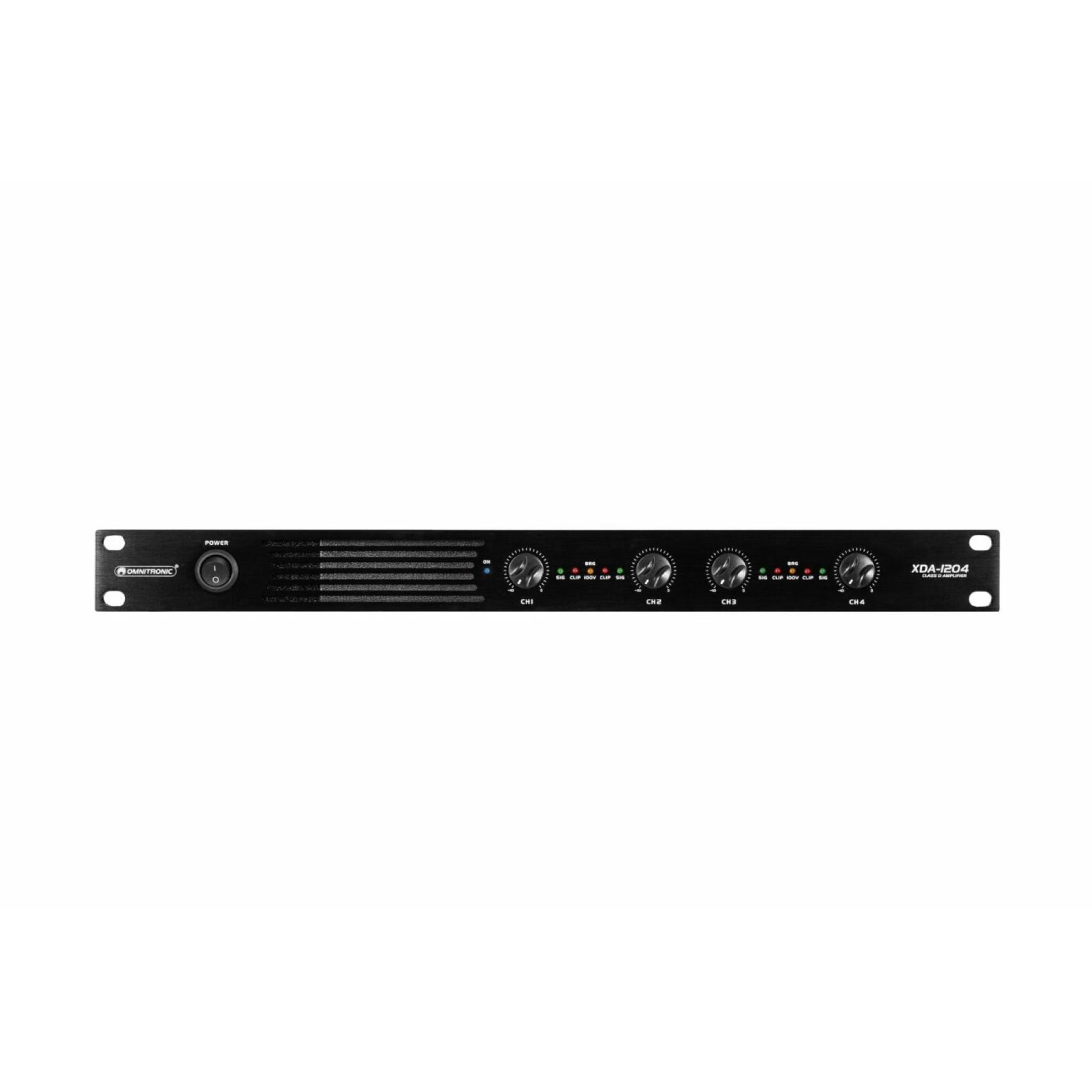

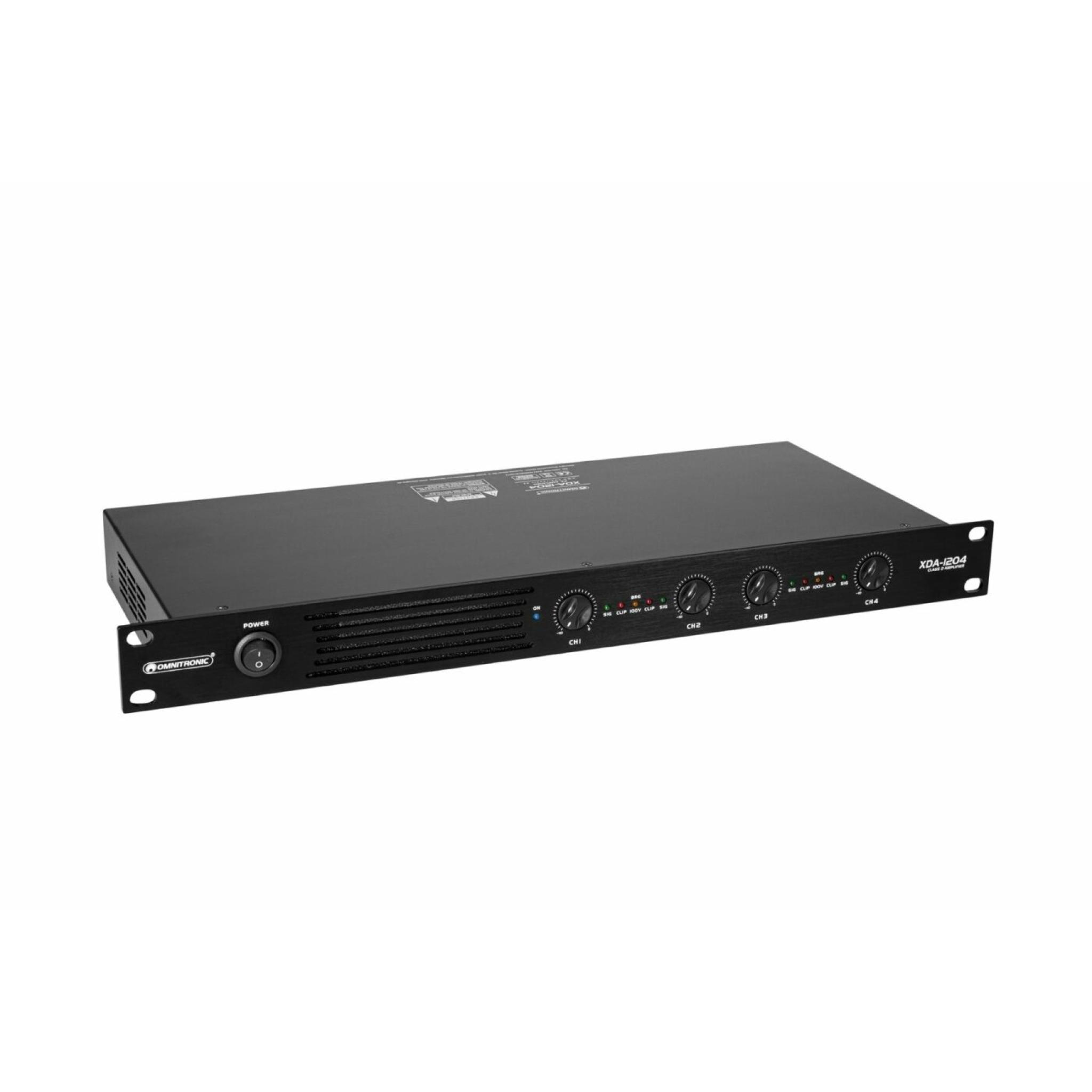

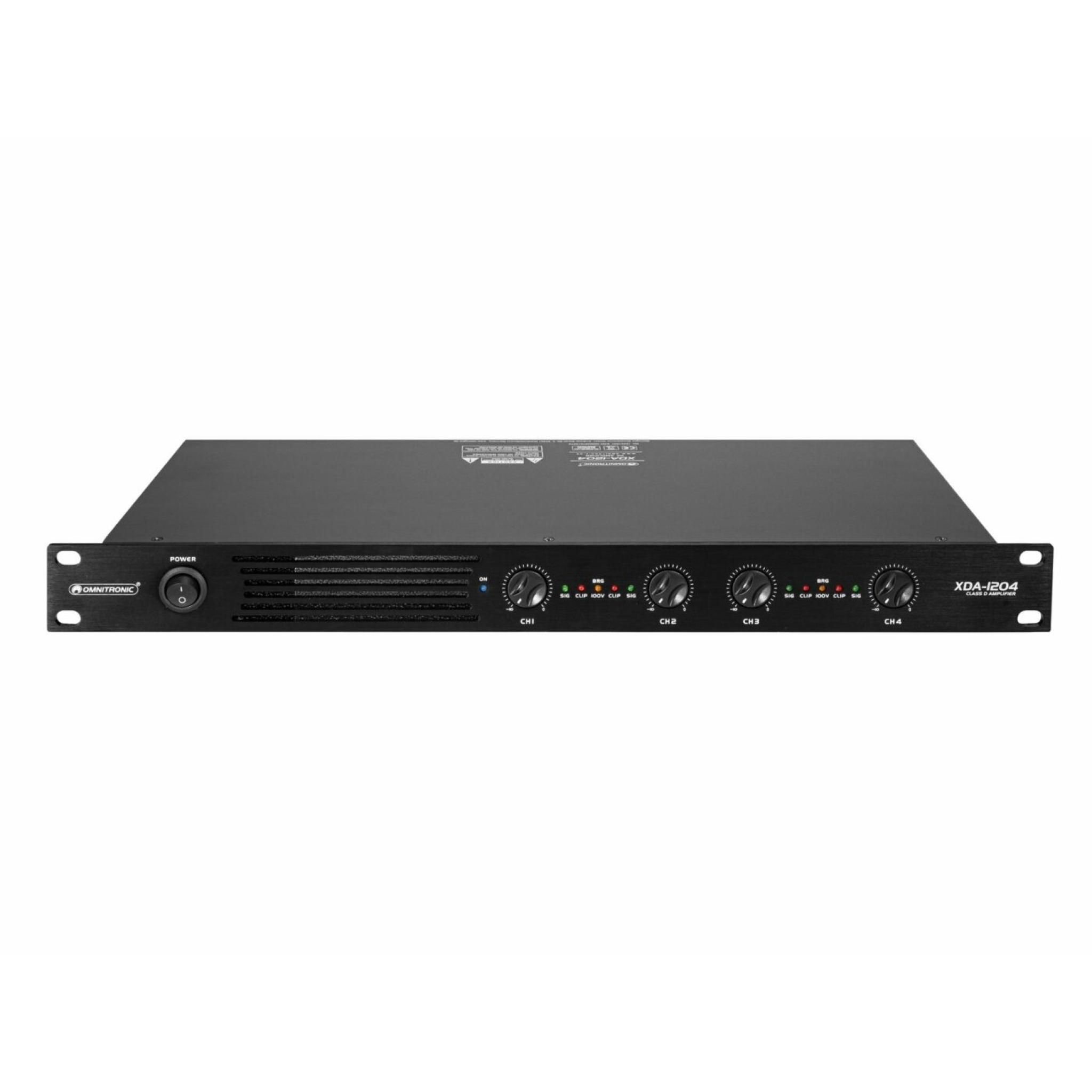

OMNITRONIC XDA-1204 4-Channel Class D Amplifier
Oorspronkelijke prijs was: €474,00.€399,00Huidige prijs is: €399,00.
Op voorraad nu besteld uiterlijk 30 april in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 10451637
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
PA amplifier with SMPS, 4 x 300 W / 4 ohms, 4 x 180 W / 8 ohms, 2 x 600 W / 100 V
- Extremely low weight and height due to integrated switch mode power supply
- 3 operating modes can be selected (stereo, parallel or bridged)
- Level control per channel
- LEDs for clip and signal per channel
- Complete protection set
- (19″) 48.3 cm rack installation 1 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1140 W |
| Output power: | 4 x 300 W RMS (4 ohms) 4 x 180 W RMS (8 ohms) 2 x 600 W RMS bridged (8 ohms) 2 x 600 W RMS bridged (100 V) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 – 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,05 % at 1 kHz |
| Impedance: | Input: 20 kOhm , bal. Input: 10 kOhm , unbal. |
| Circuitry: | Class D |
| Control elements: | Power switch, mode switch (stereo/parallel/bridged), level control per channel |
| Controls: | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: | Power, signal, clip, bridged |

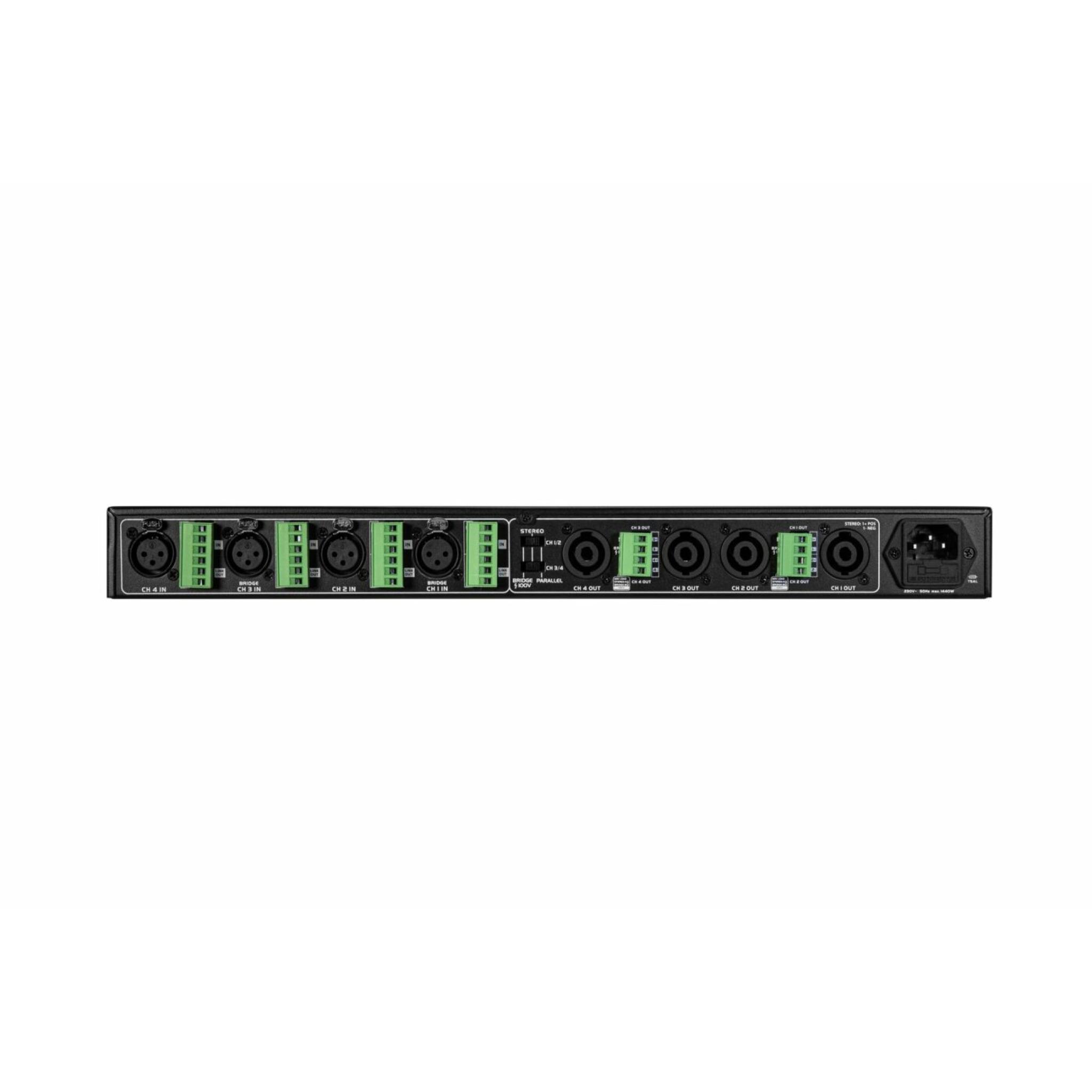

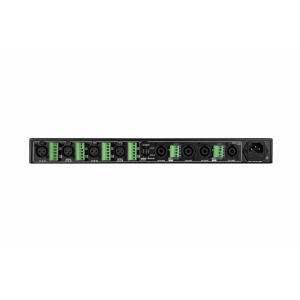

| Connections: | Input: line via 4 x 3-pin XLR Output: line via 4 x 3-pin XLR Output: speaker via 4 x speaker built-in socket (F) Output: speaker via 4 x screw plug-in terminal Input: line via 4 x screw plug-in terminal |
| Housing design: | (19″) 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm Depth: 19 cm Height: 4,4 cm |
| Weight: | 3,50 kg |
Extra informatie
Extra informatie
| Gewicht | 4 kg |
|---|---|
| Afmetingen | 0,0000 × 0,0000 × 0,0000 m |
Beoordelingen (0)
Wees de eerste om “OMNITRONIC XDA-1204 4-Channel Class D Amplifier” te beoordelen
