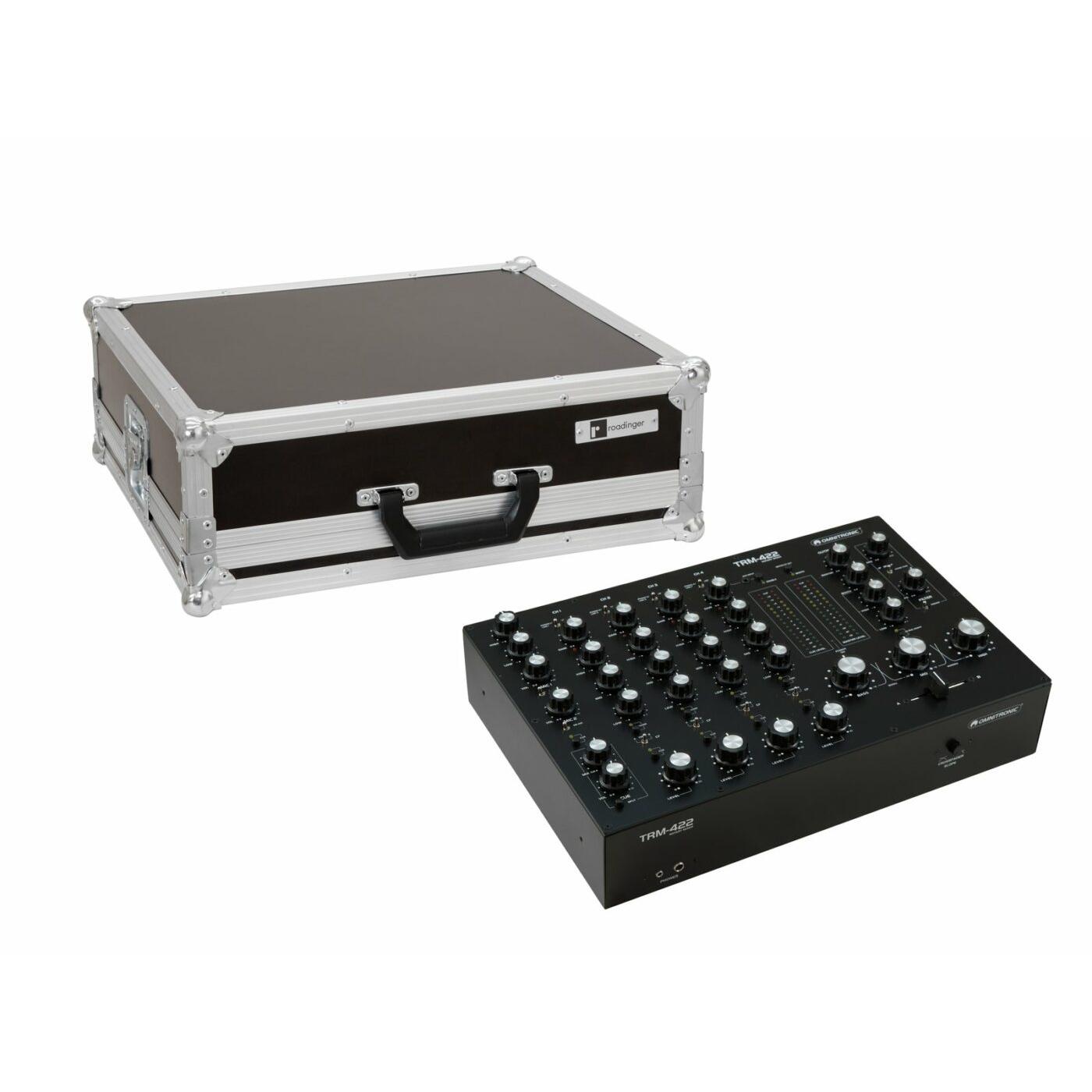

Omnitronic Set TRM-422 + Case
Oorspronkelijke prijs was: 1.069,81.793,98Huidige prijs is: 793,98.
Op voorraad nu besteld uiterlijk 10 april in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 20000897
- Beschrijving
- Extra informatie
- Beoordelingen (1)
Beschrijving
Beschrijving
OMNITRONIC TRM-422 4-Channel Rotary Mixer
4-channel rotary mixer with 3-band frequency isolator and filter section for DJs
- 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Filter section with HPF, BPF, LPF, resonance and sweep control for creative sound shaping
- 4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching
- 2 microphone input channels with gain control, 2-way equalizer on air switch
- High-grade components ensure long life and excellent sound quality
- 16-digit stereo LED level meter, switchable between master and booth outputs
- Booth output with separate 2-way equalizer and level control
- PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option
- Fully assignable VCA crossfader with adjustable curve
- 2 effects send/return paths
- 4 direct outputs for Timecode applications
- Inputs: 8 x line and 4 x phono (RCA L/R), 1 x front aux (mini jack)
- Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
- 483 mm rack installation possible with supplied mounting brackets
- Matching woodkits available at www.omniwoodkit.com
- Desktop console housing
ROADINGER Flightcase TRM-422
PRO flightcase for 1 x TRM-422 Rotary Mixer
- Compartments upholstered with foam
- High-quality workmanship with 6.5 mm birch multiplex, dark brown laminated
- Additional accessory compartment
- Aluminum profile frames with rounded edges
- Three-leg steel ball corners
- 2 high-quality spring locks
- 4 rubber feet
- 1 carrying handle
- High-quality workmanship with birch multiplex , dark brown, laminated
- Made in Europe
| Weight: | 10,39 kg |
| OMNITRONIC TRM-422 4-Channel Rotary Mixer | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 24 W |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | Microphone 20 – 20000 Hz Line 20 – 20000 Hz Phono 40 – 18000 Hz |
| S/N ratio: | >97,2 dB line >91,7 dB Microphone |
| THD: | Line <0,04 % at 1 kHz Phono <0,13 % at 1 kHz Microphone <0,008 % at 1 kHz |
| Gain: | Microphone 44 dB Line -16,5 dB to +8,5 dB Phono -48,5 dB to +23,5 dB |
| Isolators: | Master Gain:- ? bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth |
| Crosstalk: | >-68 dB |
| Control elements: | Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, EQ controls |
| Status LED: | Power, master level meter, clip, CUE |
| Connections: | Input: line via 4 x stereo RCA Input: line/phono via 4 x stereo RCA Input: Microphone via 2 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA Output: AUX sends via 1 x 6.3 mm jack socket (stereo) mounting version Output: AUX returns via 1 x 6.3 mm jack socket (stereo) mounting version Output: Timecode via 4 x stereo RCA |
| Channels: | Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch, Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch, Master output: 2 x stereo via XLR, channel control via Rotary Booth output: 2 x stereo via XLR, channel control via Rotary Rec. output: 1 x stereo via RCA Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue mix split function, |
| Max. level: | Output: +18 dBu |
| Material: | Metal |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 41 cm Depth: 28,5 cm Height: 10,5 cm |
| Weight: | 5,74 kg |
| ROADINGER Flightcase TRM-422 | |
| Maximum load: | 25 kg |
| Material: | Birch multiplex |
| Color: | Dark brown, laminated |
| Dimensions: | Width: 48 cm Depth: 43 cm Height: 17,5 cm |
| Weight: | 4,65 kg |
Extra informatie
Extra informatie
| Gewicht | 11,2 kg |
|---|---|
| Afmetingen | 0,4500 × 0,5400 × 0,5250 m |
Willy Bauweraerts –
Dit apparaat van Omnitronic is een fantastisch veelzijdig apparaat waar ik in mijn studio mee aan de slag ben gegaan om verschillende analoge apparaten (synths,pads,effecten) te koppelen en zo te sturen via de master out naar de amplifier, en/of naar de computer voor opnames in mijn DAW. Ook uitermate geschikt om bij optredens te gebruiken als pre-mix van de synths.
De service van Buzz-shop was prima en elke vraag werd netjes beantwoord. De prijs van het apparaat inclusief Flight case was bijzonder scherp en een dikke meevaller voor mijn portemonnee. :-)
