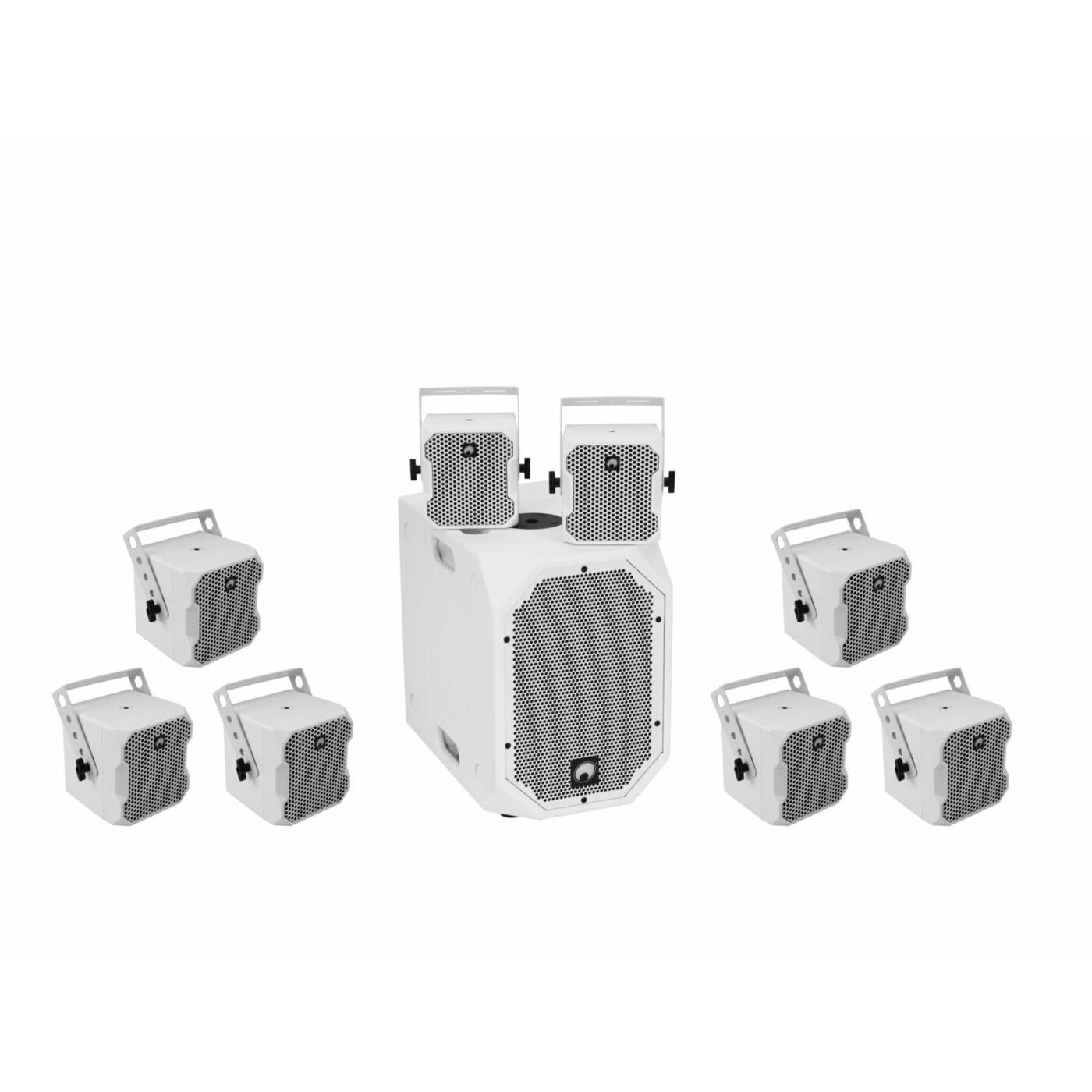

Omnitronic Set BOB-10A wh + 8x BOB-4 wh

Beschrijving

11038871 OMNITRONIC BOB-10A Subwoofer active white

10″ subwoofer with DSP and Bluetooth for the BOB series

• 10″ bassreflex subwoofer with DSP and 600 watts RMS power
• Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
• DSP-controlled class D amplifier (300 W + 2 x 300 W)
• Integrated Bluetooth audio streaming
• 4 EQ presets with indicators
• Signal limiter and crossover
• Signal inputs via combo jacks (XLR/6.3 mm jack) and RCA
• Parallel XLR outputs for linking further BOB systems or active systems
• Separate volume controls for subwoofer and satellites L/R
• Stereo/mono selection
• Phase reversal switch
• Fault, limit, signal and power indicators
• Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
• Two M20 metal flanges for mounting satellite speakers
• MDF enclosure with scratch-resistant lacquer surface and steel grille
• Built-in handles and low weight for ease of transport
• Stackable via recesses when set up horizontally
• Delivery includes two speaker cables
• For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters

11038873 OMNITRONIC BOB-4 Top 16 Ohm white 2x

2 x 4″ satellite speakers with bracket for the BOB series

• 16-ohm speaker pair with 4″ full-range speaker
• For use with BOB-10A subwoofers for 2.1, 4.1 and 8.1 configurations
• Incl. 2 x U-bracket for wall, ceiling and stand installation
• Optional stand adaptor required for stand mounting
• Extension U-bracket and cable available for connecting 2 satellite speakers
• Rated power: 75 W RMS/150 W program
• Connectors: 1 x speaker and screw plug terminal
• ABS plastic cabinet with M8 and M10 threaded inserts
• Scratch-resistant lacquer surface and steel grille
• Transport bag for 4 satellites, brackets and cables optional

11038871 OMNITRONIC BOB-10A Subwoofer active white

Power supply:   115/230 V AC, 50/60 Hz
Power consumption:   1060 W
Amplifier power:   LF 300 W RMS + HF 2 x 300 W RMS
LF speaker:    25 cm (10″) with 50 mm voice coil
Frequency range:   45-250 Hz
Sensitivity:   100 dB
Maximum SPL:    125 dB
Signal input:   combination XLR/6.3 mm jack L/R and RCA L/R
Parallel output:   XLR L/R
Satellite:   Speaker L/R
Dimensions (L x W x H):   470 x 300 x 430 mm
Weight:   16.5 kg
Weight:   17,00 kg
Size of woofer:   (10″) ca. 25 cm
Frequency range:   45 – 250 Hz
Material:   MDF (Medium-density fibreboard) Bass
Number of bass-woofer:   1 Pc/Pcs
Length:   47 cm Bass
Width:   30 cm Bass
Height:   43 cm Bass

11038873 OMNITRONIC BOB-4 Top 16 Ohm white 2x

Components:   10 cm speaker (4″) with 25 mm voice coil
Frequency range:   150-16000 Hz
Sensitivity:   90 dB
Maximum SPL:   109 dB
Impedance:   16 ohms
Connection:    1 x speaker and screw terminals
Dimensions (L x W x H):   160 x 150 x 158 mm
Weight:   1.7 kg
Weight:   4,00 kg
Size of woofer:   (4″) ca. 10 cm
Number of bass-woofer:   1 Pc/Pcs
Rated power:   75 W RMS
Program power:   150 W
Frequency range:   150 – 16000 Hz
Loudspeaker control (Impedanz):   16 Ohm
Height:   15,8 cm Top
Depth:   16 cm Top
Width:   15 cm Top
