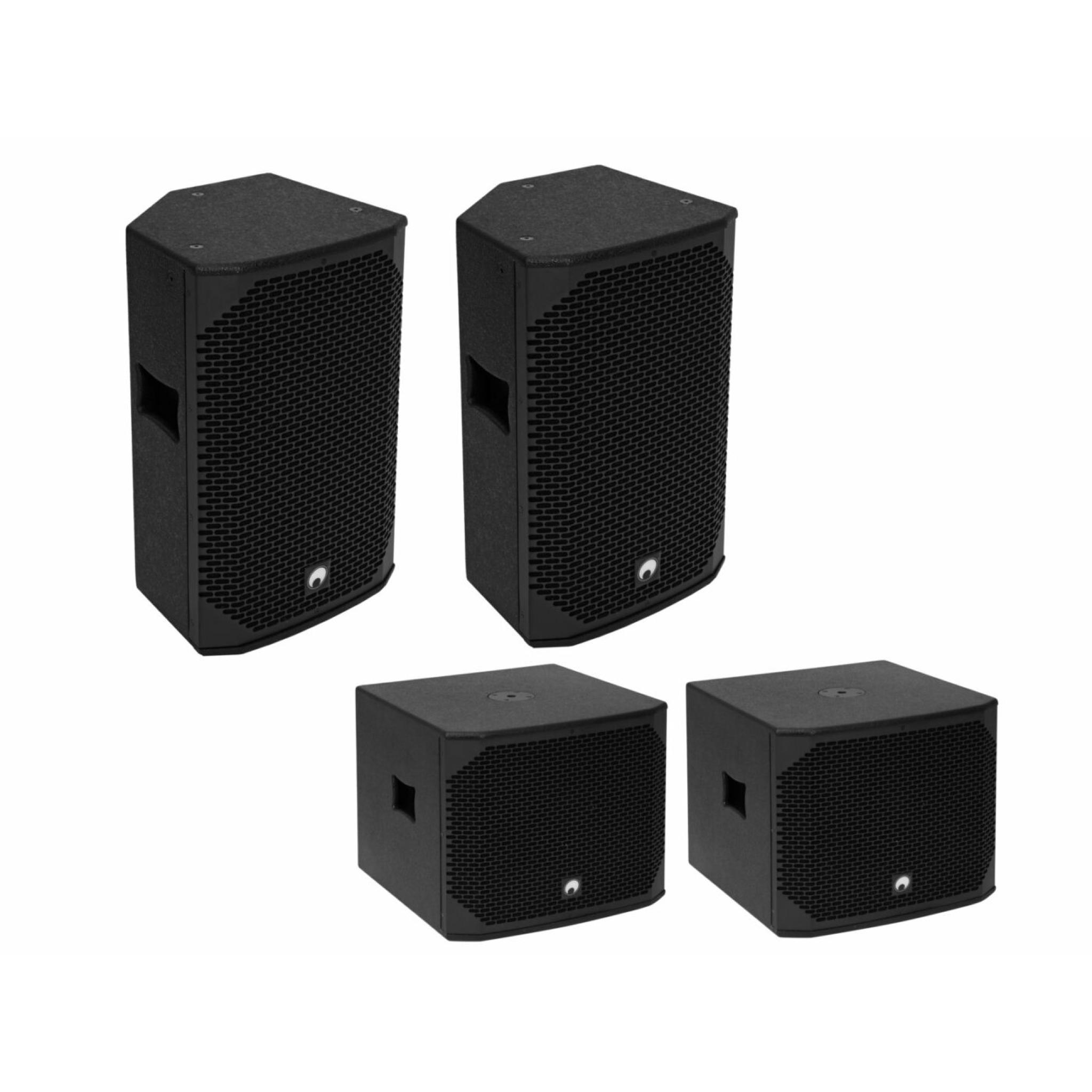

Omnitronic PA Set AZX passive XL

Beschrijving

11039032 OMNITRONIC AZX-215 2-Way Top 300W

Passive speaker with 15″ woofer, 1.75″ driver and 300 W RMS

• 2-way bass-reflex system with 38 cm woofer and 4.5 cm titan driver
• Speaker connections
• Stable MDF housing with protective grille and handles
• Dual flange with 0° and 5° tilt angle enables flexible positioning
• M10 threaded inserts for suspended installation
• Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

11039044 OMNITRONIC AZX-118 PA Subwoofer 450W

18″ bassreflex subwoofer with 450 W RMS, 8 ohms

• 46 cm (18″) bass speaker with 63 mm voice coil
• Parallel Speaker connectors
• M20 metal flange for mounting top speakers
• Carrying handles
• Housing made of 15 mm MDF
• Scratch-resistant lacquer surface
• Impact-resistant steel grille with acoustic foam

11039032 OMNITRONIC AZX-215 2-Way Top 300W

Rated power:   300 W RMS
Program power:   600 W
LF speaker:    38 cm bass/mids (15″) with 76 mm voice coil
HF speaker:    4.5 cm compression driver (1.75″)
Connection:   2 x Speaker
Sensititvity:   94 dB
Frequency range:   50 – 20000 Hz
Number of bass-woofer:   1 Stück
Size of woofer:   (15″) ca. 38 cm
Material:   MDF (Medium-density fibreboard)
Loudspeaker control (Impedanz):   8 Ohm
Weight:   23.40 kg
Width:   48,5 cm
Depth:   48 cm
Height:   75 cm

11039044 OMNITRONIC AZX-118 PA Subwoofer 450W

Rated power:   450 W RMS
Program power:   900 W
Connection:    2 Speaker sockets
Sensitivity:   95 dB
Impedance:   8 ohms
Dimensions (H x W x D):   665 x 665 x 590 mm
Size of woofer:   (18″) ca. 46 cm
Number of bass-woofer:   1 Stück
Frequency range:   40 – 250 Hz
Material:   MDF (Medium-density fibreboard)
Loudspeaker control (Impedanz):   8 Ohm
Weight:   31.30 kg
