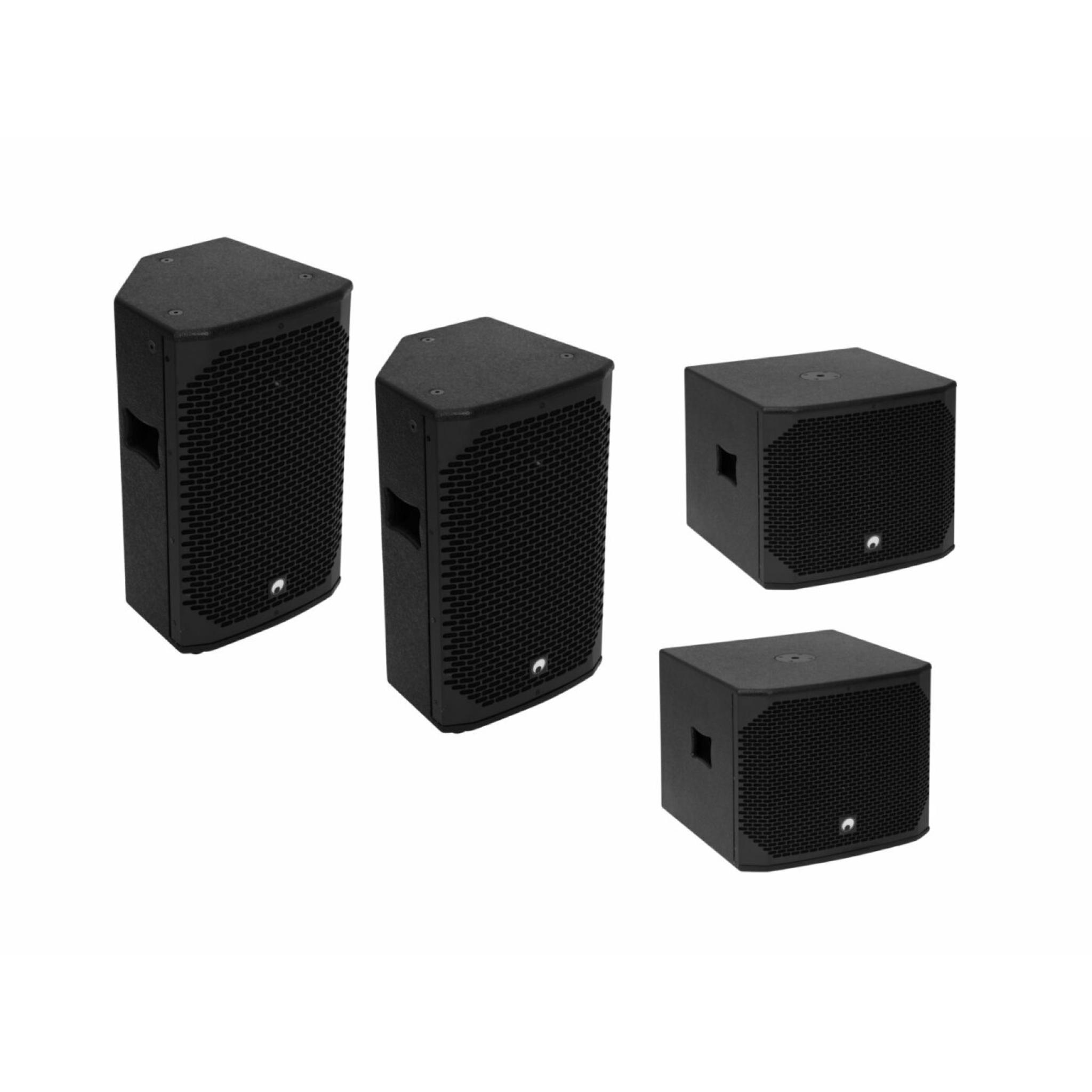

Omnitronic PA Set AZX passive M

Beschrijving

11039024 OMNITRONIC AZX-210 2-Way Top 200W

Passive speaker with 10″ woofer, 1″ driver and 200 W RMS

• 2-way bass-reflex system with 25 cm woofer and 2.5 cm titan driver
• Speaker connections
• Stable MDF housing with protective grille and handles
• Dual flange with 0° and 5° tilt angle enables flexible positioning
• M10 threaded inserts for suspended installation
• Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

11039036 OMNITRONIC AZX-112 PA Subwoofer 350W

12″ bassreflex subwoofer with 350 W RMS, 8 ohms

• 30 cm (12″) bass speaker with 63 mm voice coil
• Parallel Speaker connectors
• M20 metal flange for mounting top speakers
• Carrying handles
• Housing made of 15 mm MDF
• Scratch-resistant lacquer surface
• Impact-resistant steel grille with acoustic foam

11039024 OMNITRONIC AZX-210 2-Way Top 200W

Rated power:   200 W RMS
Program power:   400 W
LF speaker:    25 cm bass/mids (10″) with 50 mm voice coil
HF speaker:    2.5 cm compression driver (1″)
Connection:   2 x Speaker
Sensititvity:   93 dB
Frequency range:   60 – 18000 Hz
Number of bass-woofer:   1 Stück
Size of woofer:   (10″) ca. 25 cm
Material:   MDF (Medium-density fibreboard)
Loudspeaker control (Impedanz):   8 Ohm
Weight:   13.10 kg
Width:   37 cm
Depth:   36 cm
Height:   58,5 cm

11039036 OMNITRONIC AZX-112 PA Subwoofer 350W

Rated power:   350 W RMS
Program power:   700 W
Connection:    2 Speaker sockets
Sensitivity:   93 dB
Impedance:   8 ohms
Dimensions (H x W x D):   575 x 500 x 450 mm
Size of woofer:   (12″) ca. 30 cm
Number of bass-woofer:   1 Stück
Frequency range:   40 – 250 Hz
Material:   MDF (Medium-density fibreboard)
Weight:   20.10 kg
