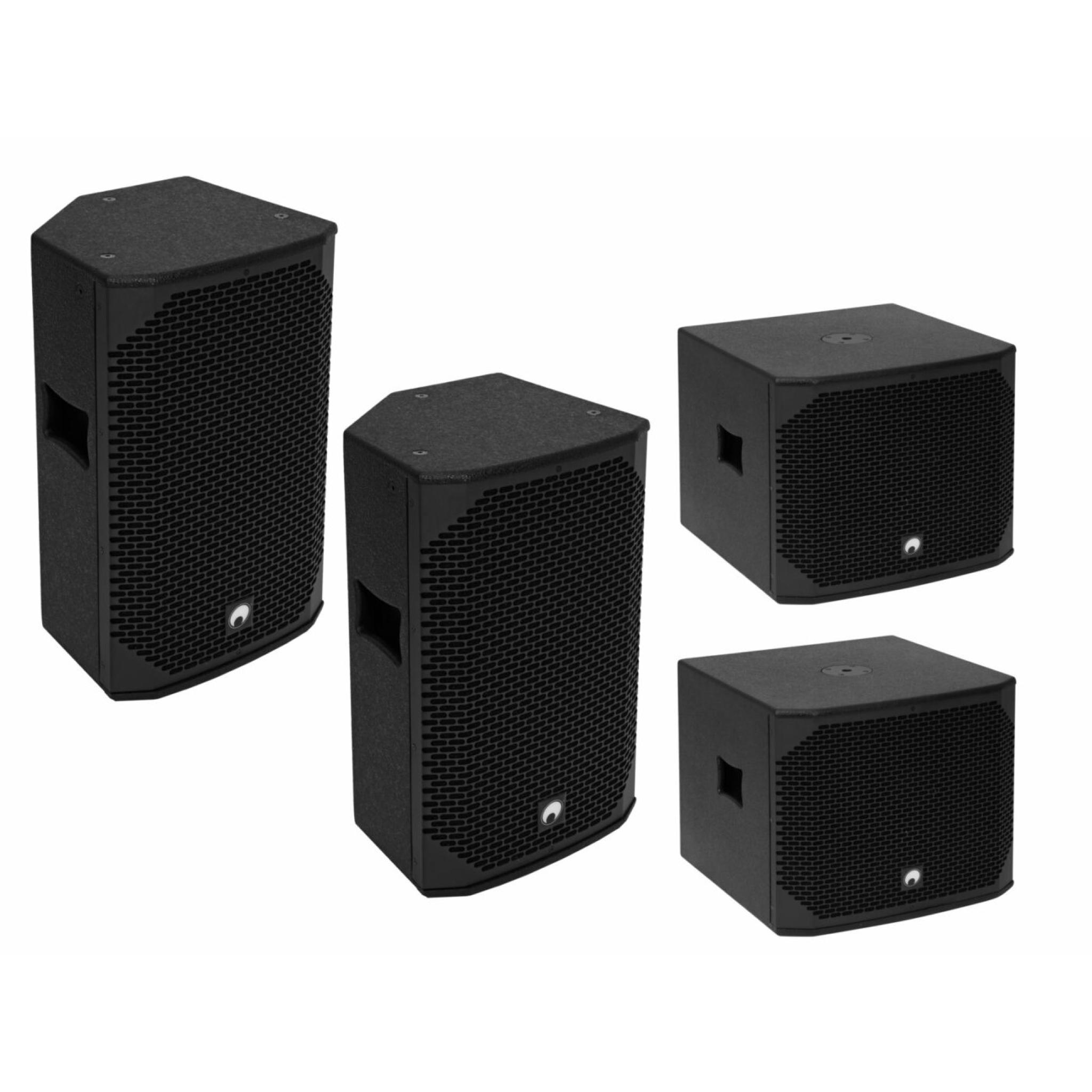

Omnitronic PA Set AZX passive L

Beschrijving

11039028 OMNITRONIC AZX-212 2-Way Top 200W

Passive speaker with 12″ woofer, 1.35″ driver and 200 W RMS

• 2-way bass-reflex system with 30 cm woofer and 3.5 cm titan driver
• Speaker connections
• Stable MDF housing with protective grille and handles
• Dual flange with 0° and 5° tilt angle enables flexible positioning
• M10 threaded inserts for suspended installation
• Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

11039040 OMNITRONIC AZX-115 PA Subwoofer 400W

15″ bassreflex subwoofer with 400 W RMS, 8 ohms

• 38 cm (15″) bass speaker with 63 mm voice coil
• Parallel Speaker connectors
• M20 metal flange for mounting top speakers
• Carrying handles
• Housing made of 15 mm MDF
• Scratch-resistant lacquer surface
• Impact-resistant steel grille with acoustic foam

11039028 OMNITRONIC AZX-212 2-Way Top 200W

Rated power:   200 W RMS
Program power:   400 W
LF speaker:    30 cm bass/mids (12″) with 50 mm voice coil
HF speaker:    3,5 cm compression driver (1.35″)
Connection:   2 x Speaker
Sensititvity:   94 dB
Frequency range:   55 – 18000 Hz
Number of bass-woofer:   1 Stück
Size of woofer:   (12″) ca. 30 cm
Material:   MDF (Medium-density fibreboard)
Loudspeaker control (Impedanz):   8 Ohm
Weight:   17.10 kg
Width:   43 cm
Depth:   40,5 cm
Height:   67 cm

11039040 OMNITRONIC AZX-115 PA Subwoofer 400W

Rated power:   400 W RMS
Program power:   800 W
Connection:    2 Speaker sockets
Sensitivity:   94 dB
Impedance:   8 ohms
Dimensions (H x W x D):   600 x 580 x 520 mm
Size of woofer:   (15″) ca. 38 cm
Number of bass-woofer:   1 Stück
Frequency range:   40 – 250 Hz
Weight:   24.10 kg
Material:   MDF (Medium-density fibreboard)
Loudspeaker control (Impedanz):   8 Ohm
