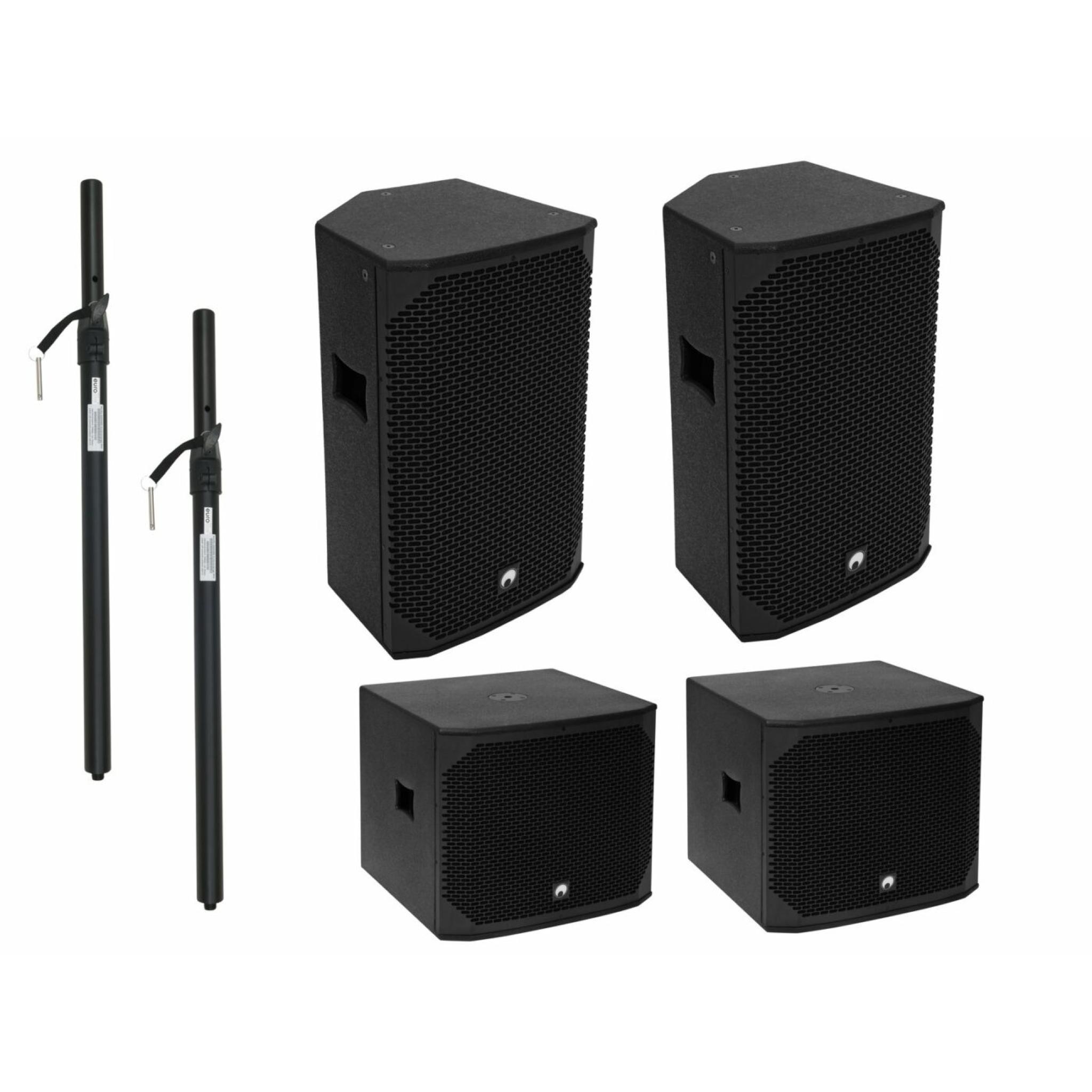

Omnitronic PA Set AZX actief L – 2×18” 2×15”top geluidsset

Beschrijving

11039046 OMNITRONIC AZX-118A PA Subwoofer active 400W

Active 18″ PA bassreflex subwoofer, 400 W

• 46 cm (18″) bass speaker with 76 mm voice coil
• Class D amplifier with 400 W
• XLR inputs and parallel outputs L/R
• XLR output L/R with high-pass filter
• Adjustable crossover frequency 80-200 Hz
• Phase reversal switch
• Limiter for overload protection
• Limit, signal and power LED
• M20 metal flange for top speakers
• Carrying handles
• Housing made of 15 mm MDF
• Scratch-resistant lacquer surface
• Impact-resistant steel grille with acoustic foam

11039034 OMNITRONIC AZX-215A 2-way top active 350W

Active speaker with 15″ woofer, 1.75″ titanium driver, LF 300 W RMS, HF 50 W RMS

• 2-way bassreflex enclosure with 38 cm woofer and 4.5 cm titanium driver
• Class D biamp amplifier (LF 400 W, HF 50 W)
• Balanced signal input XLR/6.3 mm jack, switchable mic/line
• XLR output for linking further active speaker systems
• Master control with 2-band EQ
• HF adjustment -4 dB, -2 dB, 0 dB
• Limiter for overload protection
• Limit, signal and power LED
• Housing made of 15 mm MDF
• Scratch-resistant lacquer surface
• Carrying handles
• Impact-resistant steel grille with acoustic foam
• M10 threaded inserts for suspended installation
• Dual flange with 0° and 5° tilt angle enables flexible positioning
• Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
• Master Equalizer: 1 x 2 band tone control

60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20

Variable distance tube with M20 thread, height adjustable 75-135 cm

• Connecting tube for satellite systems
• Height adjustable 75-135 cm
• Locking screw and bolt
• M20 thread
• Powder-coated steel version
• Color: black

11039046 OMNITRONIC AZX-118A PA Subwoofer active 400W

Power supply:   230 V AC, 50 Hz
Power consumption:   650 W
Amplifier power:   400 W RMS
Signal input:   XLR L/R
Parallel output:   XLR L/R
High-pass output:   XLR L/R
Sensitivity:   95 dB
Crossover frequency:   80-200 Hz
Acoustic loading:   Bassreflex
Amplifier:   Class D
Dimensions (W x D x H):   665 x 665 x 590 mm
Size of woofer:   (18″) ca. 46 cm
Number of bass-woofer:   1 Stück
Frequency range:   40 – 250 Hz
Material:   MDF (Medium-density fibreboard)
Weight:   33.65 kg

11039034 OMNITRONIC AZX-215A 2-way top active 350W

Power supply:   230 V AC, 50 Hz
Power consumption:   650 W
Amplifier power:   300 W RMS LF, 50 W RMS HF
LF speaker:    38 cm bass/mids (15″) with 76 mm voice coil
HF speaker:    4,5 cm compression driver (1.75″)
Input mic/line:   combination XLR/6.3 mm jack, bal.
Output line:   XLR, bal.
Frequency range:   50 – 20000 Hz
Number of bass-woofer:   1 Stück
Size of woofer:   (15″) ca. 38 cm
Material:   MDF (Medium-density fibreboard)
Weight:   25.45 kg
Width:   48,5 cm
Depth:   48 cm
Height:   75 cm

60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20

Maximum load:   30 kg
Adjustable height:   75-135 cm
Tube diameter:   41/35 mm
Weight:   1,6 kg
Max. height:   1.35 m
Min. height:   0.75 m
Maximum carrying capacity:   30 kg
Color:   Black
Pick-up:   Flange system 35mm %2
