-26%

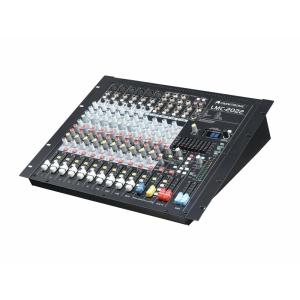

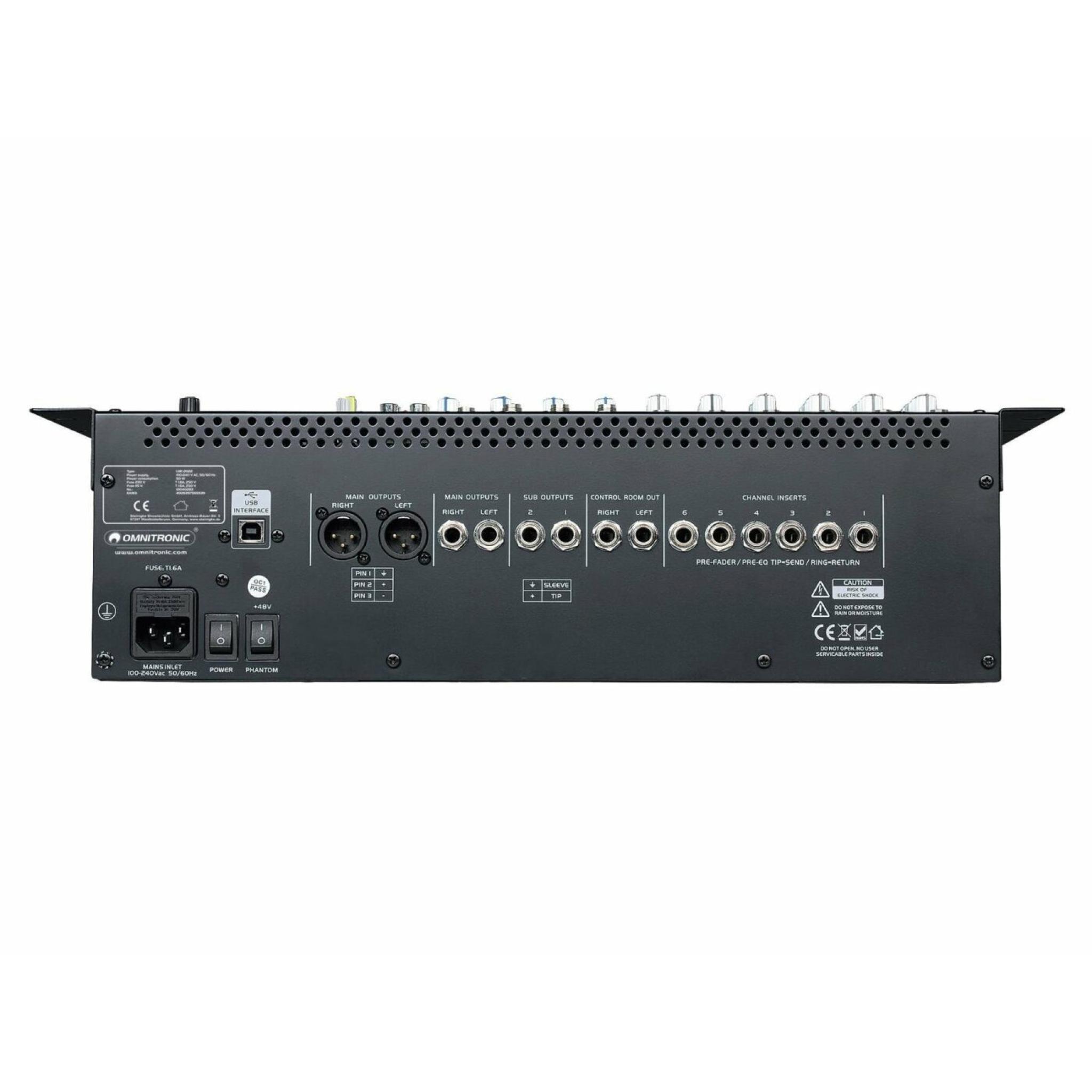

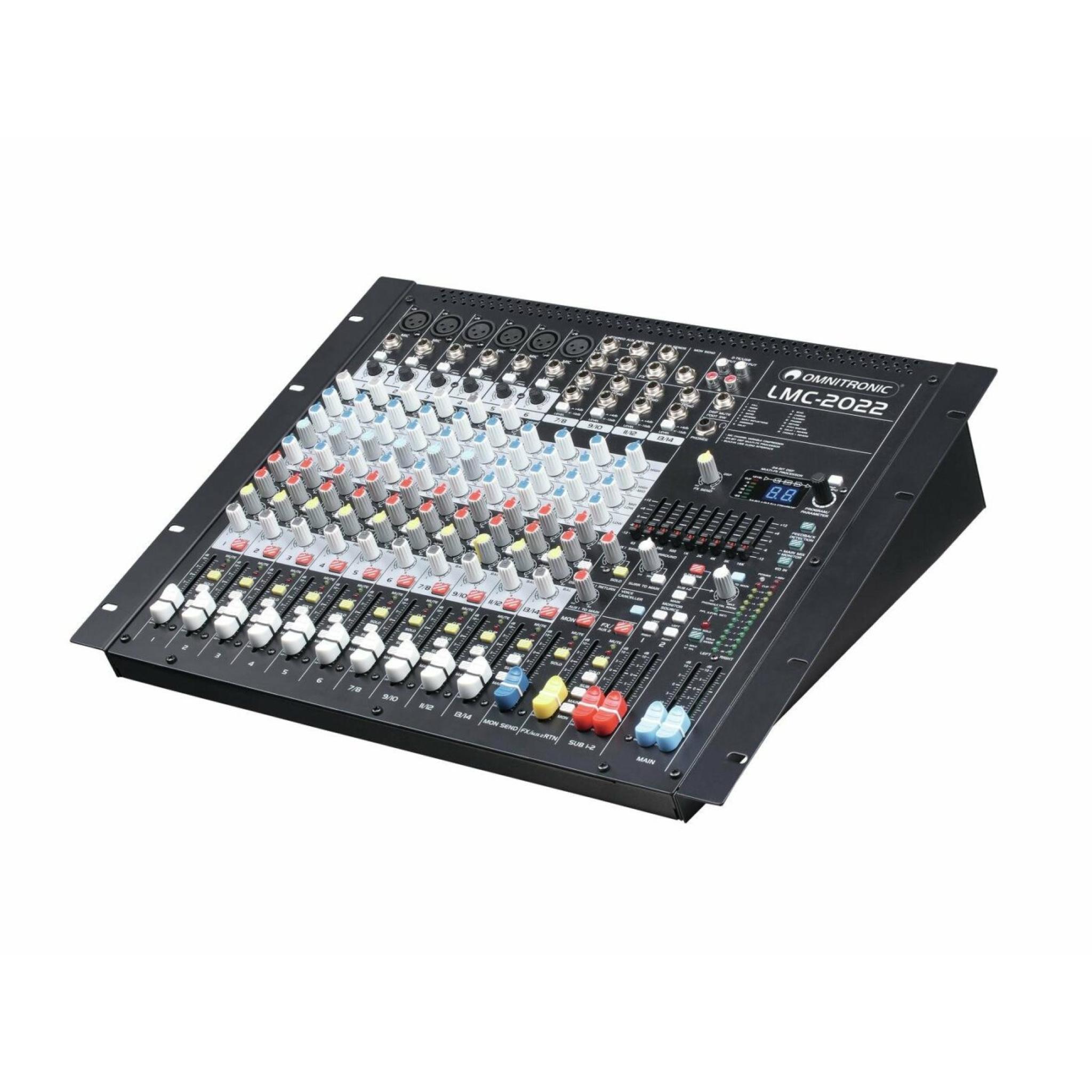

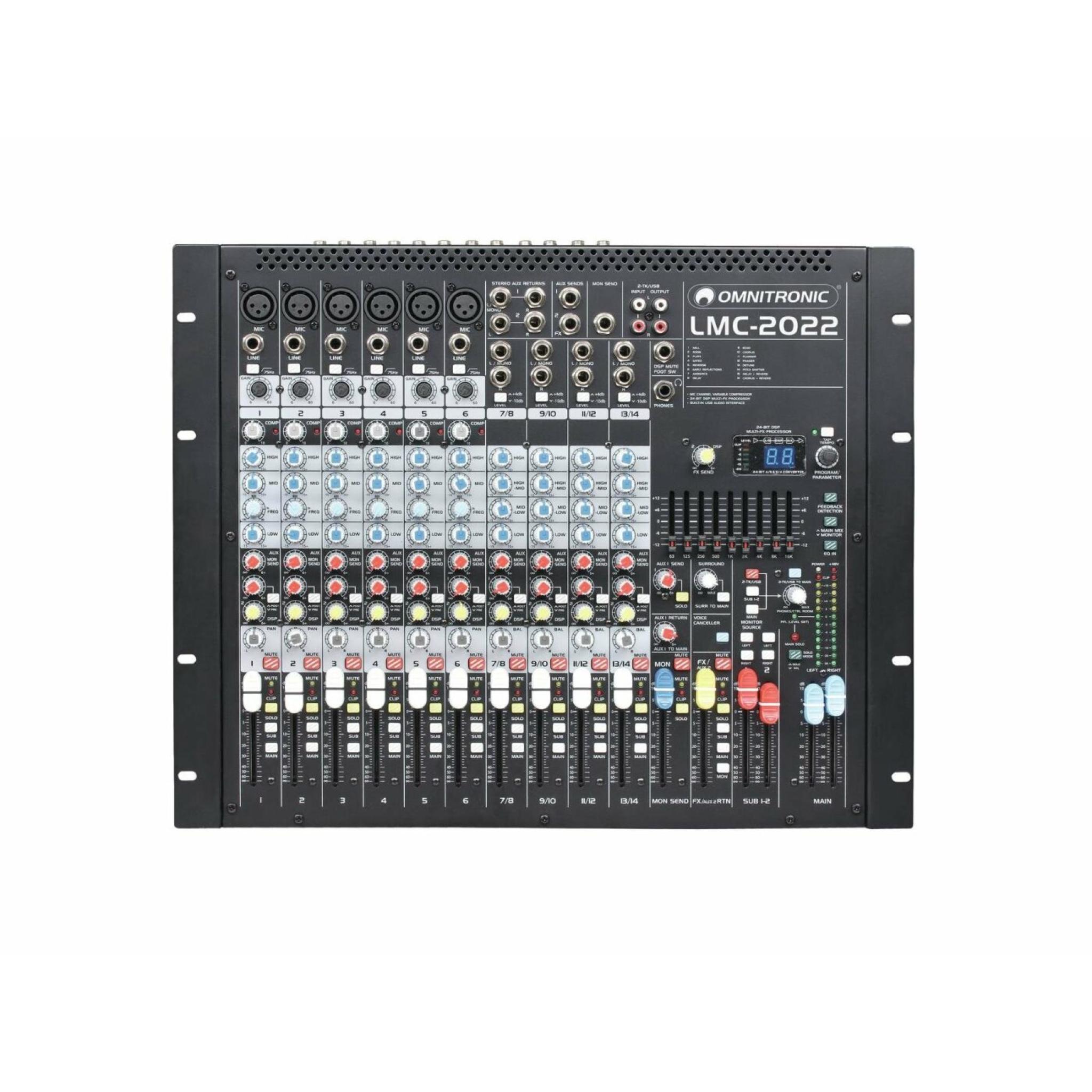

Omnitronic LMC-2022FX USB Mengpaneel
Oorspronkelijke prijs was: €534,31.€393,19Huidige prijs is: €393,19.
Op voorraad nu besteld uiterlijk 16 april in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 10040283
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
Professional audio mixer with British-style EQ, compressor, effect unit and USB interface
- 6 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
- 6 inserts for flexible connection of outboard equipment on each mono channel
- 4 stereo input channels with 4-way EQ, level selection and balance control
- State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
- Exceptional British EQs for warm and musical sound
- Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
- 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- Intelligent feedback detection system makes eliminating feedback frequencies easy
- Voice canceller filters out vocal portions for karaoke applications
- Incredible 3D stereo surround effect for an enhanced listening experience
- 9-band stereo graphic EQ with illuminated faders allows tuning monitor or main mixes
- 3 aux sends per channel: aux 1 pre-fader for monitoring, aux 2 pre/post-fader switchable for monitoring/FX applications, aux 3 post fader for internal FX
- 2 subgroups with separate outputs for added routing flexibility
- 2 stereo aux returns with flexible routing
- Clip LEDs on all channels
- Routing switches for mute, main mix, subgroup and solo/PFL on all channels
- Balanced main mix outputs with 6.3 mm jack and gold-plated XLR connectors
- Control room/phones outputs with multi-input source matrix
- CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
- Precise 12-digit level meter
- BNC lamp socket
- FX mute with remote control via footswitch
- +48 V phantom power, can be switched centrally
- Incl. brackets for rack installation
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| Inputs: | |
| Mic: | XLR balanced; 2.6 kohms |
| Line (mono): | 6.3 mm jack balanced; 10 kohms, |
| Line (stereo): | 6.3 mm jack L/R balanced; 20 kohms |
| 2-Track: | RCA L/R; 10 kohms |
| Aux Return: | 6.3 mm jack L/R balanced; 10 kohms |
| Inserts: | 6.3 mm jack unbalanced; 10 kohms |
| Outputs: | |
| Master: | XLR and 6.3 mm jack L/R balanced; max. +28 dBu |
| ALT 3-4: | 6.3 mm jack balanced; max. +22 dBu |
| Control Room: | 6.3 mm jack L/R unbalanced; max. +22 dBu |
| Aux Send: | 6.3 mm jack L/R unbalanced; max. +22 dBu |
| Tape Out: | RCA L/R; max. +22 dBu |
| Mon Send: | 6.3 mm jack L/R unbalanced; max. +22 dBu |
| Headphones output: | 6.3 mm jack unbalanced; max. +19 dBu |
| Headphones impedance: | >8 ohms |
| USB interface: | type B, 16 bit/48 kHz |
| Frequency range: | 20-20000 Hz |
| Distortion: | 0.05 % |
| S/N ratio: | 110 dB |
| Crosstalk: | 89 dB |
| Low Cut: | 75 Hz, 18 dB/octave |
| Phantom power: | +48 V |
| Tone control mono channels: | |
| Treble: | ±15 dB at 12 kHz |
| Middle: | ±15 dB at 100-800 Hz |
| Bass: | ±15 dB at 80 Hz |
| Tone control stereo channels: | |
| Treble: | ±15 dB at 12 kHz |
| Low middle: | ±15 dB at 3 kHz |
| High middle: | ±15 dB at 500 Hz |
| Bass: | ±15 dB at 80 Hz |
| Dimensions (L x W x H): | 400 x 480 x 127 mm (incl. rack brackets) |
| Weight: | 6.1 kg |
Extra informatie
Extra informatie
| Gewicht | 7,25 kg |
|---|---|
| Afmetingen | 0,2000 × 0,4700 × 0,4800 m |
| Internal effects | Yes |
| Weight kg | 6,1 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption W | 50 |
| Frequency range Hz | 20 – 20000 |
| Master Equalizer | 1 x Graphic equalizer 9-band Stereo |
