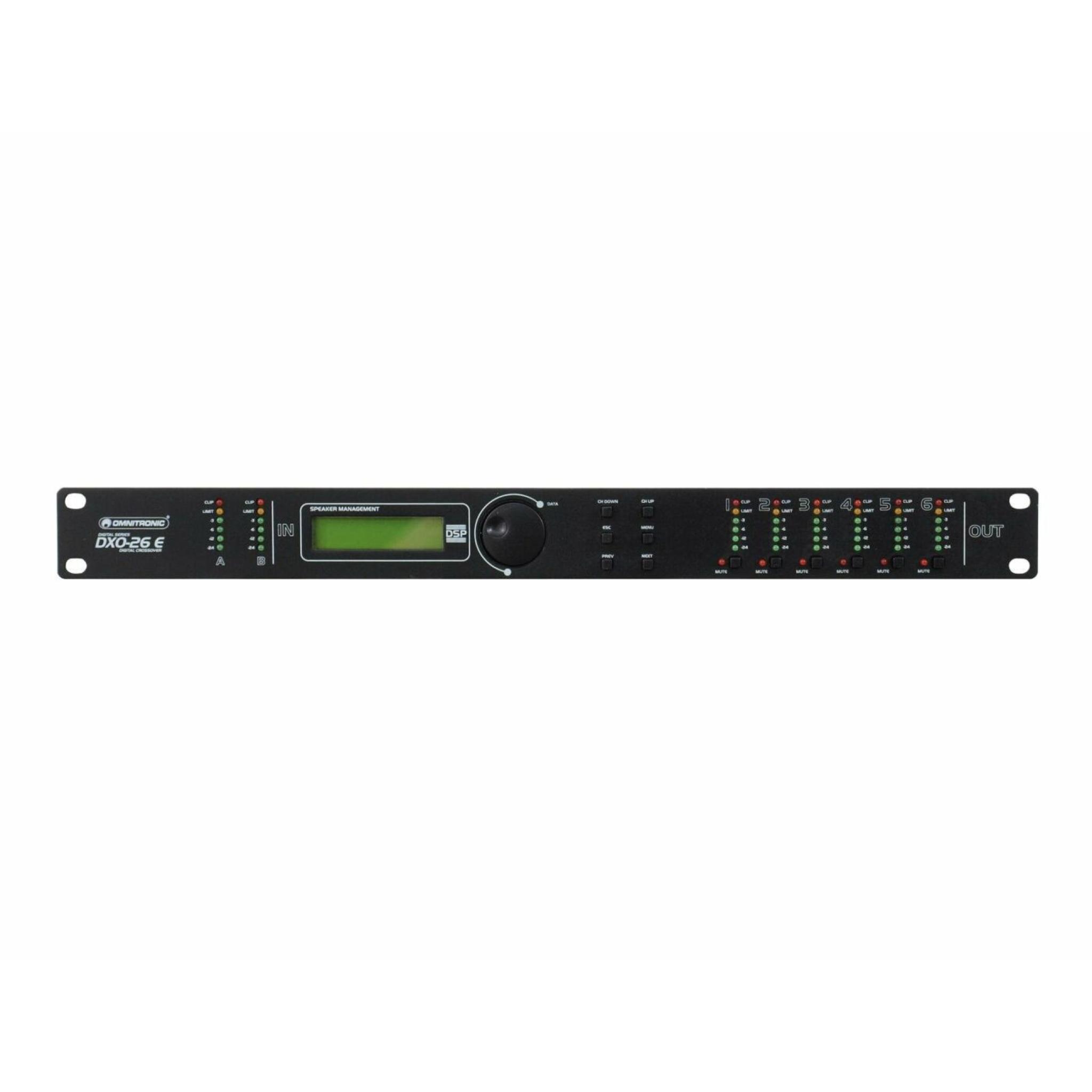

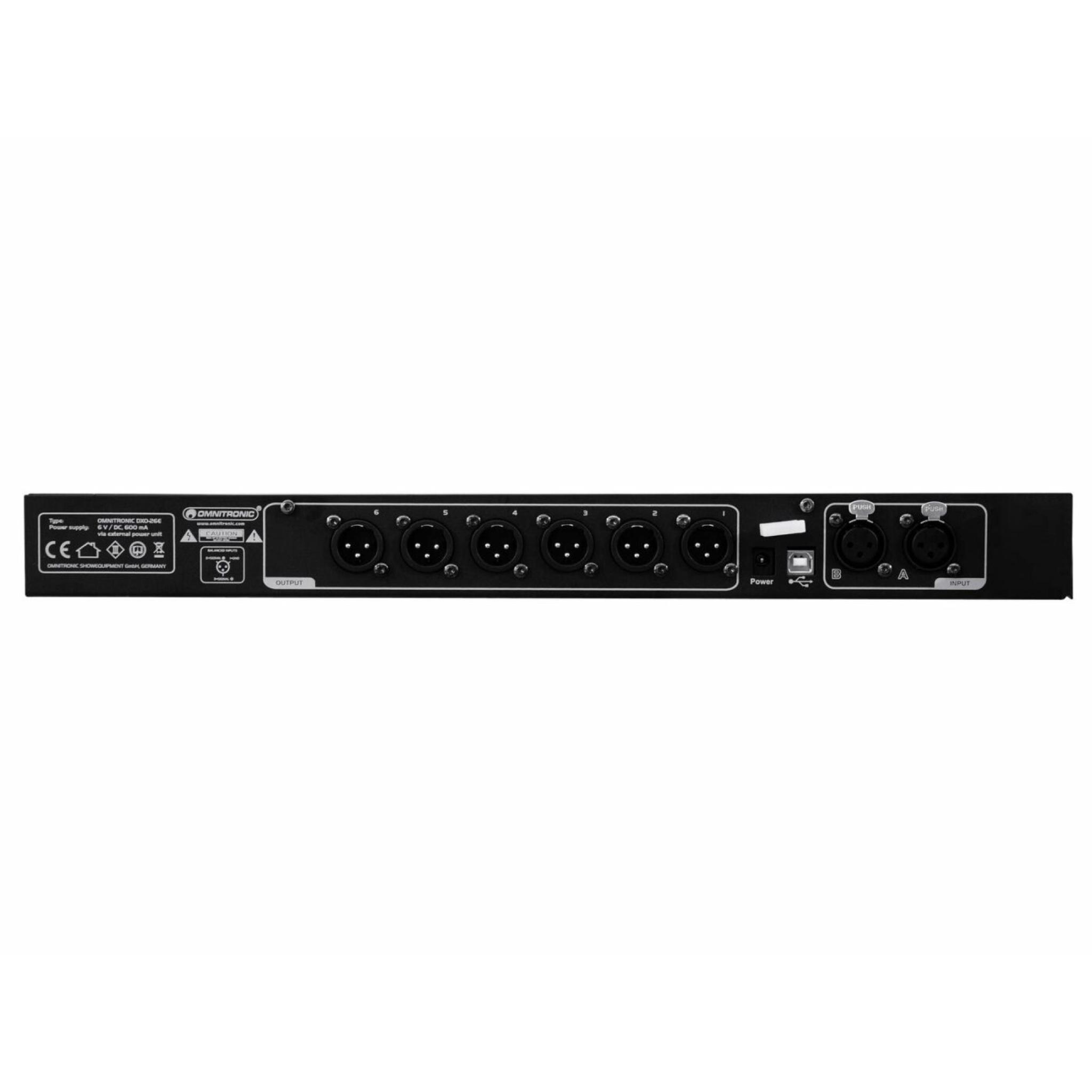

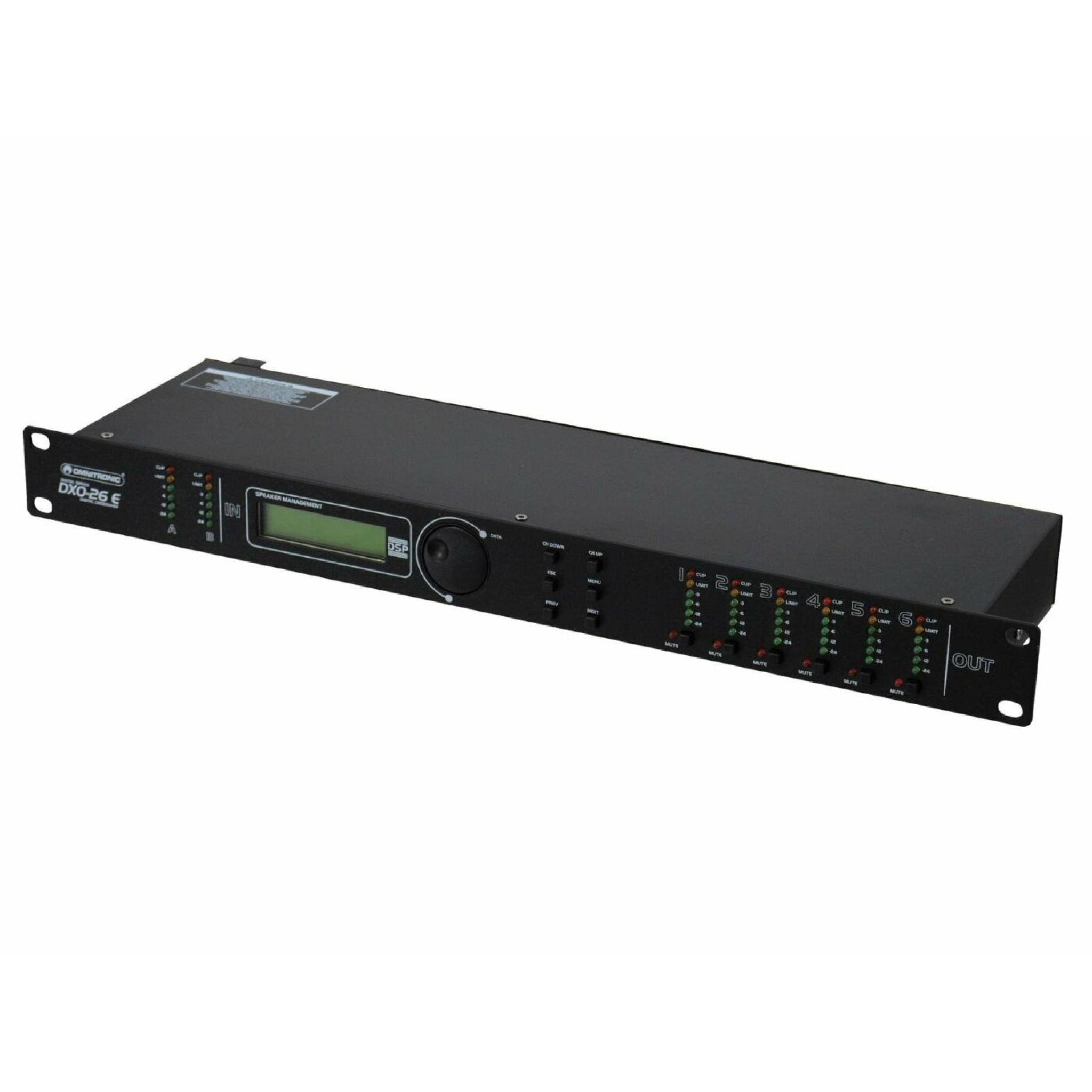

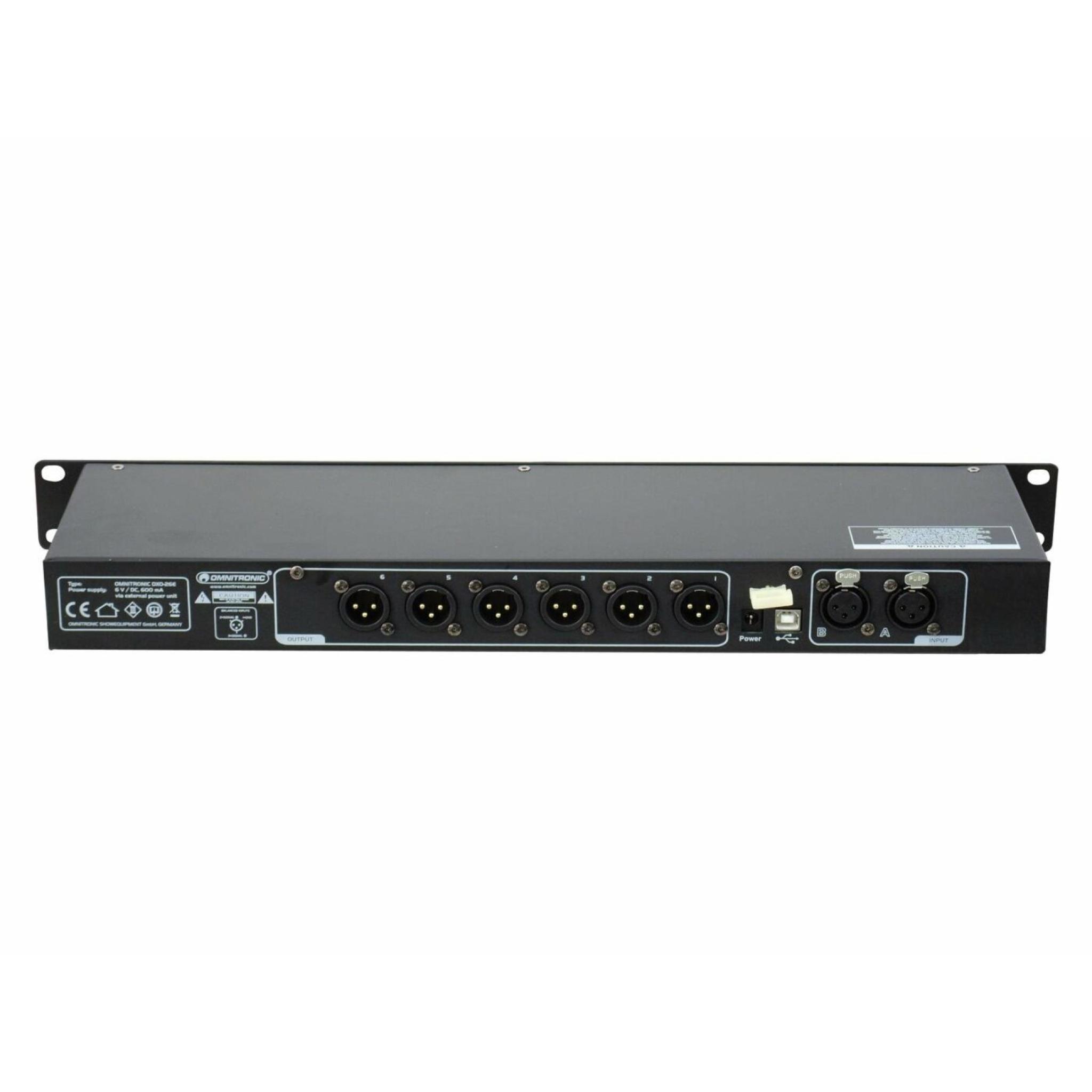

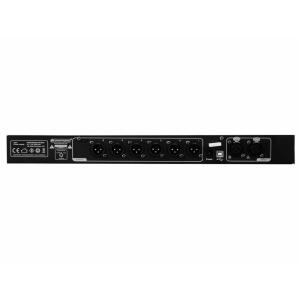

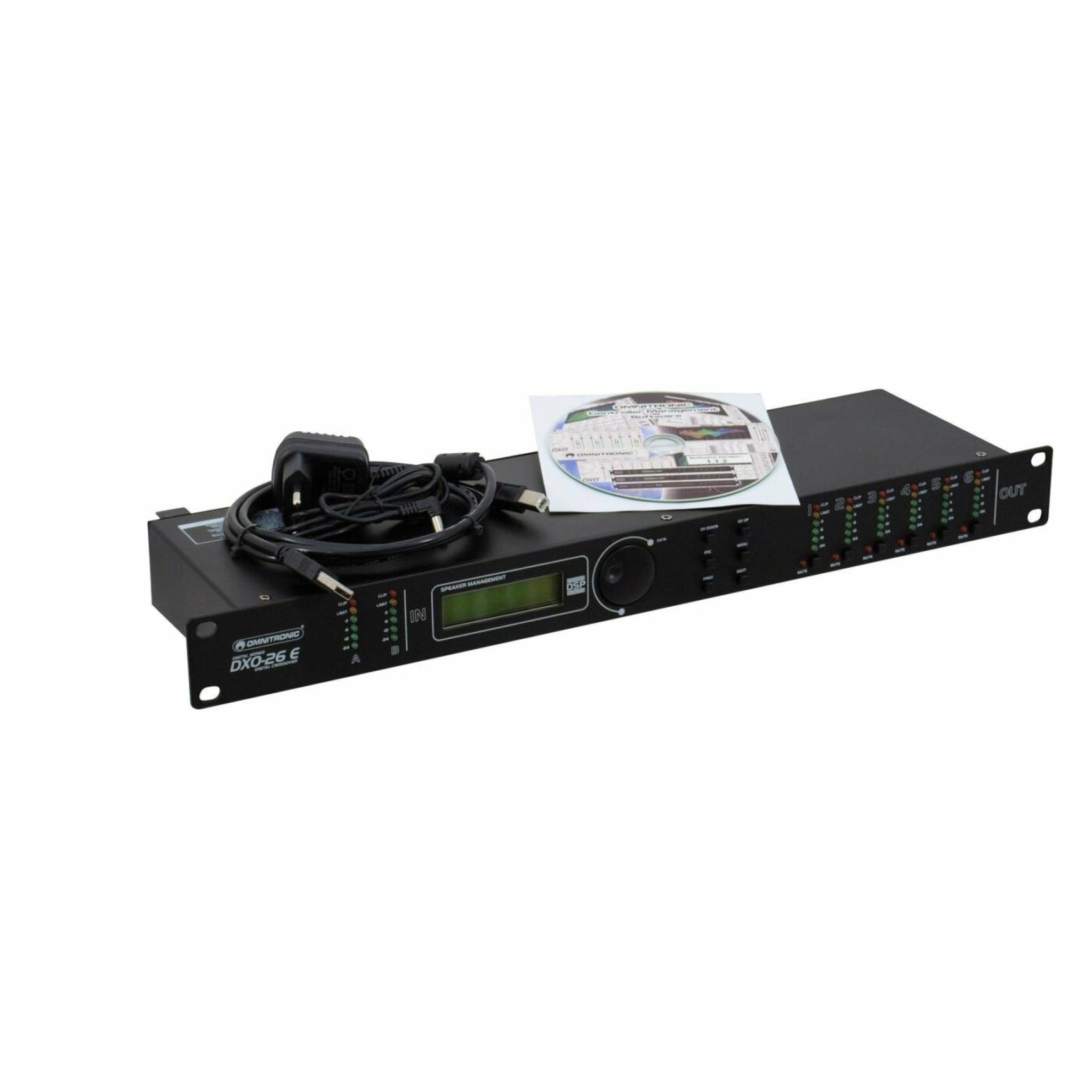

Omnitronic DXO-26E Digital Controller
Oorspronkelijke prijs was: €355,81.€261,62Huidige prijs is: €261,62.
Op voorraad nu besteld uiterlijk 22 april in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 10356341
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
Digital stereo active crossover with 2 inputs and 6 outputs, incl. software
- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 6 analog outputs (XLR)
- Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
- Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
- Up to 30 user presets storable in the device via software
- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
- Mute switch with LED indicator per output
- 7-band parametric EQ per output
- Up to 7 ms signal delay adjustable for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase
- Lock function for protecting the program settings
- Rack installation, 1 U
- Windows XP, Vista, 7 and Mac OS X 10.5.8 and better
| Power supply: | 100-240 V AC, 50/60 Hz |
| via power unit included in the delivery | |
| Inputs: | 2 x XLR, balanced |
| Maximum input level: | +22 dBu |
| Input impedance: | 10 kohms |
| Dynamic range: | 114 dBA |
| Outputs: | 6 x XLR, balanced |
| Output impedance: | 50 ohms (electronically balanced) |
| Output gain range: | -50 to +12 dB |
| Maximum output level: | +9 dBu |
| Dynamic range: | 110 dBA |
| Sampling frequency: | 67 kHz |
| Frequency range: | 10-30000 Hz |
| Distortion: | 0.005 % |
| Filter types: | Bessel, Butterworth or Linkwitz-Riley |
| Slopes: | 6, 12, 18 or 24 dB/octave |
| Crossover frequency: | 20-20000 Hz |
| Delay: | 0-5 msec |
| Communication: | USB type B |
| Dimensions (WxHxD): | 482 x 44 x 128 mm |
| Weight: | 1.6 kg |
Extra informatie
Extra informatie
| Gewicht | 2 kg |
|---|---|
| Afmetingen | 0,0800 × 0,5200 × 0,2900 m |
| Height cm | 4.4 |
| Weight kg | 3 |
| Depths cm | 12.8 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Frequency range Hz | 10 – 30000 |
