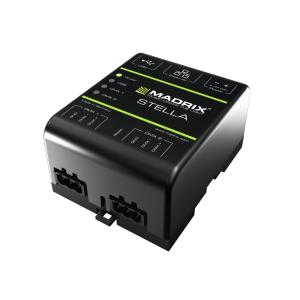

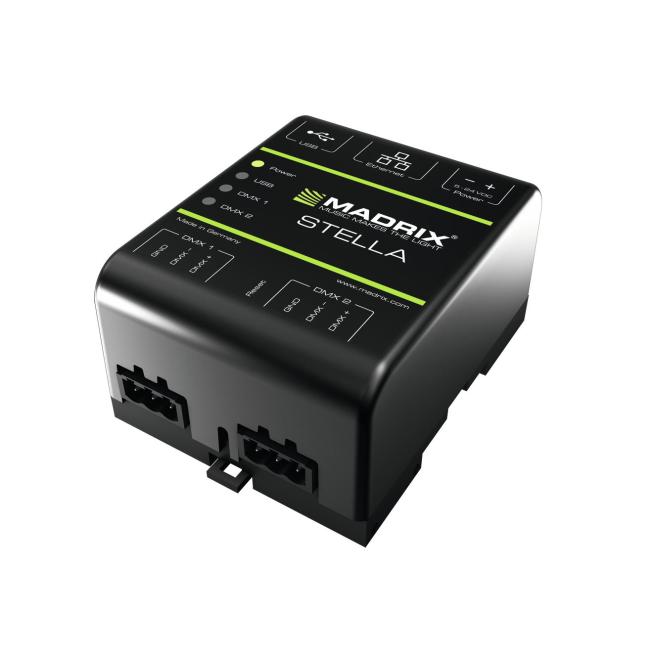

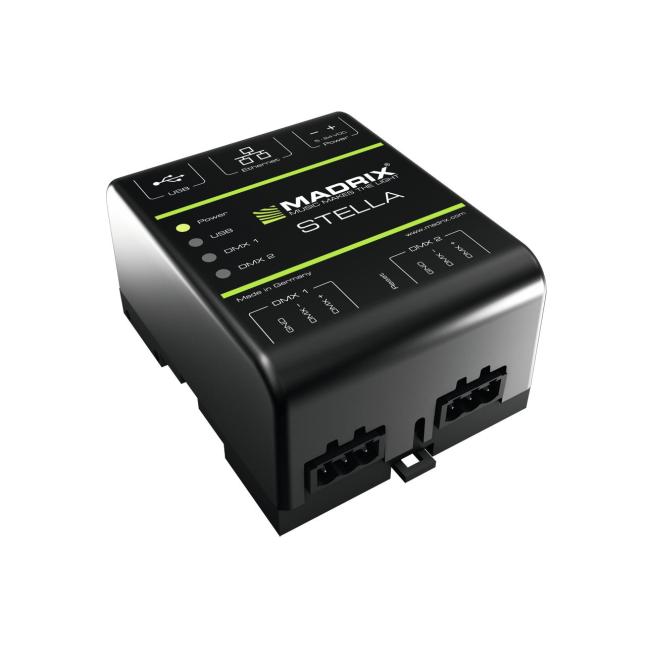

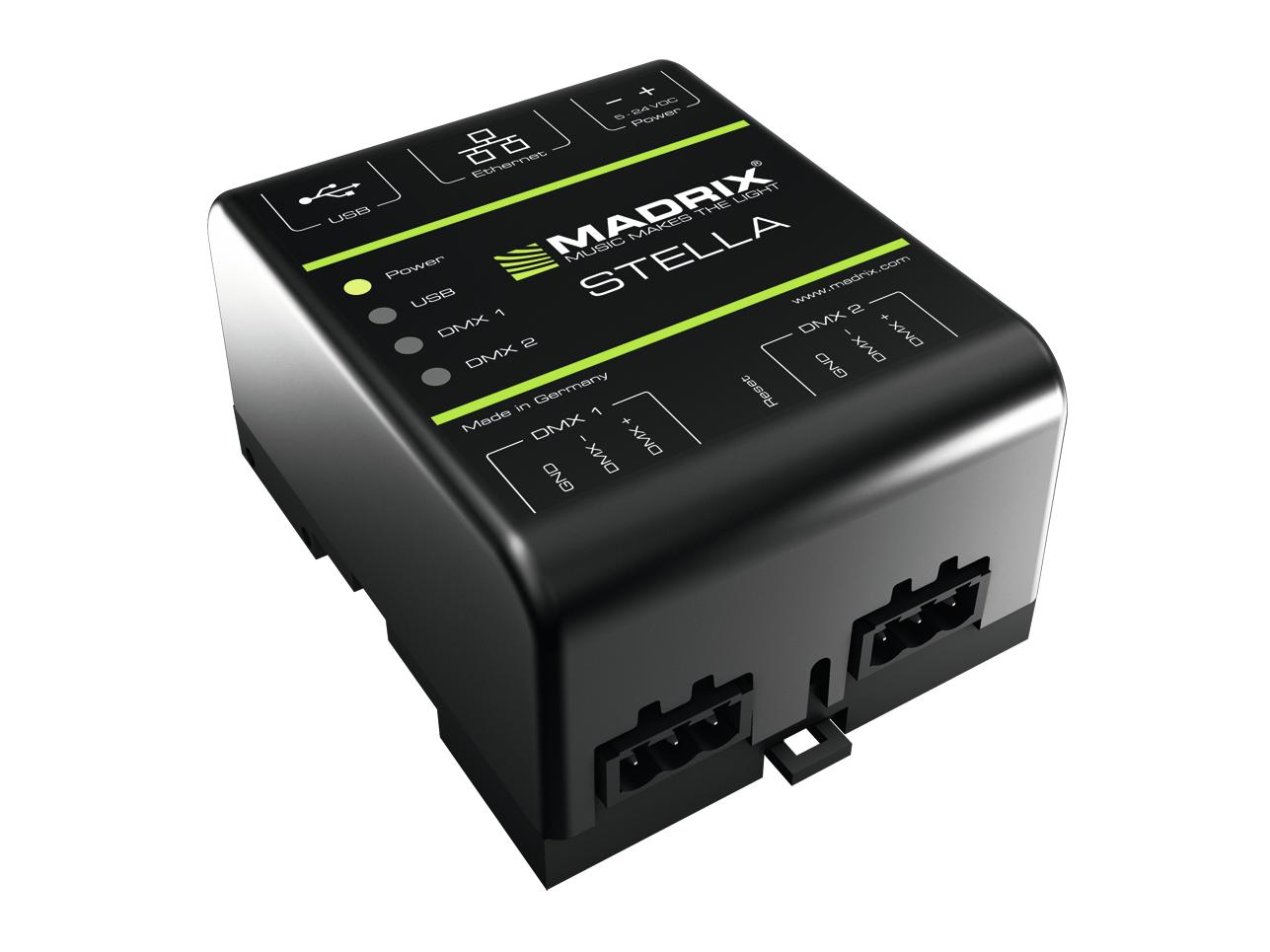

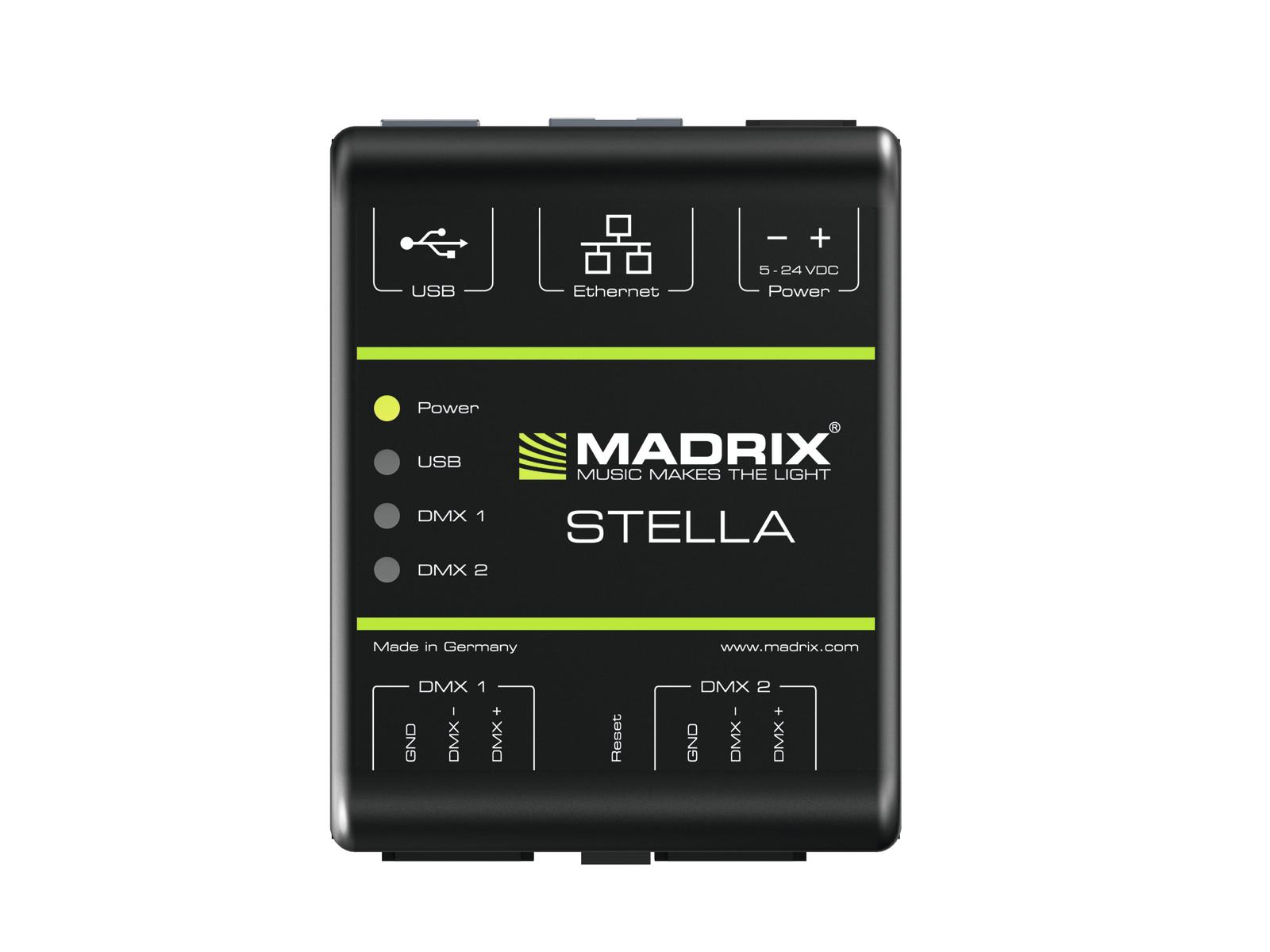

MADRIX STELLA

Beschrijving

USB and Artnet interface to control two DMX universes with Madrix

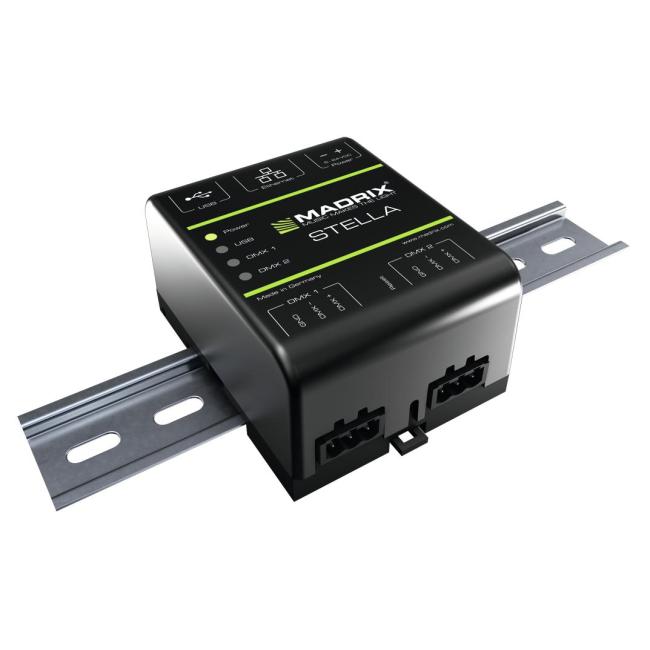

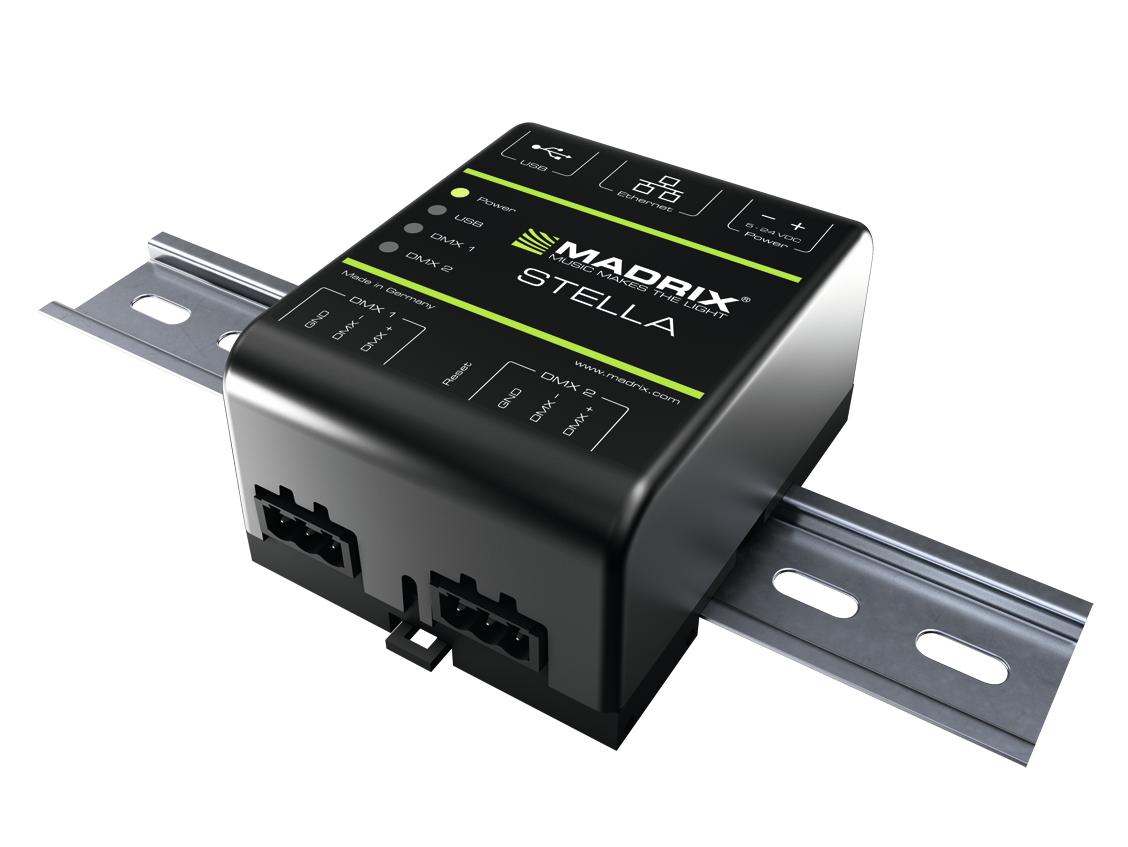

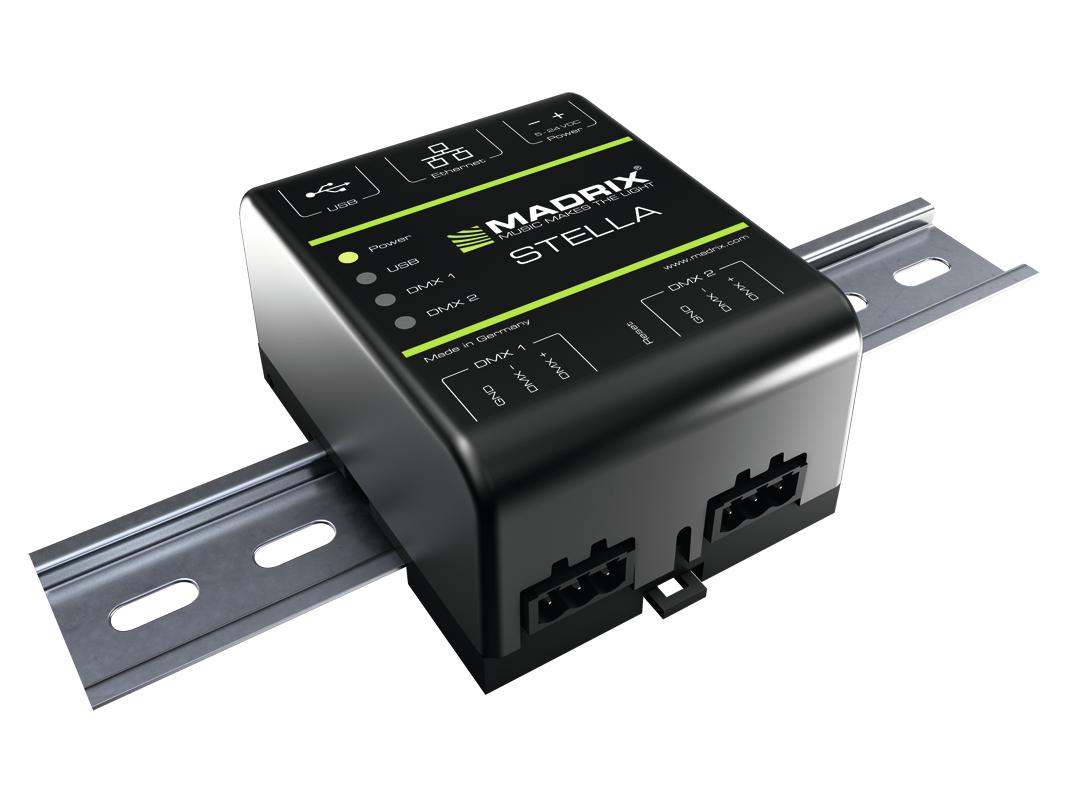

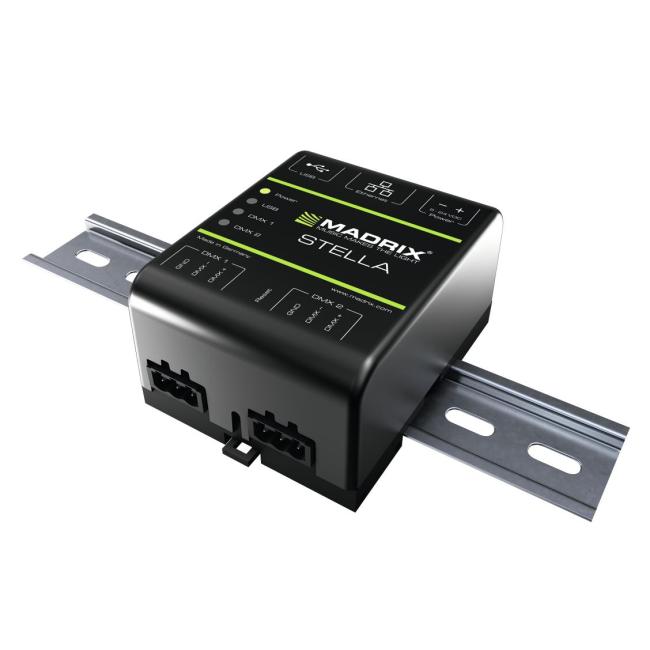

• Is especially suited for solid-state projects as it can be mounted on 35-mm DIN rails or walls via the provided wall-mount brackets

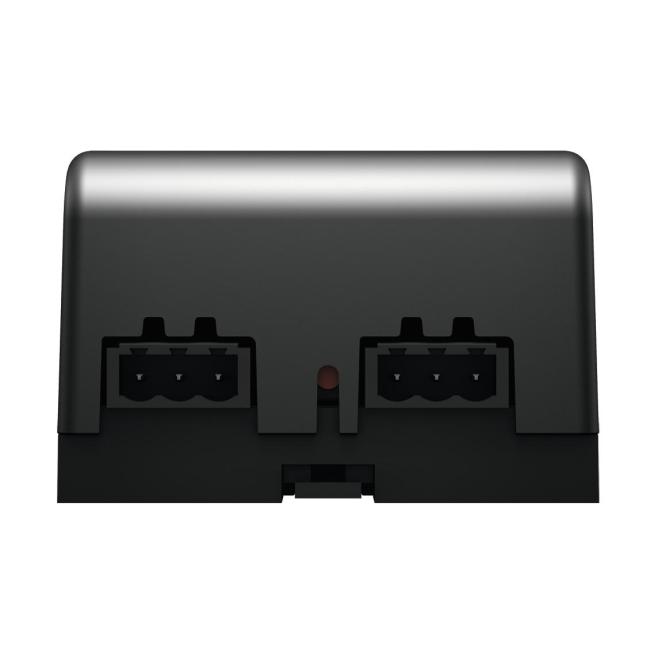

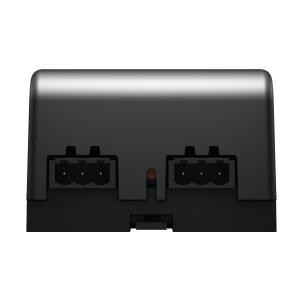

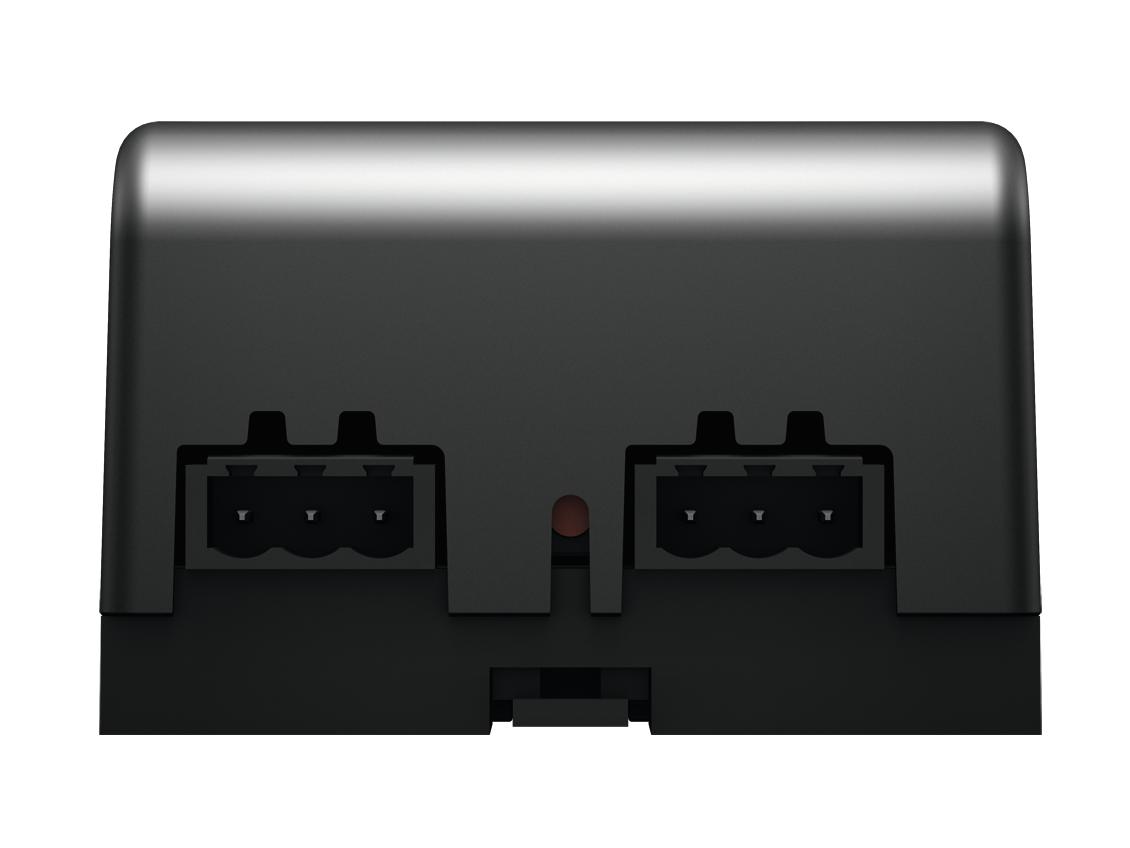

• Eliminates the need for extra XLR connectors and converters: directly connect DMX512 to the device over two 3-pin screw terminals
• Provides flexible power options: over 5 V USB or 5 V to 24 V via screw terminal
• Drives up to 2 DMX universes over 2 ports (1024 DMX channels)
• Each port can either be configured as output or input
• Receives Art-Net over Ethernet network to convert to DMX512 for your LED fixtures
• Can also be used as MADRIX USB interface
• Works great with the MADRIX software with quick and easy installation (sold separately)
• MADRIX Sync Mode: Only MADRIX software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
• Complies with the official Art-Net specifications and can be used as regular Art-Net unit with other consoles, controllers, or software solutions
• Automatic HTP merging for two Art-Net sources
• Built-in web tool for on-device configuration

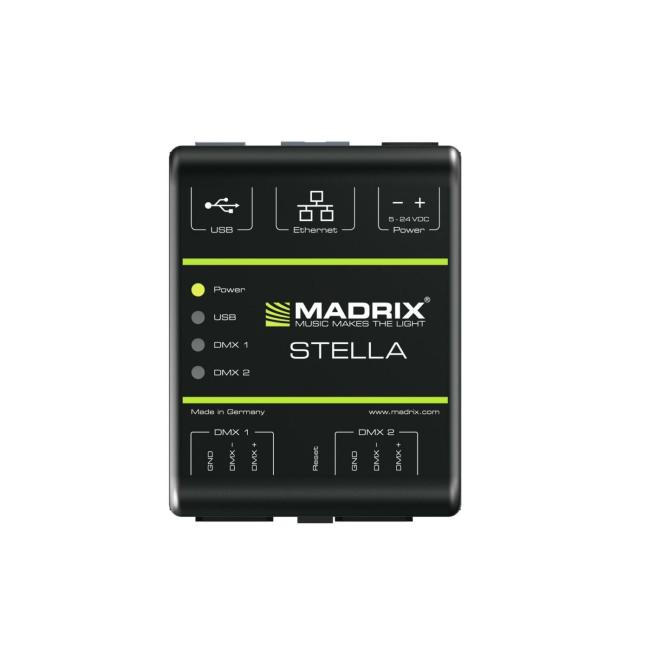

• 6 status LEDs, which can be turned off
• Non-conductive enclosure with IP20 and UL94 V-O flammability rating
• Fanless, low-energy design
• Ready within seconds after startup
• Recommended for any small or large installation
• Multiple devices can be used together without problems
• The firmware can be updated for future features
• MADRIX 3.X minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
• MADRIX 3.X supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
• Installation instructions and MADRIX software available in English, German, Spanish, French, and Simplified Chinese
• Software user manual available in English
• Quick start guide / technical manual available in English and German
• Made in Germany

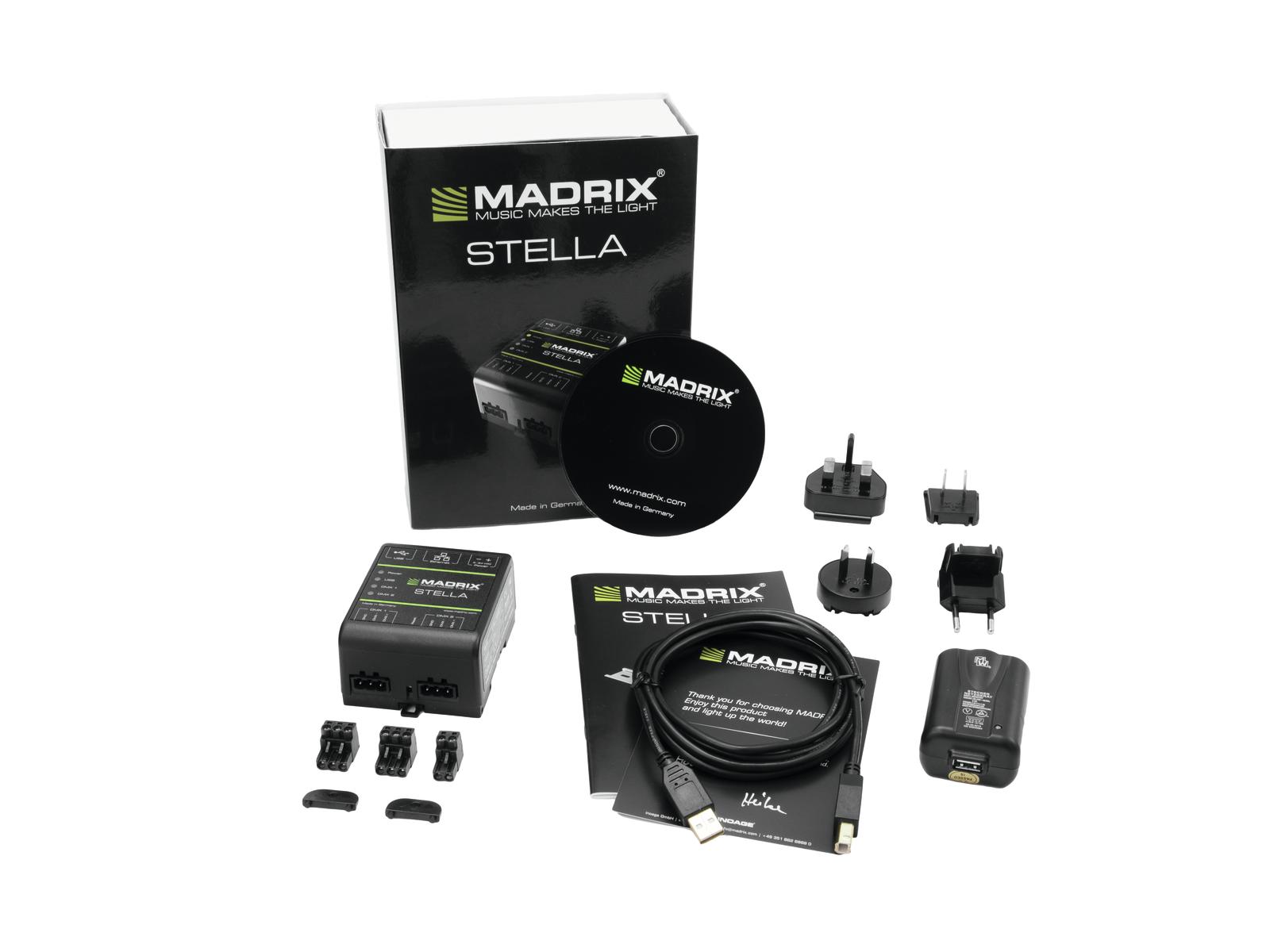

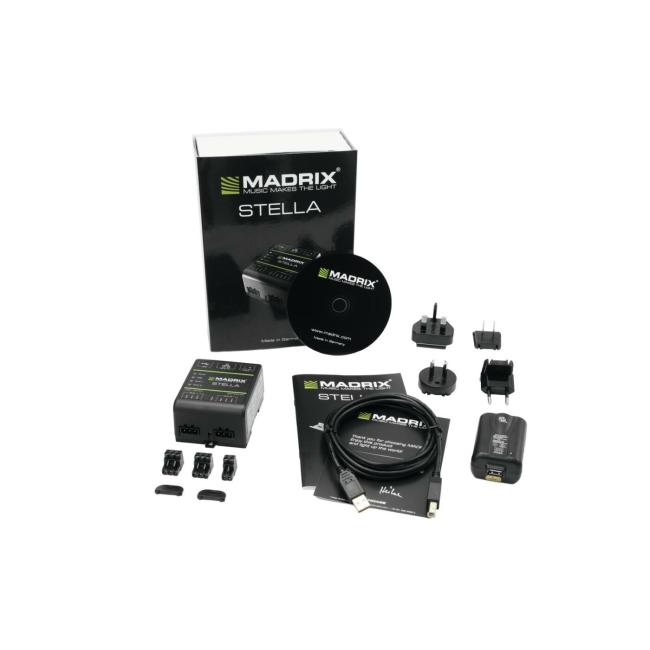

• Package Contents: 1x MADRIX STELLA, 1x Set of screw terminals (2x 3-pin and 1x 2-pin), 1x USB power supply, 1x USB 2.0 cable (certified), 1x World power plug adapters kit, 2x Wall-mount brackets, 1x Quick start guide / technical manual, 1x CD-ROM incl. MADRIX software and USB drivers (software license not included)
• User manuals also available at help.madrix.com
• Free software demo version and more information available at www.madrix.com
• Made in Germany
