USB and Artnet interface to issue two DMX universes over XLR

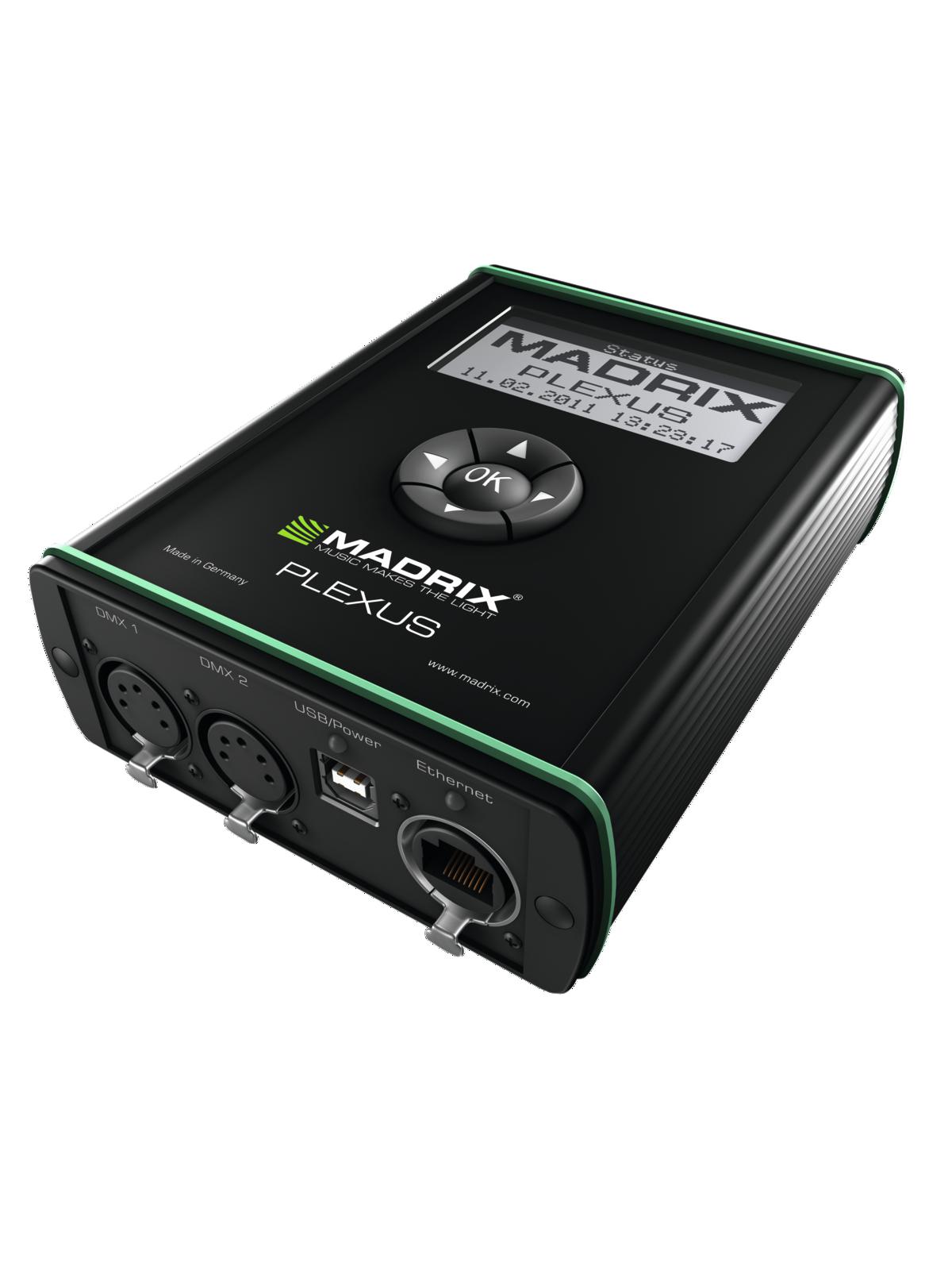

- MADRIX PLEXUS is the next-generation live or stand-alone interface for LED lighting control
- Includes the MADRIX PLEXUS DMX512/Art-Net interface as well as the feature-rich MADRIX software for LED control including software license
- Can be used as live interface or for stand-alone playback of MADRIX light shows and effects from SD card
- Supports also time-controlled stand-alone shows
- Powerful LED lighting control software with endless possibilities to create visual effects and lighting scenes
- 1024 DMX channels can be controlled per device via DMX512 and/or Art-Net
- The MADRIX software license for 1024 DMX channels per device is already included and automatically activated when connected to MADRIX
- Multiple devices can be used together without problems
- Additional Master-Slave Synchronization across all DMX universes for seamless lighting effects on the complete LED installation when using multiple devices
- Features two 5-pin, female NEUTRIK XLR ports and a NEUTRIK etherCON Ethernet network port
- If you want to use DMX-IN, please use a 5-pin XLR male to 5-pin XLR male gender changer
- Large backlit 3 LCD graphics display and 5 on-device control buttons for menu navigation and settings
- A 15-pin, serial extension port offers enhanced connectivity towards external analog or digital devices
- Solid metal enclosure with eye-catching design
- Kensington Security Slot to secure each device
- Full USB 2.0 support, Power over USB, Hot Swapping, and Plug & Play
- MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software
- Allows you to realize all kinds of different LED projects and lighting designs
- A normal PC/laptop can be used for professional LED control
- Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
- The software generates unique effects, visuals, and animations live and in real time
- No additional content is required
- Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, etc.)
- Analyzes incoming audio signals Sound2Light and Music2Light in real time
- New lighting scenes can easily be created in seconds
- Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
- 256 x 256 Storage Places to organize and store effects
- DJ-like operation with 2 decks (Left/Right) and a crossfader
- 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
- Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
- Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
- Supports Time Code from Art-Net, MIDI, SMPTE, and system time
- Remote control available via DMX-IN, Art-Net Remote, MIDI-IN, HTTP (internet browser), CITP
- Accompanying Fixture Editor provided including large fixture library
- Includes various other tools and features (DMX Fader Tool, DMX Watcher, Matrix Generator, Patch Editor, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
- MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
- MADRIX supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
- Installation instructions and software available in English, Spanish, French, and Simplified Chinese
- User manual and quick start guide available in English and German
- On-device menus available in English, German, and Spanish
- Made in Germany
- Free software demo version, user manuals, and more information available at www.madrix.com
- Connectivity: 2x DMX-IN/OUT, 1x RJ45 Ethernet port, 1x Extension port, 1x SD card slot, 1x USB port
- Package Contents: 1x MADRIX PLEXUS, 1x 4 GB SDHC card (inserted into the device), 1x USB power supply, 1x USB cable, 1x World power plug adapters kit, 1x Quick start guide, 1x CD-ROM with MADRIX – software
- Made in Germany
| Power supply: | External |
| Input: | AC 100 V – 240 V, 50/60 Hz input, DC 5.2 V and 1000 mA max. output over USB |
| Power consumption: | 2.5 W max. (500 mA max.) |
| USB port: | USB 2.0, type B plug, Power over USB |
| DMX512: | 2x 512 DMX channels, input or output |
| DMX512 ports: | 5-pin, XLR, female, NEUTRIK |
| Ethernet/Art-Net: | RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON |
| Extension port: | 15-pin, D-Sub, US, female |
| SD card slot: | SD (2 GB max.) and SDHC cards (32 GB max.) supported |
| Case: | Metal enclosure, IP20 |
| Dimensions: | 154 mm x 111 mm x 45 mm (length by width by height) |
| Weight: | |
| Temperature range: | 10 °C to 50 °C (Operating) / -10 °C to 70 °C (Storage) |
| Relative humidity: | 5 % to 80 %, non-condensing (Operating / Storage) |
Extra informatie
Extra informatie
| Gewicht | 1,016 kg |
|---|---|
| Afmetingen | 0,0700 × 0,2500 × 0,2050 m |
| EAN | 4260263421059 |
| Weight kg | 0.5 |
| Power consumption W | 2.50 |
| Accumulator | No |
