MADRIX KEY basic

Beschrijving

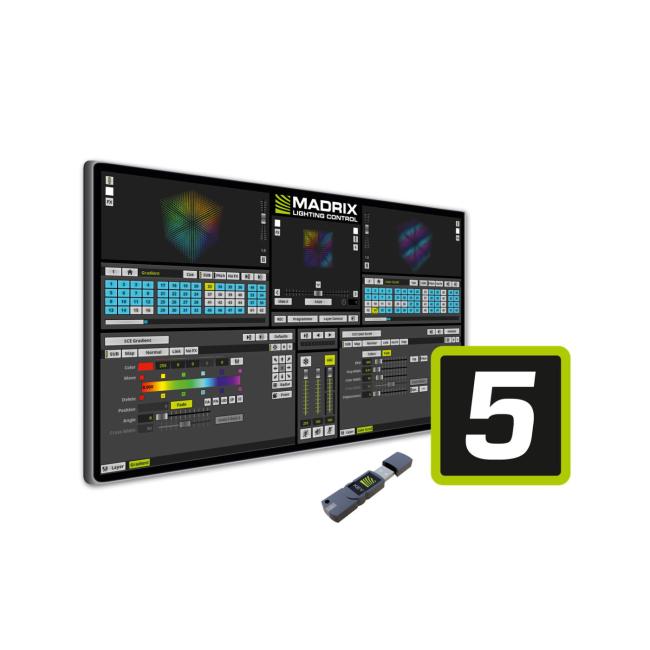

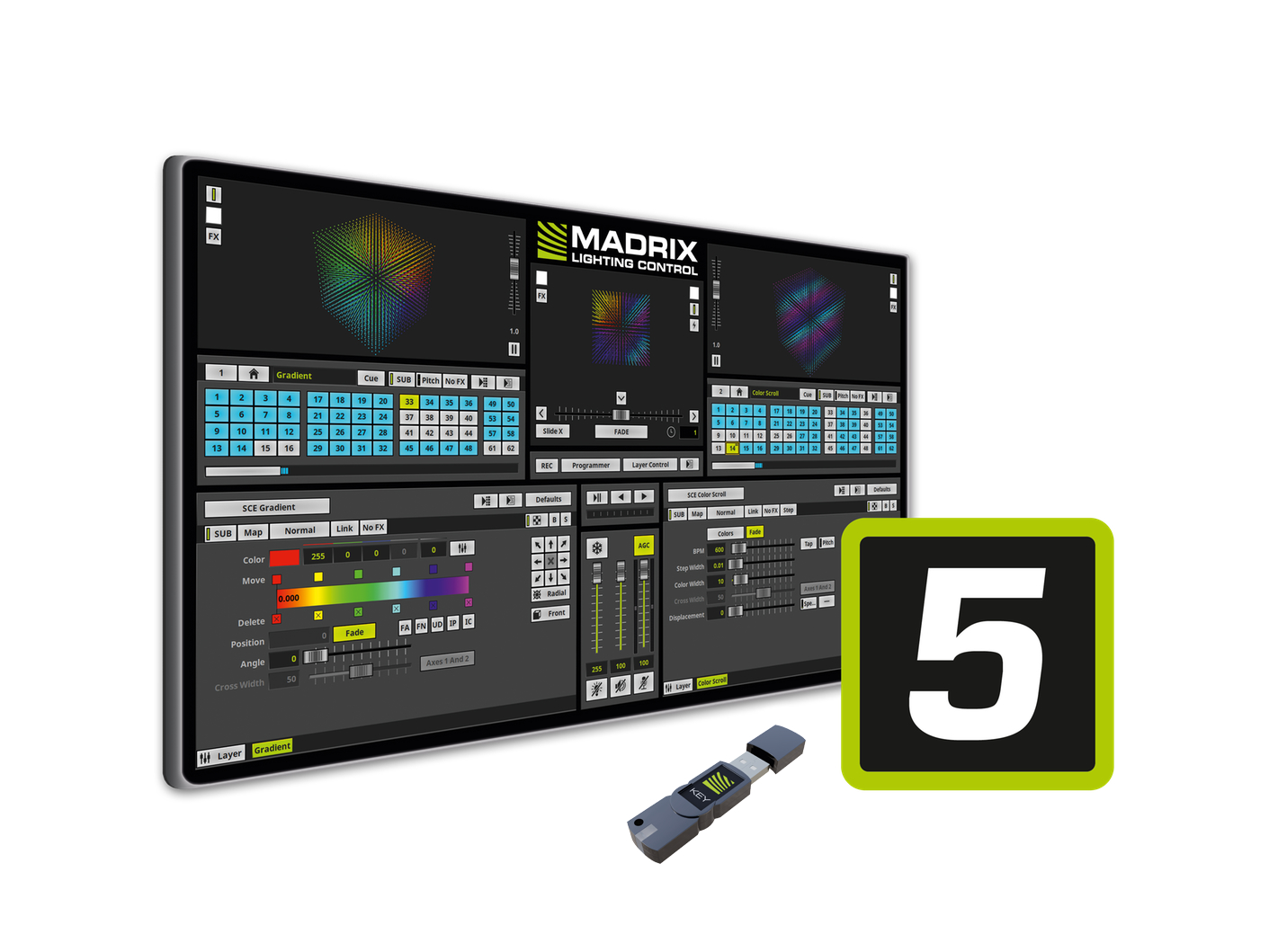

MADRIX basic – software with DMX512 output

• MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software
• Allows you to realize all kinds of different LED projects and lighting designs
• A normal PC/laptop can be used for professional LED control
• Includes 1 license for the software MADRIX
• Activates output for up to 16x 512 DMX channels (16 DMX universes / 8,192 DMX channels)

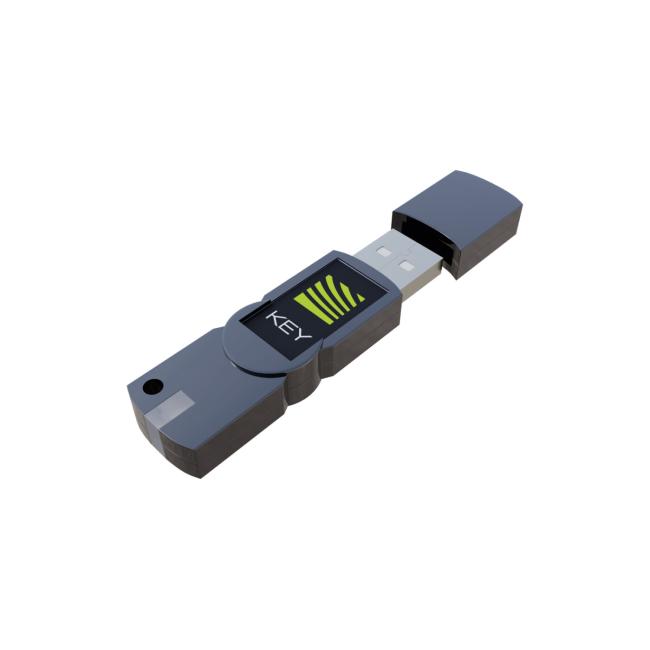

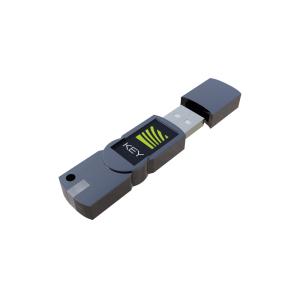

• The license is activated via a USB dongle and can be used flexibly on different computers as needed
• Can be used in parallel with other MADRIX licenses
• Can be upgraded to higher licenses (up to MADRIX KEY ultimate)
• Supports many industry protocols and communication standards for direct connection to your LEDs and LED controllers (incl. DMX512, Art-Net, Streaming ACN (E1.31), Philips Color Kinetics (KiNET), Insta/ROBE protocols, etc.)
• Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
• The software generates unique effects, visuals, and animations live and in real time
• No additional content is required
• Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, etc.)
• Analyzes incoming audio signals Sound2Light and Music2Light in real time
• New lighting scenes can easily be created in seconds
• Supports media server features also: Conveniently load and play back images, pictures, and videos as well as live signal capturing, screen capturing, scrolling text (ticker), and more
• Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
• 256 x 256 Storage Places to organize and store effects
• DJ-like operation with 2 decks (Left/Right) and a crossfader
• 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
• Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
• Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
• Supports Time Code from Art-Net, MIDI, SMPTE, and system time
• Remote control available via DMX-IN, Art-Net Remote, MIDI-IN, HTTP (internet browser), CITP
• Accompanying Fixture Editor provided including large fixture library
• Includes various other tools and features (DMX Fader Tool, DMX Watcher, Matrix Generator, Patch Editor, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
• Supports various 3rd-party interfaces and MADRIX hardware interfaces (sold separately)
• Minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
• Supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
• Package contents: DVD case with installation CD and USB dongle. The user guide is installed digitally.
• Installation instructions and software available in English, Spanish, French, and Simplified Chinese
• User manual available in English
• Made in Germany
• Free software demo version, user manuals, and more information available at www.madrix.com
• Made in Germany
