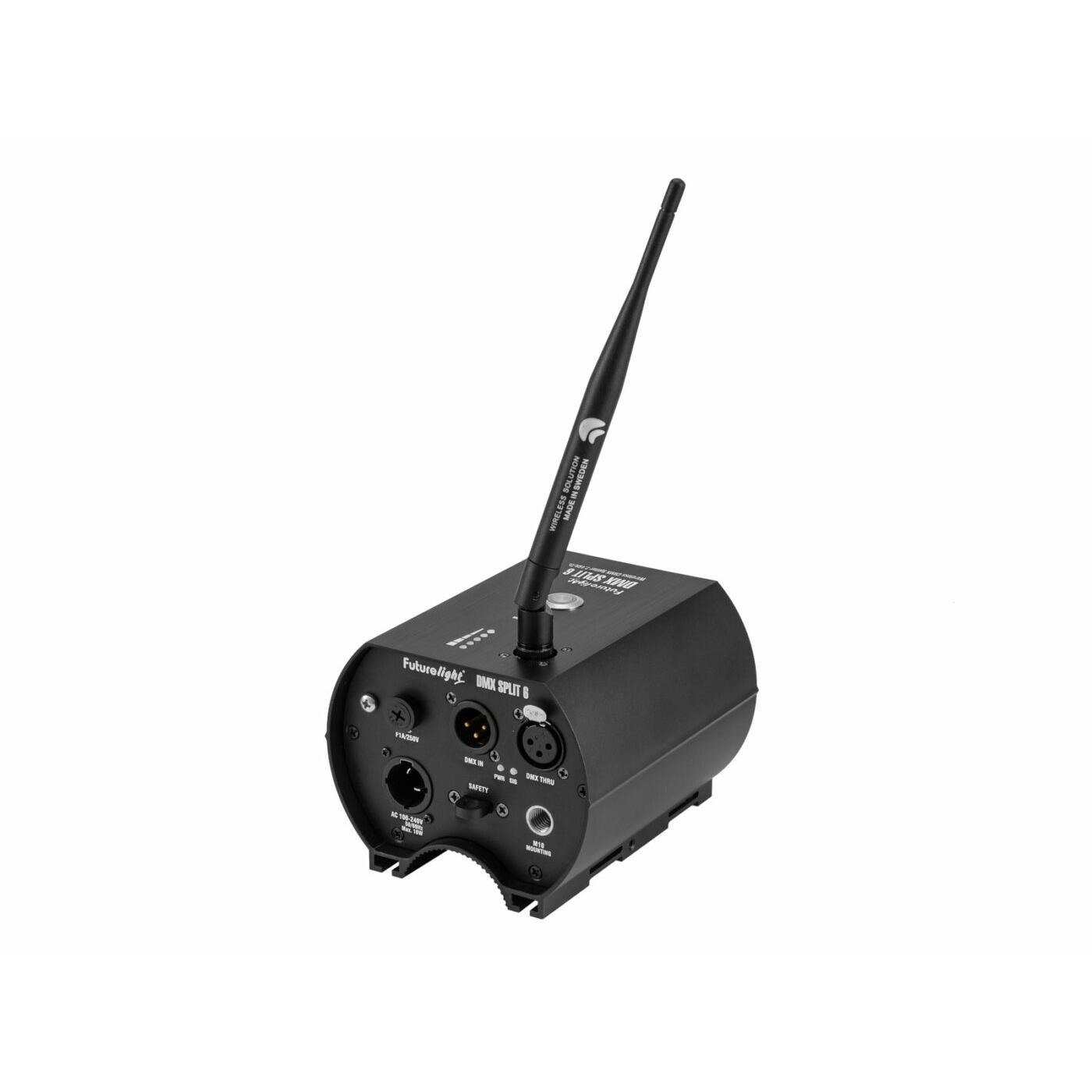

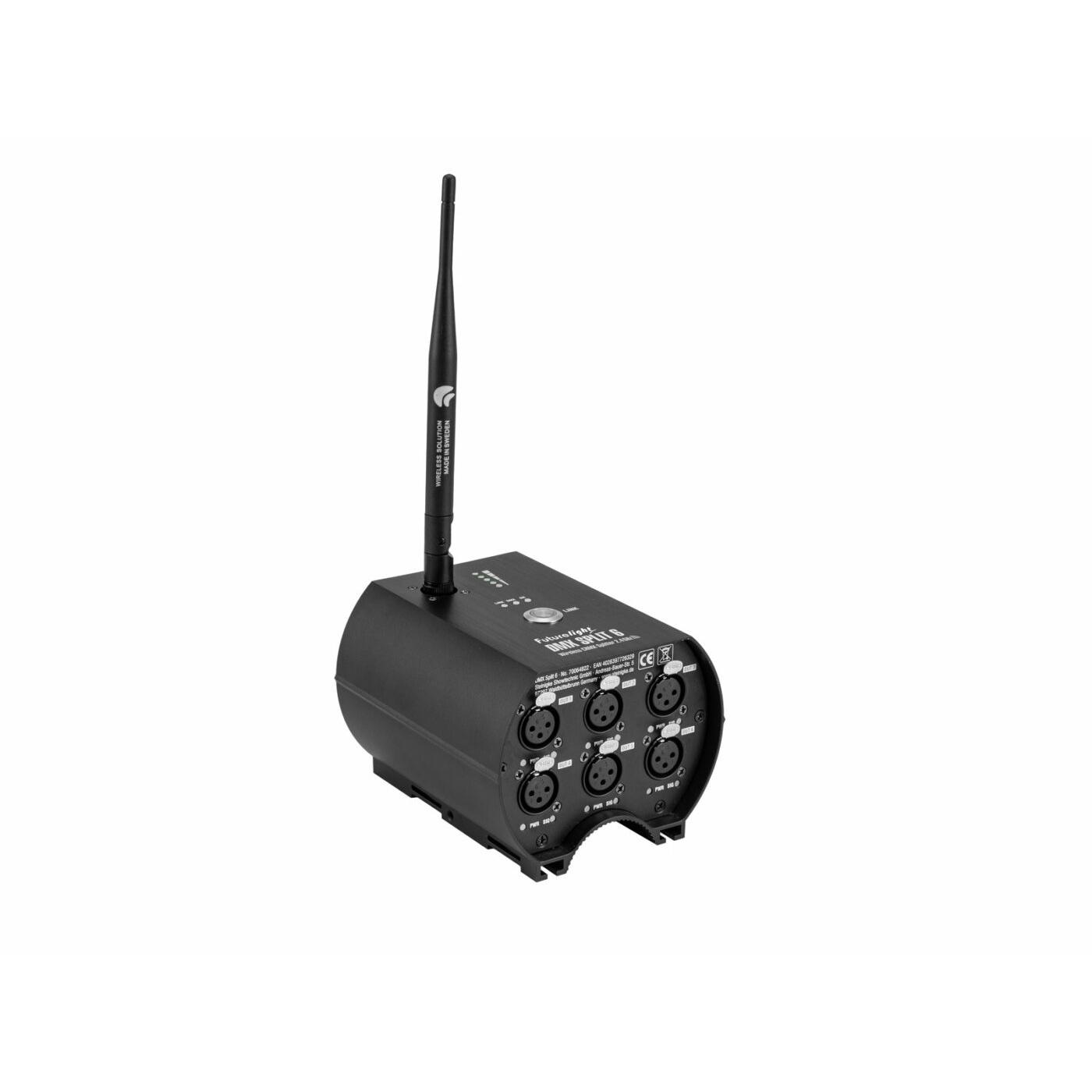

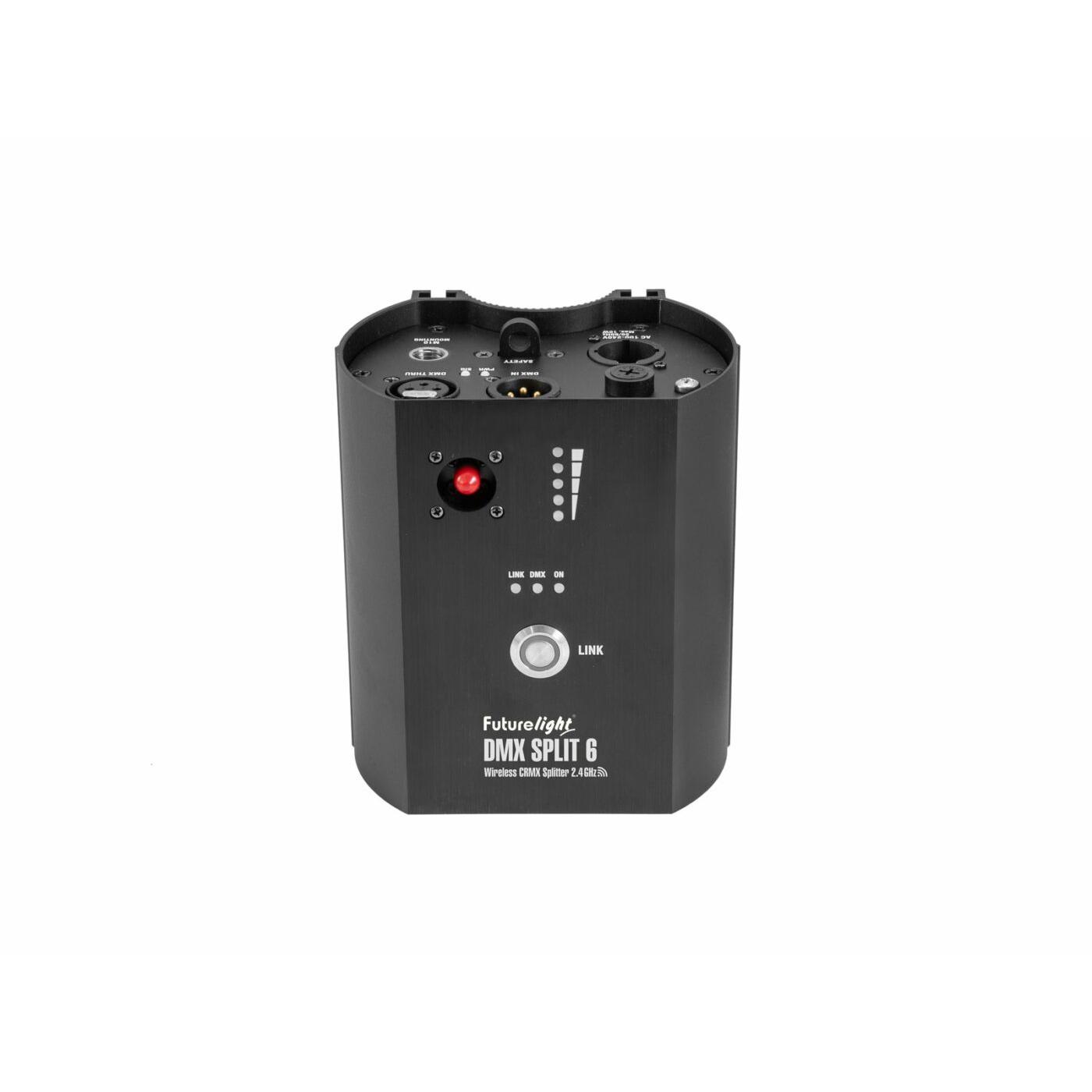

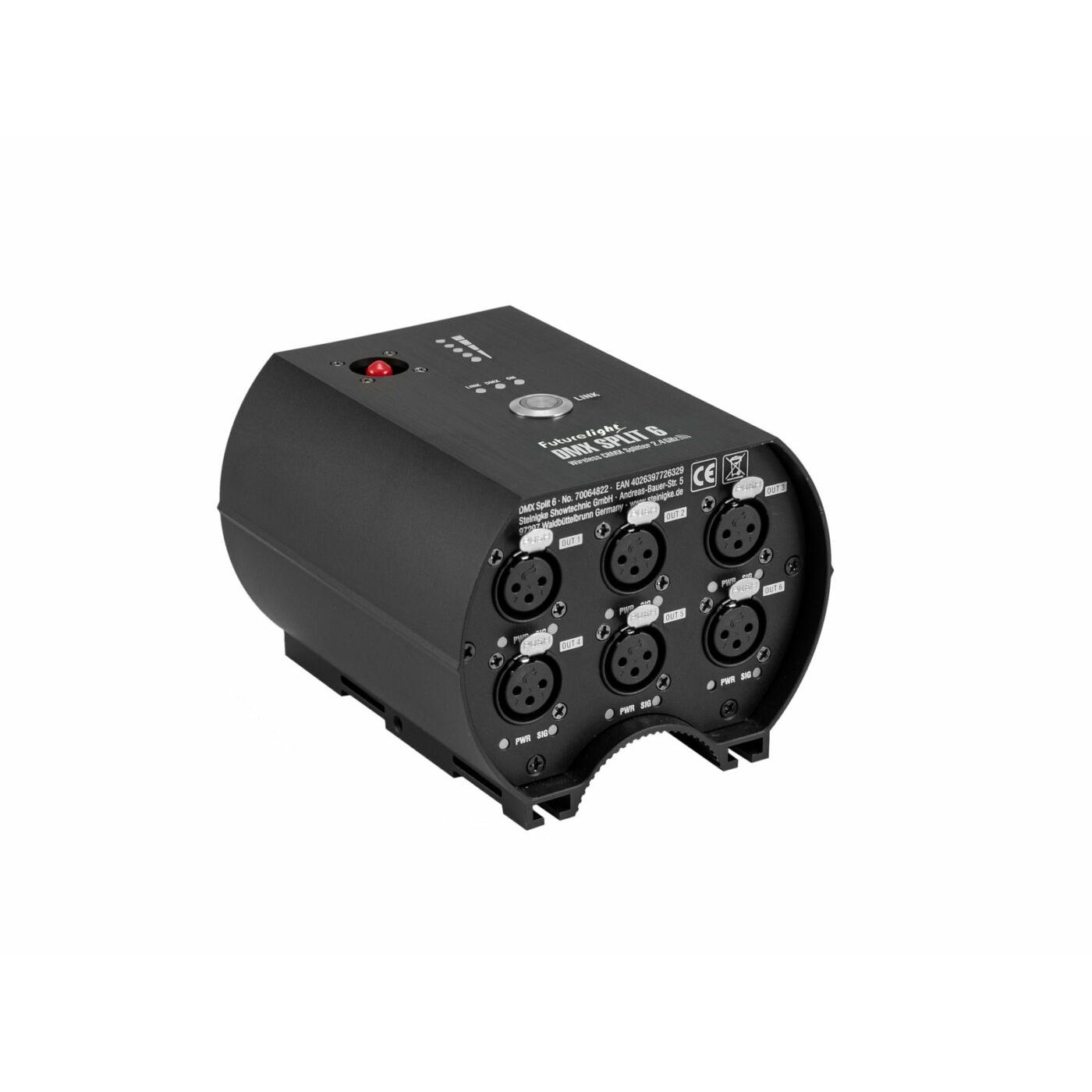

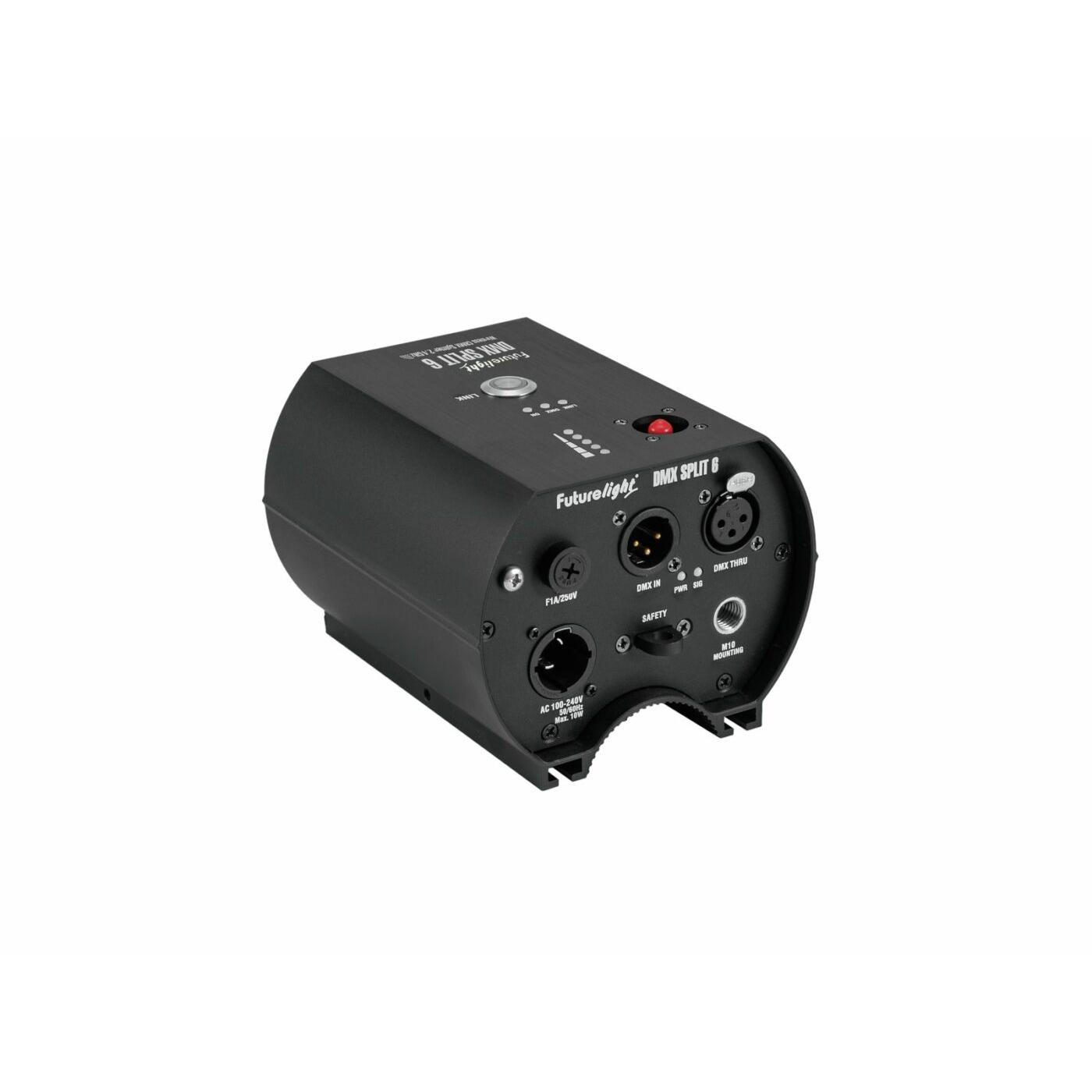

FUTURELIGHT DMX Split 6 Splitter CRMX
Oorspronkelijke prijs was: 415,00.349,00Huidige prijs is: 349,00.
Op voorraad nu besteld uiterlijk 20 maart in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 70064822
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
6-fold splitter and wireless DMX receiver (2.4 GHz) for truss and wall mounting
- Control via DMX; CRMX by LumenRadio; W-DMX by wireless solution
- DMX splitter for splitting one DMX input signal to 6 DMX outputs
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Input and outputs galvanically isolated
- Ultra-low latency
- 2.4 GHz license-free worldwide
- Can transmit up to 512 DMX channels
- With Holder for wall mounting
- Operating range up to 500m with line-of-sight
- Each DMX output with active signal processing
- Up to 10 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x antenna, 1 x mounting bracket, 2 x strap, 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Fuse: | 5 x 20 mm, F 1 A Fuse replaceable |
| DMX channels: | Output 512 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 6 x 3-pin XLR (F) mounting version Separate (galvanic) with active signal processing |
| Control: | DMX; CRMX by LumenRadio; W-DMX by wireless solution |
| Range: | Range up to 500m with line-of-sight |
| Frequency band: | 2.4 GHz |
| Parallel mode: | Max. 10 transmitter |
| Antenna gain: | 5 dBi |
| Latency: | < 5 ms |
| Modulation: | GFSK |
| Housing color: | Black |
| Attachment system: | M10 thread Holder for wall mounting |
| Status LED: | DMX, pairing, power, level meter |
| Dimensions: | Length: 13,7 cm Width: 12,2 cm Height: 11,2 cm |
| Weight: | 1,20 kg |
Extra informatie
Extra informatie
| Gewicht | 1,6 kg |
|---|---|
| Afmetingen | 0,1300 × 0,2250 × 0,1850 m |
| EAN | 4026397726329 |
