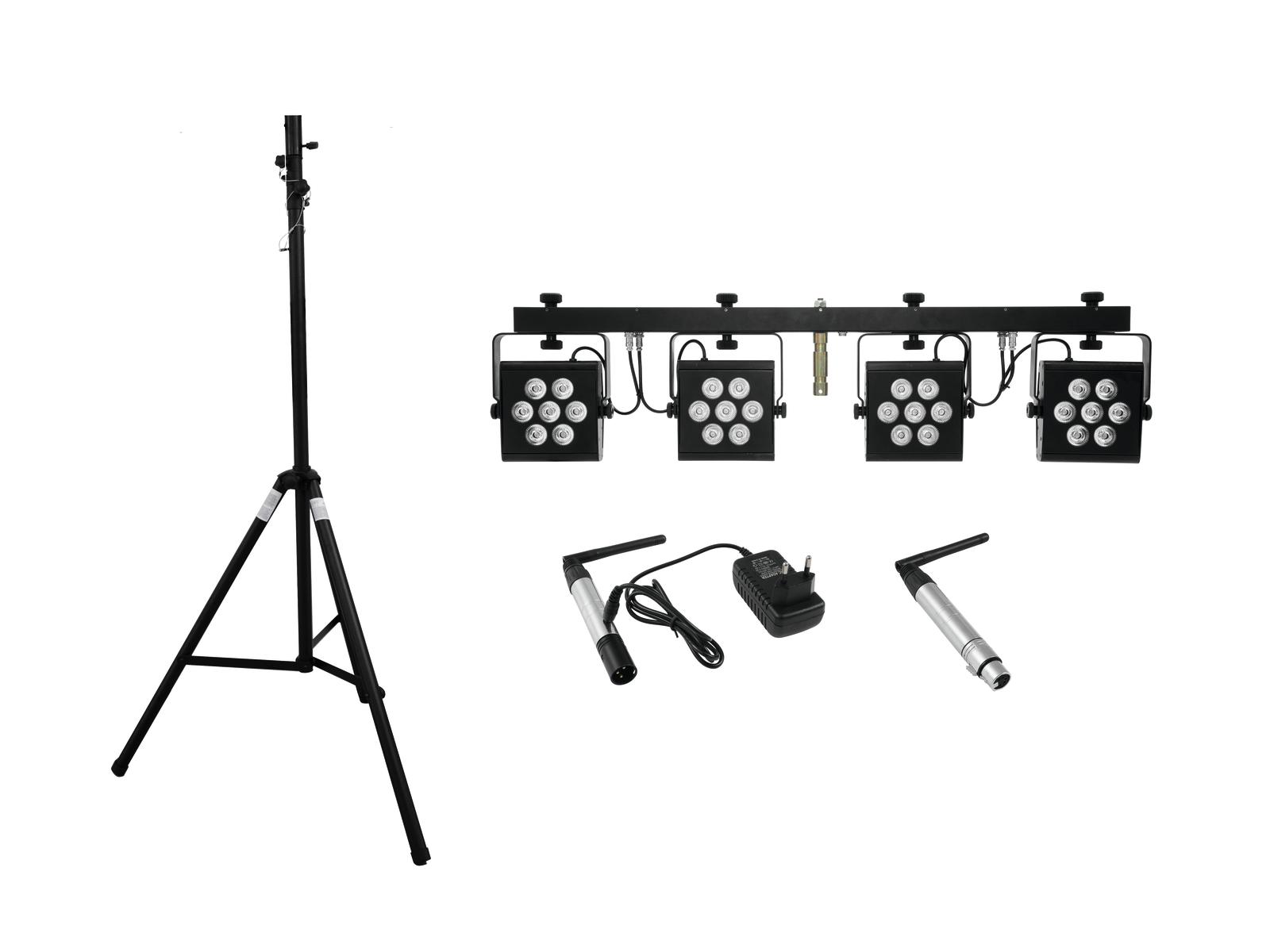

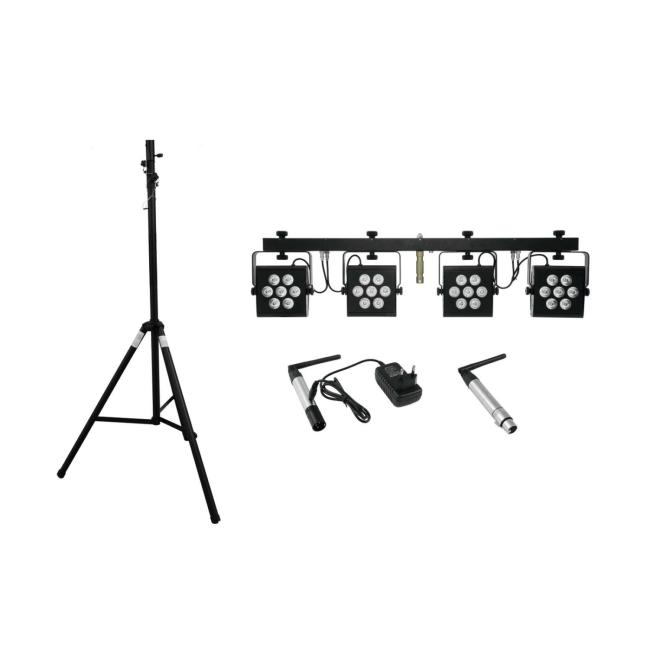

Eurolite Set LED KLS-2500 + zender + ontvanger + STV-40-WOT

Beschrijving

42109892 EUROLITE LED KLS-2500 Compact-Light-Set

Bar with 4 spots with 7 x 10 W 5in1 LED each, with 5-pin QuickDMX connector
• Complete LED light set with four slimline LED spots
• Crossbar with integrated DMX control unit
• Installation via TV pin for tripods with 28 mm interior diameter
• Ultra-light ideally suited for mobile use
• 7 PCL LEDs (RGBAW) per spot
• Comes pre-assembled with practical transport bag
• Movable and tiltable spotlights
• Sound-control via built-in microphone with sensitivity control
• DMX-controlled operation or stand-alone operation with processor-controlled color change
• Supports QuickDMX – the wireless DMX-system from Eurolite
• Built-in phantom fed socket for QuickDMX receiver (see accessories)
• Master/Slave operation
• Sound-control via built-in microphone with sensitivity control
• Convenient control possible via optional foot pedal FP-1
• DMX512 control via regular DMX controller (occupies 28 channels)
• Via DMX, each spot can be individually controlled
• DMX functions: dimmer, automatic mode, music control, strobe effect
• Addressing and setting via control panel with OLED display
• Suited for installation on a lighting stand (not included) or truss
• Black lacquered metal version
• Ideal for bands, stages or solo entertainers
• Ready for connection with power cord and PowerCon input
• 4 IEC outputs for power supply of further devices

70064700 EUROLITE QuickDMX Wireless Transmitter

Wireless DMX transmitter 2.4 GHz
• Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band – license-free worldwide

70064702 EUROLITE QuickDMX Wireless receiver phantom-power

Wireless DMX receiver 2.4 GHz, phantom powered
• Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels
• User-friendly 5-pin XLR plug (female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• 2.4 GHz ISM band – license-free worldwide
• Only to be sold in Germany, no export model available

59007002 EUROLITE STV-40-WOT Aluminum Stand

Aluminum lighting stand, no crossbar, max. load 18 kg, max. height 340 cm
• Stable lighting stand for mobile use
• The telescopic tube is additionally fixed with a safety pin
• With mounting hole (d=28mm) for TV pin

42109892 EUROLITE LED KLS-2500 Compact-Light-Set

Power supply:   100-240 V AC, 50/60 Hz
Power consumption:   190 W
DMX channels:   2/3/4/7/20/23/28
DMX connection:   3-pin XLR
QuickDMX connection:   5-pin XLR
Sound-control:   via built-in microphone
LED type:   10 W PCL (RGBAW)
Number of LEDs:   28
Beam angle:   28°
TV spigot:   D = 28 mm
Dimensions (L x W x H):   1160 x 60 x 320 mm
Weight:   13.5 kg

42109892 EUROLITE LED KLS-2500 Compact-Light-Set

Ecodesign regulation:   Yes
Special product:   Not designed for household room illumination
Purpose:   Show effect lighting

70064700 EUROLITE QuickDMX Wireless Transmitter

Power supply:   100-240 V AC, 50/60 Hz
   via power unit included in the delivery
Carrier frequency:   2.4 GHz ISM band, 78 channels
Modulation:   GFSK
Coverage:   400 m (line-of-sight)
Parallel operation:   max. 6 transmitters
DMX conncector:   3-pin XLR (male)
DMX channels:   1 universe (512 channels)
Dimensions with antenna (L x W x H):   212 x 18 x 18 mm
Weight:   80 g

70064702 EUROLITE QuickDMX Wireless receiver phantom-power

Power supply:   5 V DC phantom power
Carrier frequency:   2.4 GHz ISM band, 78 channels
Modulation:   GFSK
Coverage:   400 m (line-of-sight)
DMX conncector:   5-pin XLR (female)
DMX channels:   1 universe (512 channels)
Dimensions with antenna (L x W x H):   212 x 18 x 18 mm
Weight:   80 g

59007002 EUROLITE STV-40-WOT Aluminum Stand

Type:   Telescopic stand
Construction:   DIN 15560-27, DIN EN ISO 12100-2
Certified by:   CE
Sections:   2
Maximum load:   18 kg
Maximum height:   3.40 m
Minimum height:   1.50 m
Adapter:   D = 28.5 mm
Base area:   D = 1.20 m
Transport dimensions:   1.59 x 0.18 x 0.15 m
Weight:   5 kg
