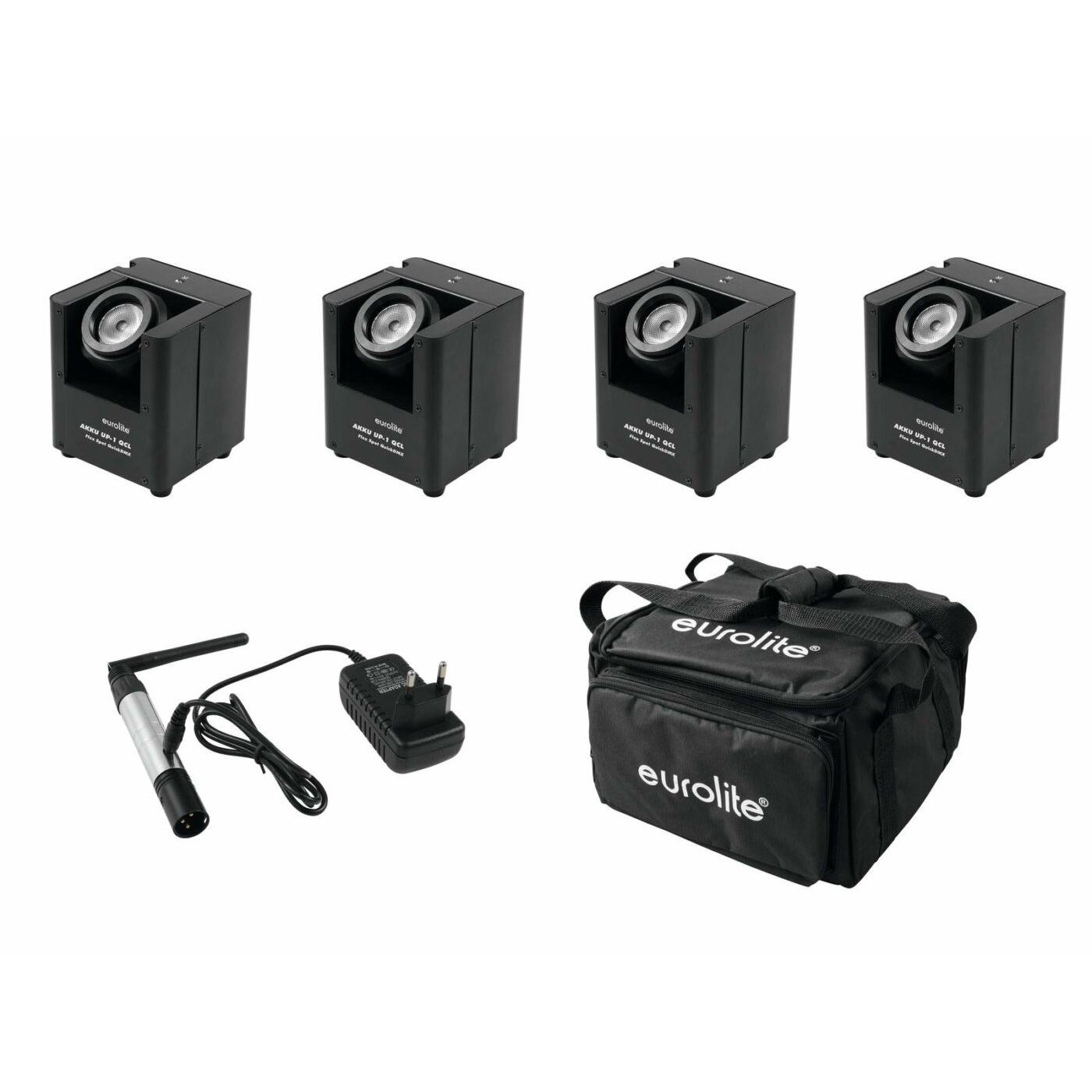

Eurolite Set 4x accu UP-1 + SB-4 transporttas + QuickDMX zender – LED Uplight Set

Beschrijving

41700505 EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX

LED Uplight with 15 W 4in1 LED, tiltable head and QuickDMX transceiver
• Compact and bright
• Equipped with a 15 W QCL (quadcolor LED) in red, green, blue and white
• Inclination angle of the LED head manually adjustable
• Different radiation angles (from 9° to 15°) possible via additional lens (included with delivery)
• With integrated QuickDMX receiver for wireless reception of DMX512 signals
• Flicker-free projection
• Operation via included power supply unit or built-in rechargeable lithium-ion battery with up to 18 hours operating time
• Integrated automatic charging of the battery with indicator
• Controllable via EUROLITE IR-13 remote control; included in the delivery
• DMX-controlled operation or stand-alone operation with Master/Slave function
• 3, 4, 6, 8 or 10 DMX channels selectable
• Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
• Dimmer speed (step response) adjustable
• Adjustable microphone sensitivity
• Addressing via control panel with 4-digit LED display
• Charger included in delivery
• Switch-mode power supply for operation between 100 and 240 volts
• DMX control via any standard DMX controller

30130501 EUROLITE SB-4 Soft Bag M

Black softbag for up to four devices (Akku UP-4/TL-3 TCL)
• Practical transport bag offers enough space for several lighting effects and accessories
• Large interior, four times divisible and adaptable with foam dividers and pads
• Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
• Interior upholstery helps securing and safeguarding the fixtures during transportation
• External pocket stores accessories like cables, clamps, lamps and tape
• Made of easy-care nylon
• Carrying handles

70064700 EUROLITE QuickDMX Wireless Transmitter

Wireless DMX transmitter 2.4 GHz
• Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band – license-free worldwide

41700505 EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX

Power supply:   7.4 V, 8800 mAh via li-ion battery pack
8.4 V, 3 A via charger (100-240 V AC, 50/60 Hz)
Power consumption:   15 W
Battery pack type:   Li-ion 7.4 V, 8800 mAh (65.12 Wh)
Battery operation:   depending on program used up to 18 hours
Recharging time:    6 hours
Battery remote control:    CR2032 button cell 3 V
DMX channels:   3/4/6/8/10
DMX connection:   3-pin XLR
Sound-control:   via built-in microphone
Wireless signal transmission:   2.4 GHz (ISM), 78 channels
LED type:   15 W QCL
LED number:   1
Beam angle:   9°/15°
Dimensions (L x W x H):   120 x 120 x 142 mm
Weight:   2.1 kg

41700505 EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX

Ecodesign regulation:   Yes
Special product:   Not designed for household room illumination
Purpose:   Show effect lighting

30130501 EUROLITE SB-4 Soft Bag M

Maximum load:   25 kg
Outside dimensions (W x D x H):   300 x 300 x 200 mm
Internal measurements (total):   290 x 290 x 190 mm
Internal measurements (compartment):   140 x 140 x 190 mm
Weight:   0.5 kg

70064700 EUROLITE QuickDMX Wireless Transmitter

Power supply:   100-240 V AC, 50/60 Hz
via power unit included in the delivery
Carrier frequency:   2.4 GHz ISM band, 78 channels
Modulation:   GFSK
Coverage:   400 m (line-of-sight)
Parallel operation:   max. 6 transmitters
DMX conncector:   3-pin XLR (male)
DMX channels:   1 universe (512 channels)
Dimensions with antenna (L x W x H):   212 x 18 x 18 mm
Weight:   80 g
