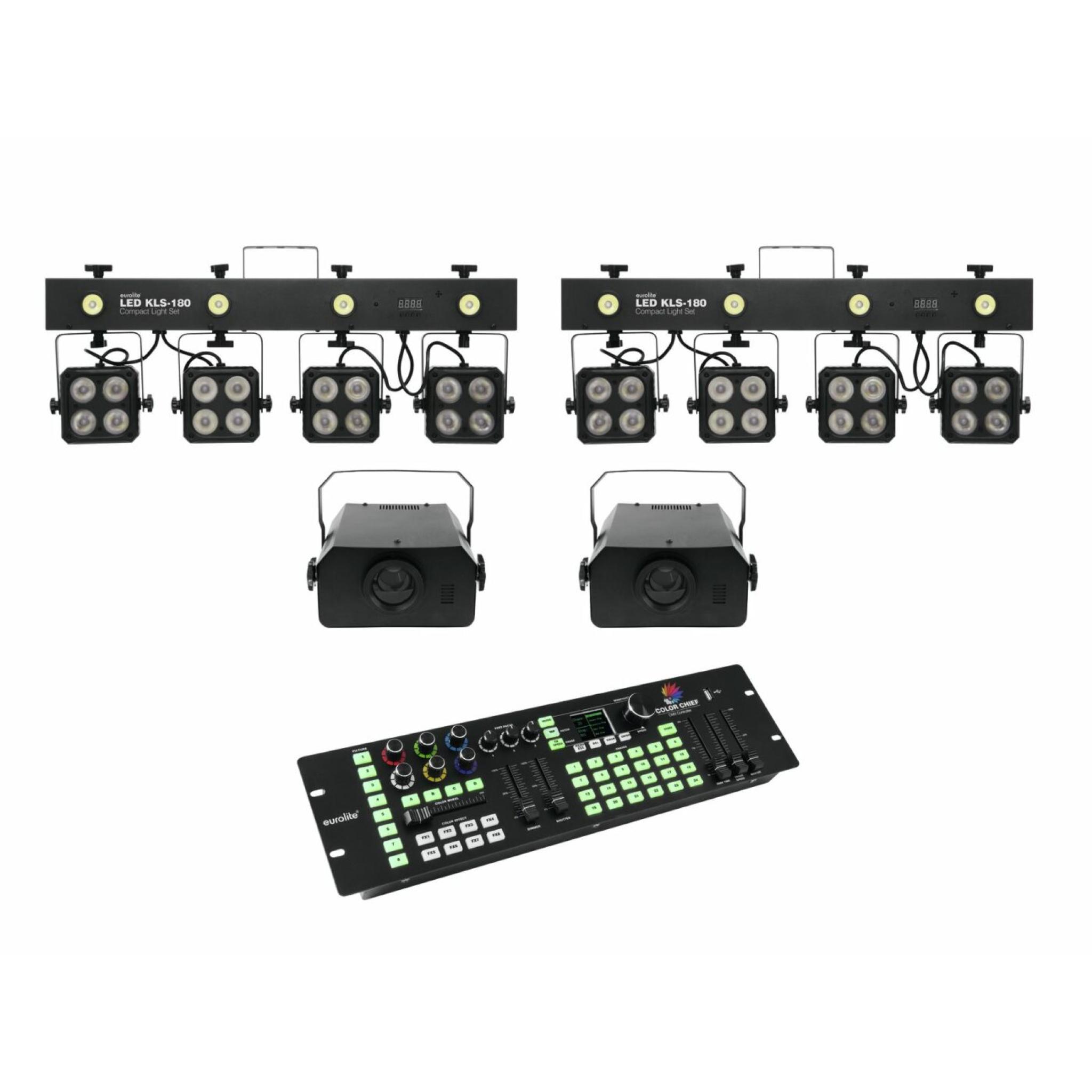

Eurolite Set 2x LED KLS-180 + 2x LED WF-40 + DMX LED Color Chief

Beschrijving

42109630 EUROLITE LED KLS-180 Compact Light Set

Bar with 4 RGBW spots and 4 white strobe LEDs, with 5-pin QuickDMX connector
• Crossbar with integrated DMX control unit and stand sleeve
• Ultra-light ideally suited for mobile use
• Ideal for bands, stages or solo entertainers
• Suited for installation on a speaker stand (not included) or truss
• Comes pre-assembled with practical transport bag
• 4 quadcolor (4in1) LEDs per spot provide for an exquisite RGBW color mix
• Strobe effect with 4 white 1 W LEDs
• Movable and tiltable spotlights
• Via DMX, each spot can be individually controlled
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Sound-control via built-in microphone, microphone sensitivity adjustable
• Supports QuickDMX – the wireless DMX-system from Eurolite
• Built-in phantom fed socket for QuickDMX receiver (see accessories)
• DMX512 control via any commercial DMX controller (occupies 21 channels)
• 3, 4, 8 or 21 DMX channels selectable
• Flicker-free projection
• Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, sound-control, Master/Slave operation
• Addressing and setting via control panel with 4-digit LED display
• Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
• Black lacquered metal version with movable mounting bracket
• Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation
• Switch-mode power supply for operation between 100 and 240 volts
• Feed-through output allows to power up to 8 devices
• Ready for connection via IEC power cord with safety plug

51918544 EUROLITE LED WF-40 Water Effect

Projection effect for water reflections, RGBW color mixing, DMX
• Produces projections like moving water
• Built-in effect wheels offers a lovely water effect
• Equipped with a 40 W COB LED with RGBW colors
• No fans, particularly quiet during operation
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Master dimmer
• Color presets
• Preset color temperatures
• Built-in programs
• Stepless RGBW color mixture
• Strobe effect with adjustable speed
• Random strobe effect
• Sound-controlled via built-in microphone
• Manual focus
• Switch-mode power supply for operation between 100 and 240 volts
• Ready for connection with power cord and safety-plug
• Addressing via control panel with 4-digit LED display
• DMX control via every standard DMX controller

70064575 EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights
• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for data storage of lighting programs
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• Very simple to program and use
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Rack installation with 3 units

42109630 EUROLITE LED KLS-180 Compact Light Set

Power supply:   100-240 V AC, 50/60 Hz
Power consumption:   80 W
DMX channels:   3/4/8/21
DMX connection:   3-pin XLR
QuickDMX connection:   5-pin XLR
Sound-control:   via built-in microphone
LED type:   8 W QCL / 1 W
Number LEDs:   16 RGBW, 4 white
Beam angle:   9°
Dimensions (W x D x H):   600 x 140 x 230 mm
Weight:   4 kg

42109630 EUROLITE LED KLS-180 Compact Light Set

Ecodesign regulation:   Yes
Special product:   Not designed for household room illumination
Purpose:   Show effect lighting

51918544 EUROLITE LED WF-40 Water Effect

Power supply:   100-240 V AC, 50/60 Hz
Power consumption:   25 W
DMX channels:   9
DMX connection:   3-pin XLR
Sound-control:   via built-in microphone
Flash-rate:   10 Hz
LED number:    1
LED type:   COB 40 W, RGBW
Dimensions:   252 x 277 x 187 mm
Weight:   3 kg

51918544 EUROLITE LED WF-40 Water Effect

Ecodesign regulation:   Yes
Special product:   Not designed for household room illumination
Purpose:   Show effect lighting

70064575 EUROLITE DMX LED Color Chief Controller

Power supply:   100-240 V AC, 50/60 Hz
   via included power adapter (9 V/800 mA)
Power consumption:   <10 W
Control channels:   maximum 240
Storable scenes/chases:   24
DMX512 output:   3-pin XLR connector
Sound-control:   via built-in microphone or
   RCA line input (min. 100 mV)
Available storage media:   USB devices (FAT32)
Dimensions (L x W x H):   482 x 132 x 85 mm
   Rack installation with 3 U
Weight:   2.2 kg
