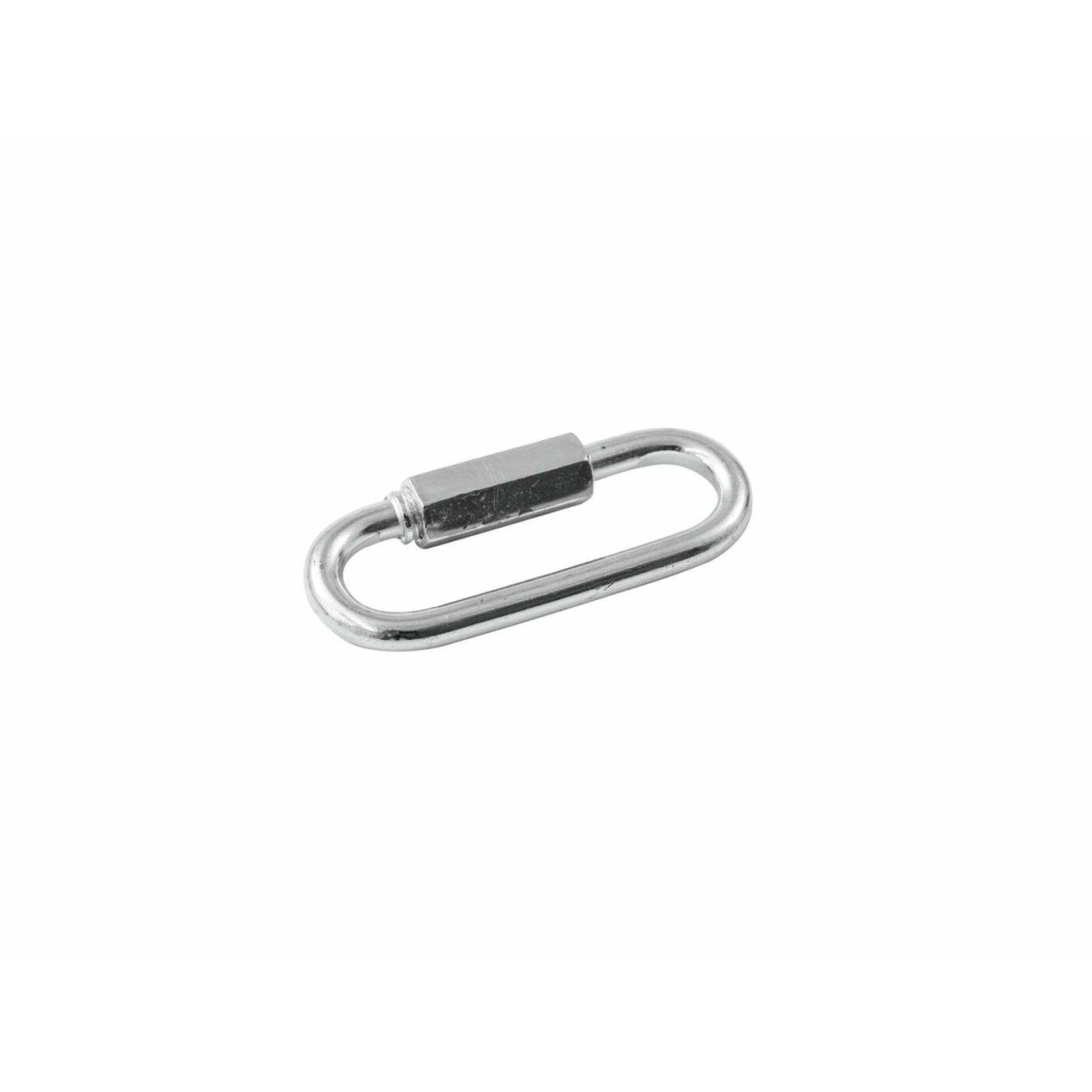

Eurolite Quick Link Type B-140
€4,17
Op voorraad nu besteld uiterlijk 24 april in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 50301657
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
EUROLITE quick links
The EUROLITE quick links comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The quick links are constructed in accordance with the German standard DIN 56927:2009-03.
The quick links are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these quick links in all areas where the BGV C1 is required.
The EUROLITE quick links comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The quick links are constructed in accordance with the German standard DIN 56927:2009-03.
The quick links are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can secure loads above persons with these quick links in all areas where the BGV C1 is required.
Official quick link
- Complies with DIN 56927:2009-03
- Nominal size: 5 mm
- Form B (long)
- Galvanized
- Identification number: 140
- Stamp: DIN 56926 B 140
- Test report according to DIN EN 10204 as download
| Maximum load WLL (5-fold): | 280 kg |
| Maximum load BGV C1 (10-fold): | 140 kg |
| Identification: | DIN 56926-B-140 |
| Temperature range: | -40° C to +100° C |
| Diameter: | 5 mm |
| Form: | B – large |
| Standard: | DIN 56927:2009-03 |
| Spanner opening: | 13 mm |
Extra informatie
Extra informatie
| Gewicht | 0,025 kg |
|---|---|
| Afmetingen | 0,0100 × 0,0600 × 0,0250 m |
| Weight kg | 0,023 |
| Minimum breaking force kN | 14000 |
| Length mm | 62 |
| Diameter mm | 5 |
| Spanner opening mm | 0-13 |
| Maximum load WLL (5-fold) kg | 280 |
| Shape | B – Big opening |
| Standard | DIN 56927:2009-03, |
