-28%
Eurolite MD-2030 DMX – Safety Spiegelbolmotor – 50 cm max – max 5 RPM
Oorspronkelijke prijs was: 148,75.106,77Huidige prijs is: 106,77.
Availability: Uitverkocht - Neem contact met ons op voor meer informatie.
Artikelnummer: 50301503
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving

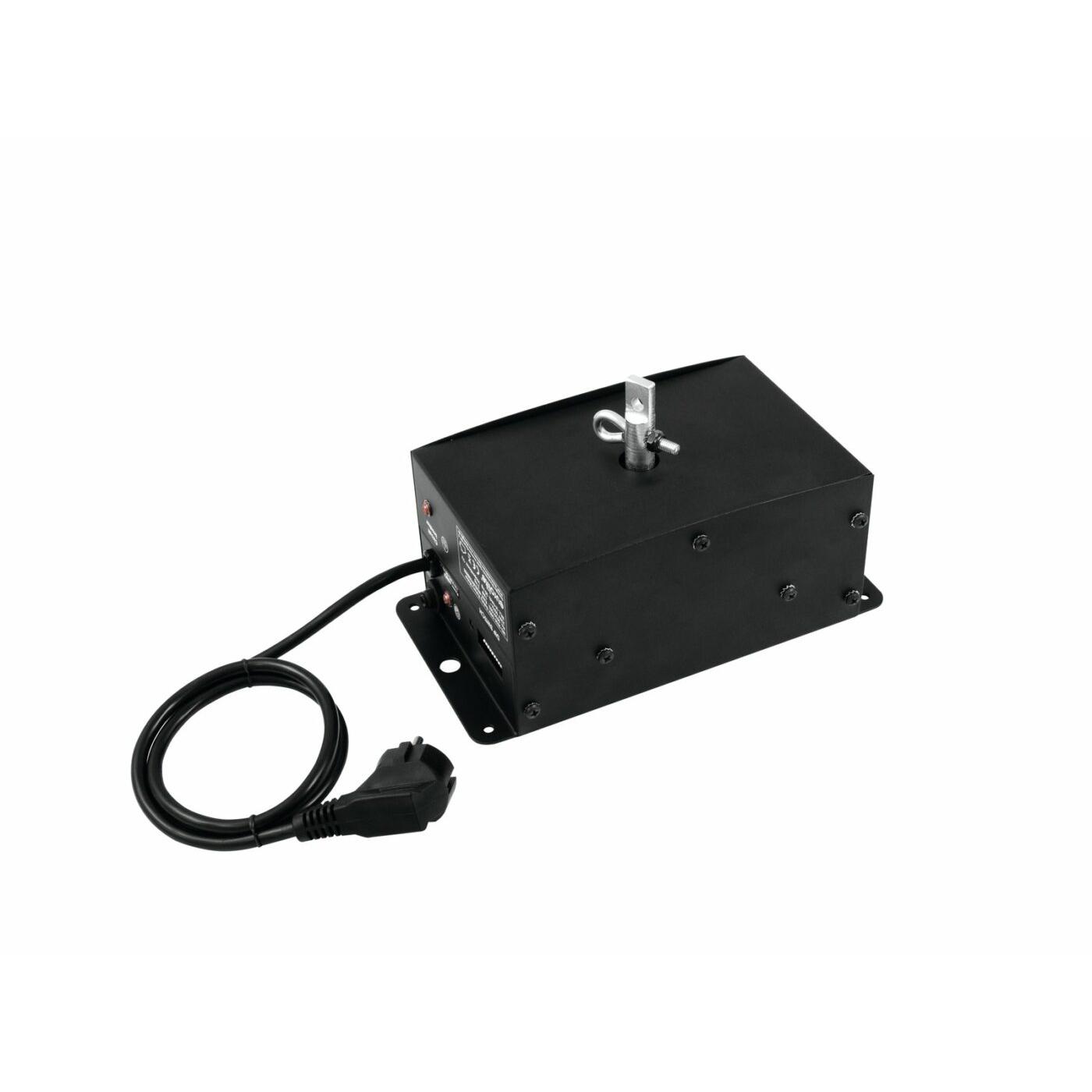

DMX-controlled motor for mirror balls up to 50 cm, up to 5 RPM
- Suitable for driving mirror balls up to a maximum weight of 10 kg
- This weight corresponds with a diameter of 50 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material

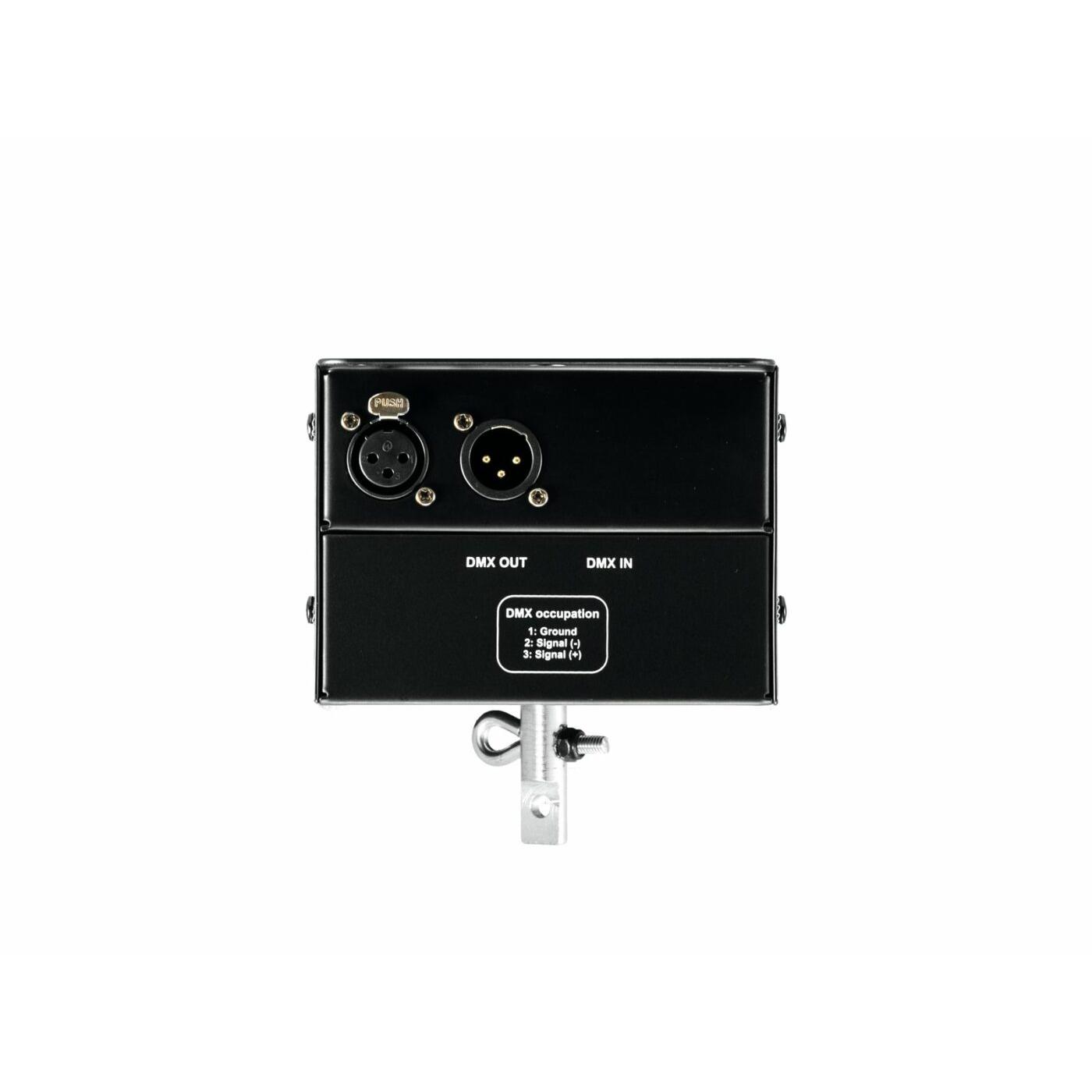

- Operable in stand-alone mode or via DMX interface
- DMX512 control possible via any commercial DMX controller (occupies 1 channel)
- Functions: Rotation direction, Rotation speed, Master/Slave
- Programable via DIP switches
- 2 chains and 4 quick links must be ordered separately
- Ready for connection via power cord with safety-plug
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 13 W |
| Maximum load WLL (4-fold): | 30 kg |
| Maximum load BGV C1 (8-fold): | 15 kg |
| Maximum load BGV C1 (10-fold): | 12 kg |
| Maximum load BGV C1 (12-fold): | 10 kg |
| Max. diameter of mirror ball: | 50 cm (EUROLITE) |
| Rotation-speed: | up to 5 RPM |
| Dimensions (L x W x H): | 230 x 130 x 140 mm |
| Weight: | 3 kg |
Extra informatie
Extra informatie
| Gewicht | 2,55 kg |
|---|---|
| Afmetingen | 0,1550 × 0,2450 × 0,1600 m |
| Maximum load kg | 10 |
| Weight kg | 3 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption W | 13 |
