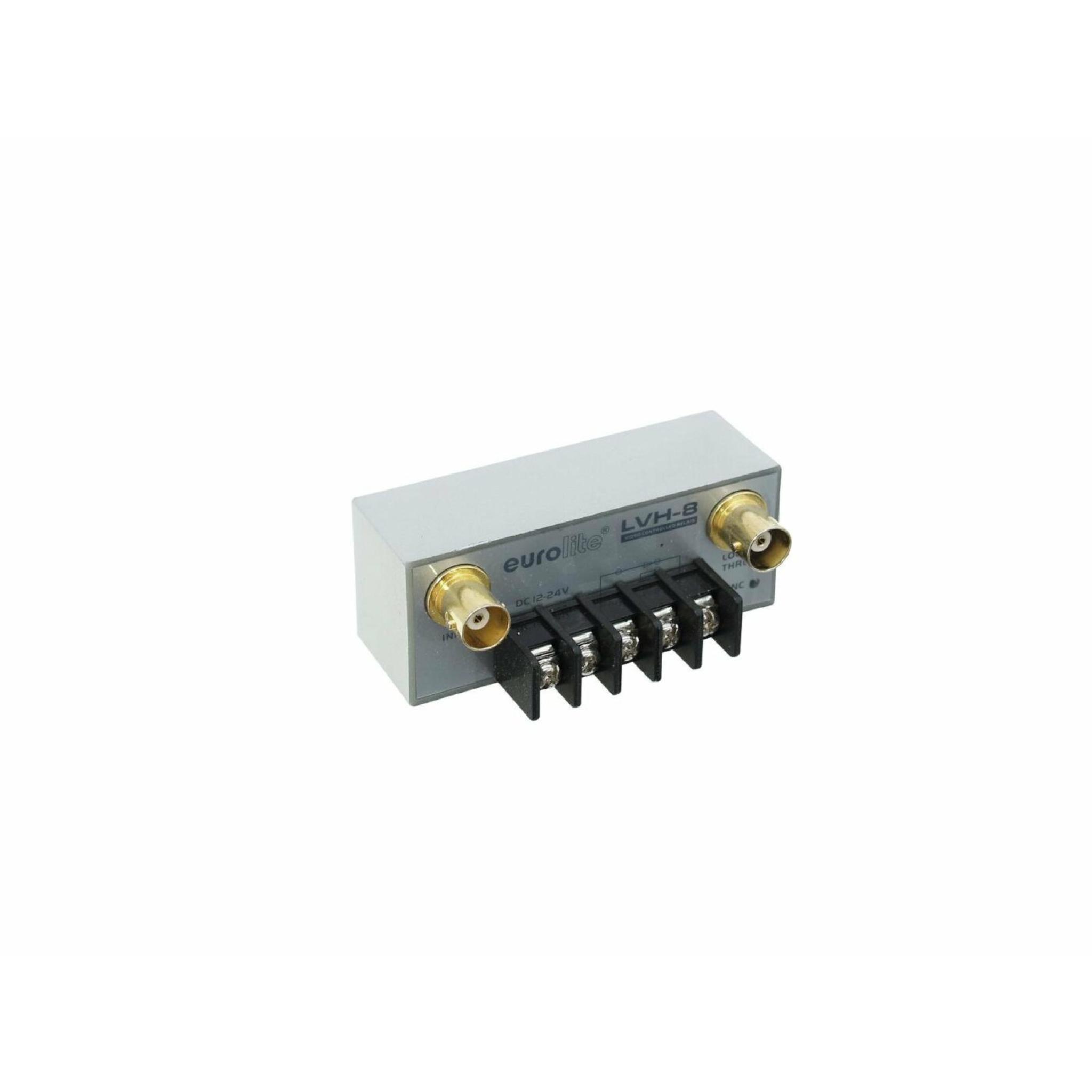

Eurolite LVH-8 Video controlled relay
Oorspronkelijke prijs was: €31,96.€27,95Huidige prijs is: €27,95.
Op voorraad nu besteld uiterlijk 25 april in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 81013208
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
VIDEO CONTROLLED RELAY
The LVH-8 serves as a video presence detector for an audio/video system. The unit generates a control signal based on the absence or presence of valid video signals. The unit responds to NTSC and PAL signals and features a feed-through output. Power connections are made using block terminals.
The LVH-8 serves as a video presence detector for an audio/video system. The unit generates a control signal based on the absence or presence of valid video signals. The unit responds to NTSC and PAL signals and features a feed-through output. Power connections are made using block terminals.
Video controlled relay
- Detection of video
- NTSC and PAL compatible
- Bridging or terminated operation
- LED indicator
- Connections via BNC plug
- 12-24 V DC power supply via block terminals (PSU not included)
- Ultra compact
| Power supply: | 12-24 V DC, 74 mA |
| 1 x video input: | 0.5-1 Vpp/75 ohms BNC, ground referenced |
| 1 x video output: | Feed-through/ BNC, ground referenced |
| Control output: | N/O or N/C contacts |
| Relay contacts: | Single-pole, double-throw |
| Max. switching power: | 60 W, 125 VA |
| Max. switching voltage: | 220 V AC, 250 V DC |
| Max. switching current: | 2 A |
| Max. continuous switching current: | 3 A |
| Dimensions (L x W x H): | 76 x 41 x 31 mm |
| Weight: | 7 g |
Extra informatie
Extra informatie
| Gewicht | 0,092 kg |
|---|---|
| Afmetingen | 0,0500 × 0,0900 × 0,0450 m |
| Weight kg | 0,007 |
