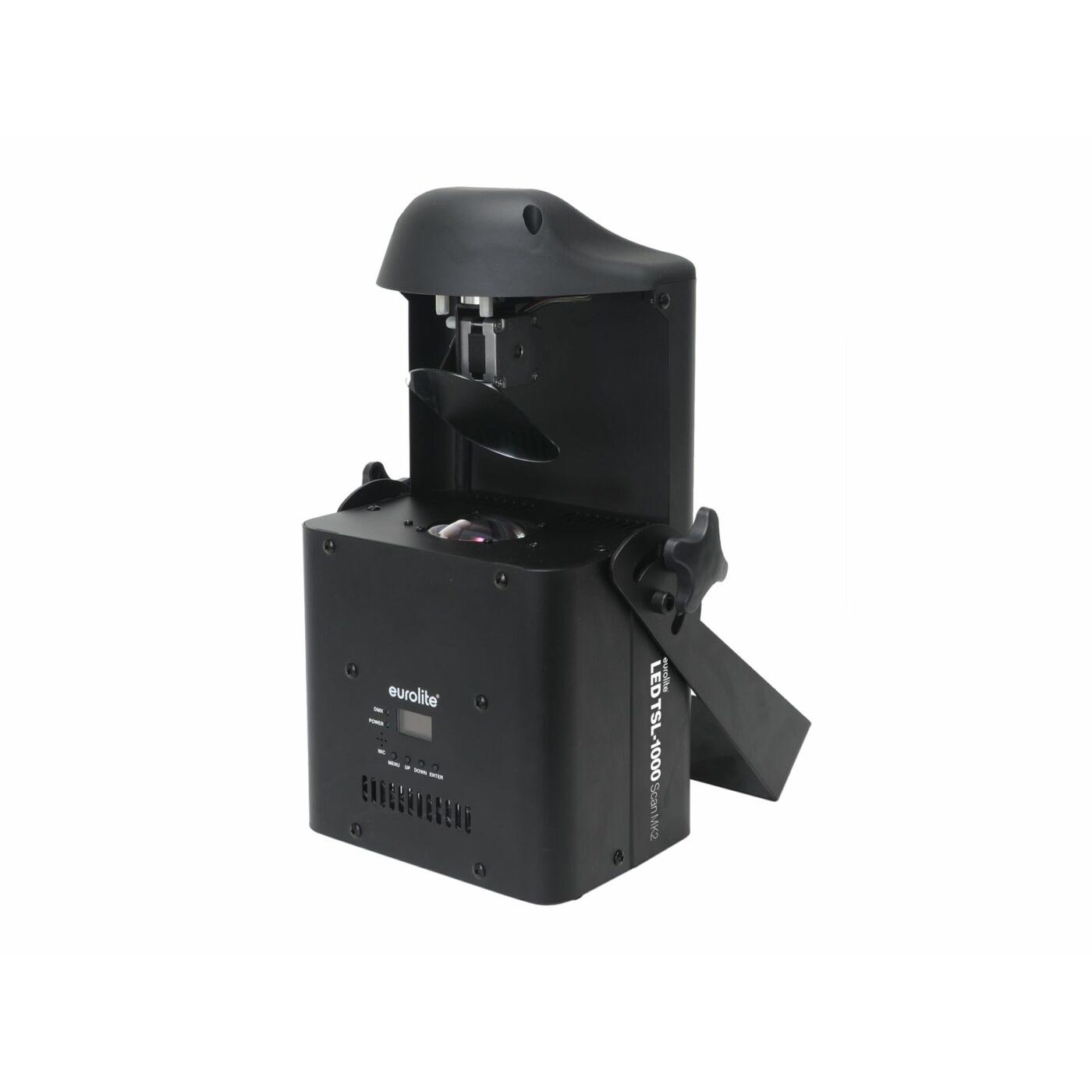

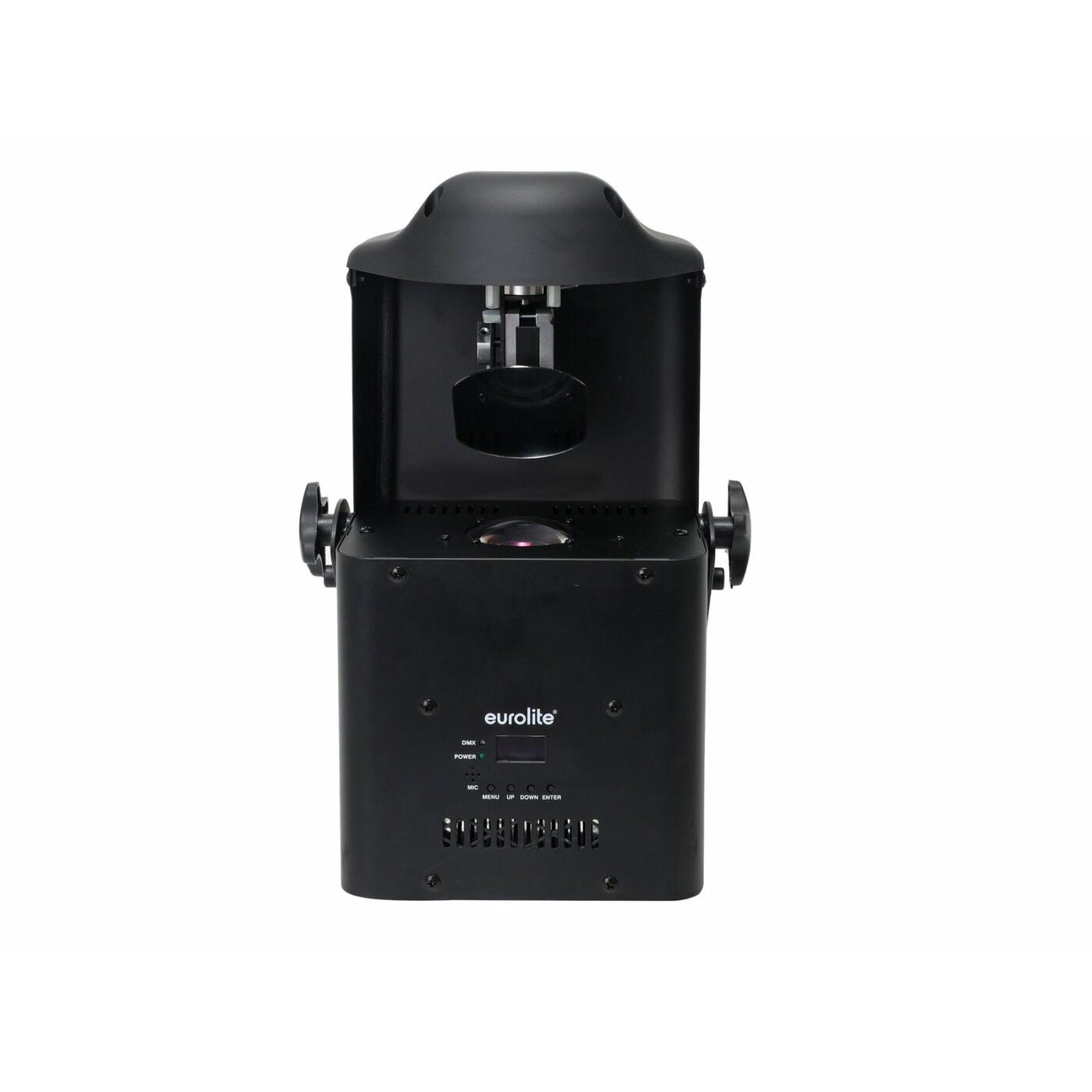

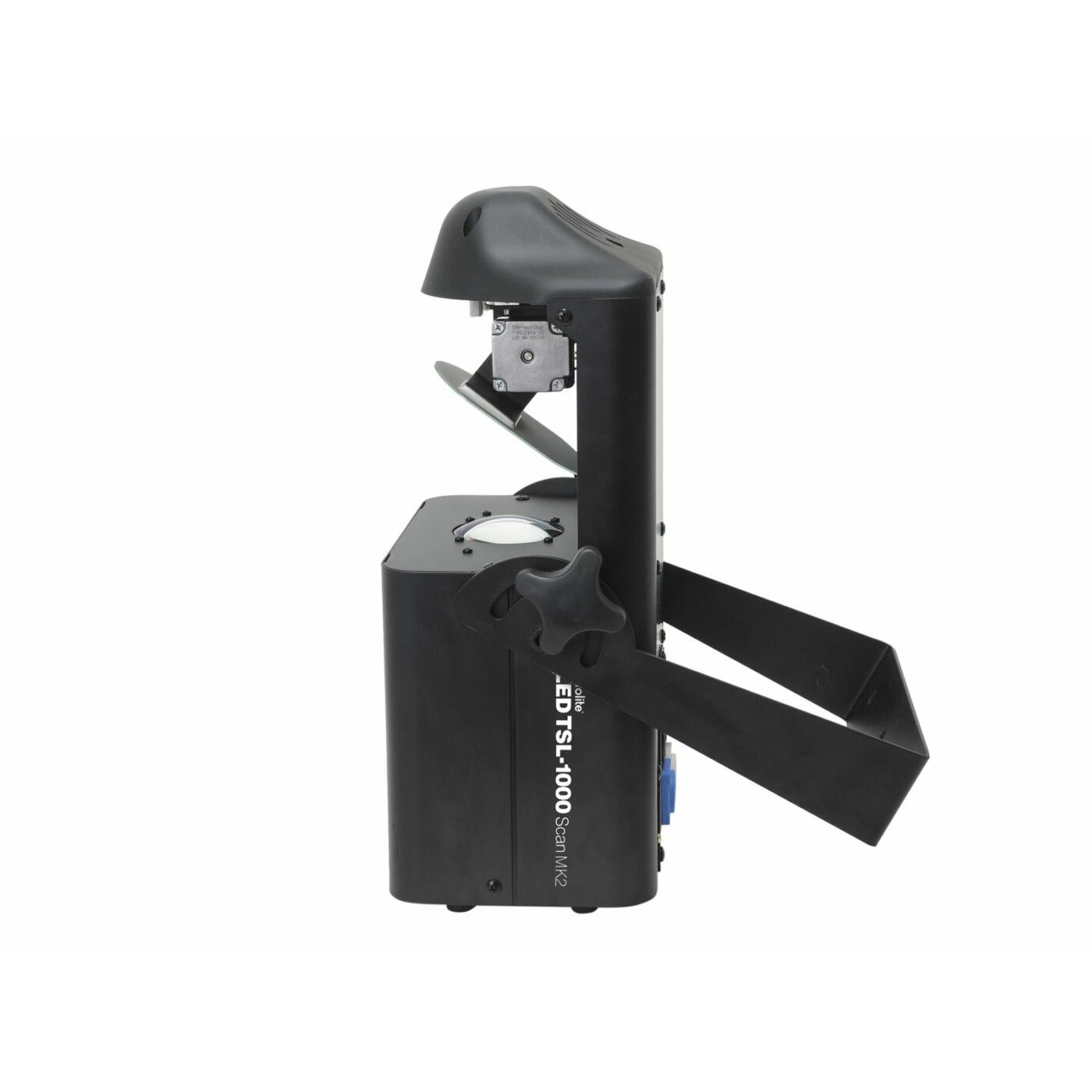

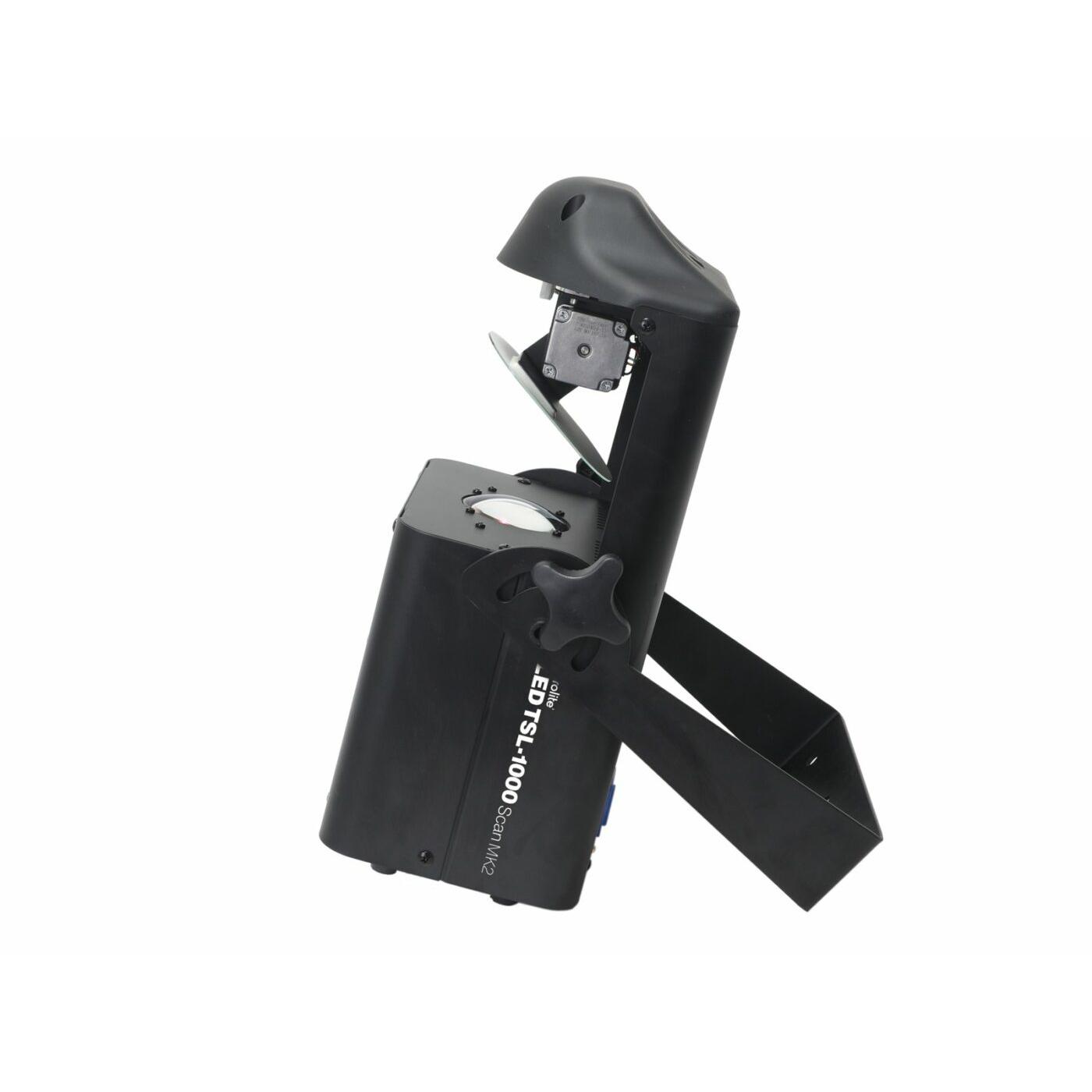

Eurolite LED TSL-1000 scanner MK2

Eurolite LED TSL-1000 scanner MK2

Oorspronkelijke prijs was: 534,31.Huidige prijs is: 386,01.

In stock
0 out of 5
( Er zijn nog geen beoordelingen. )

Oorspronkelijke prijs was: 534,31.Huidige prijs is: 386,01.

Op voorraad nu besteld uiterlijk 10 april in huis.
Gratis verzending vanaf 100 euro.
30 Dagen bedenktijd, en Gratis retouren.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis Artikelnummer: 51786126
Download de handleiding

Beschrijving

Scanner with 100 W LED, rotating gobos and 3-facet prism, color wheel and motorized focus

  • One high-power 100 W COB LED in cold white
  • Positioning within 160° PAN and 50° TILT
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Auto, music, master/slave and DMX mode
  • Built-in auto and music show programs
  • 10 or 15 DMX channels selectable
  • Color wheel with 8 dichroic colors plus open
  • Rainbow effect with adjustable speed in both directions
  • Gobo wheel with 7 rotating gobos plus open
  • Gobo shake function
  • Rotating 3-facet prism
  • Strobe effect with adjustable speed
  • Sound-control via built-in microphone; sensitivity adjustable
  • Motorized focus
  • Electronic dimmer
  • Lightbeam with 20° radiation angle
  • Addressing and setting via control board with OLED display and four operating buttons
  • Switch-mode power supply for operation between 100 and 240 volts
  • P-Con terminals for power linking up to 8 units
  • Additional rubber feet when the device shall be positioned on the floor

Note: The device is NOT compatible with the predecessor, article number 51786122.

  • LED: 1 x COB (chip-on-board) 100 W cold white (CW)
  • Color wheel 8 dichroic filters plus open
    Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for exchanging gobos without tools
  • Can be operated in 10; 15 CH mode
  • The device is cooled by cooling fan
  • Controlling by Stand-alone; DMX; Master/slave function; Sound to light via Microphone
  • Is in Light J Software already preprogrammed
  • Flicker-free projection
  • Effect: Gobo effect
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 110 W
IP classification: IP20
Protection class: Class I
Power connection: Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output: P-Con (gray), mounting version
Fuse: T 2 A Fuse replaceable
Lamp type: LED lamp
LED: 1 x COB (chip-on-board) 100 W cold white (CW)
Color temperature: 8000K
Max. TILT movement: Exact positioning (16 bit resolution) 50°
Max. PAN movement: Exact positioning (16 bit resolution) 160°
Flash rate: 1 – 25 Hz
Equipment: Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
Color generation: Color wheel 8 dichroic filters plus open
Gobos: Gobo wheel with rotating gobos, 7 gobos and open
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools
DMX channels: 10; 15

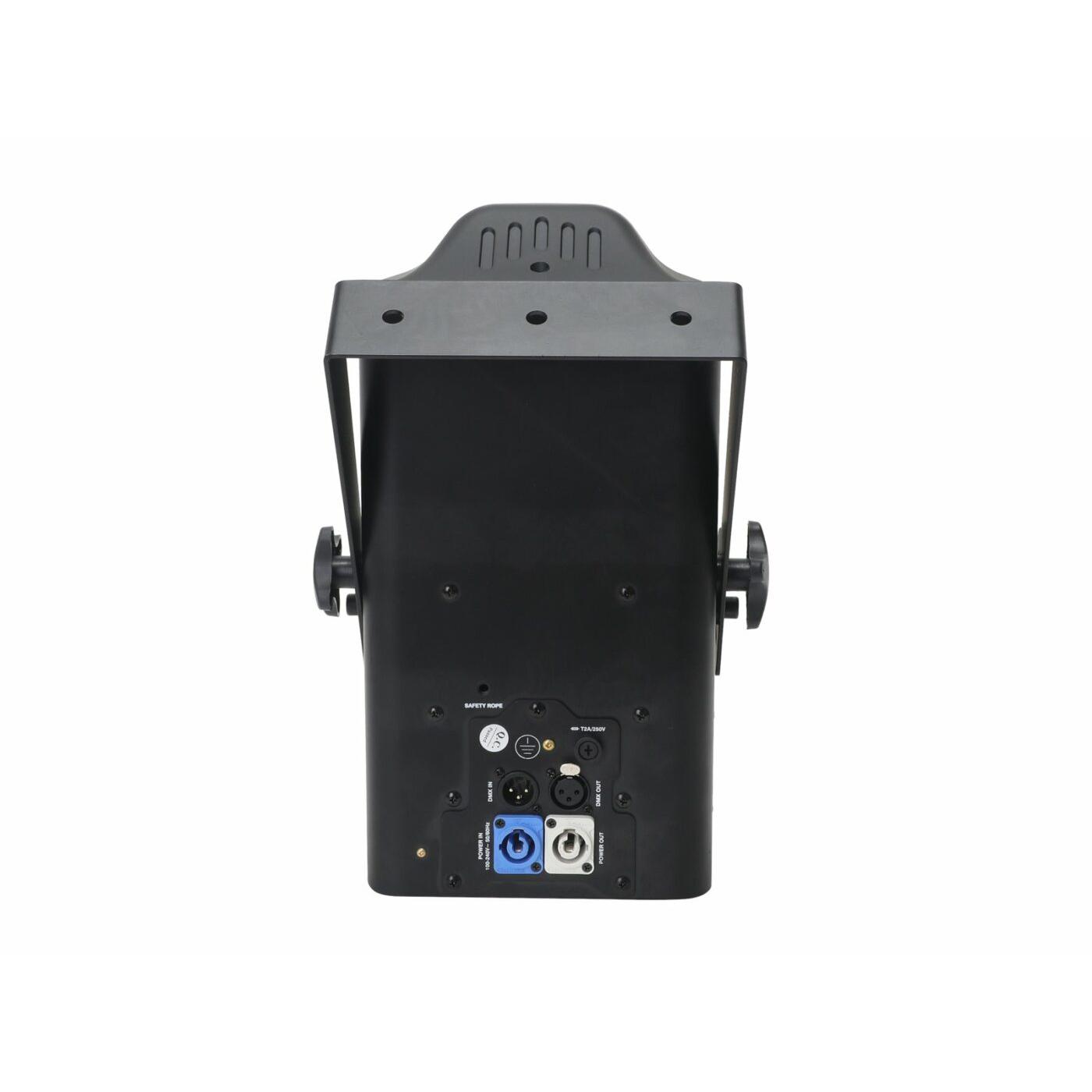

DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control: Stand-alone; DMX; Master/slave function; Sound to light via Microphone; Light J Software
Beam angle: 20°
Beam angle (1/2 peak): 20°
Illuminance in Lux (lx): Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color: Black
Display type: OLED display
Dimensions: Width: 25,1 cm
Depth: 14,1 cm
Height: 37,7 cm
Weight: 5,80 kg
Noise classification: Class 2 (slight noise)
Legal specifications
Special product: Not designed for household room illumination
intended use: show effect lighting

Extra informatie

Gewicht 6,6 kg
Afmetingen 0,2250 × 0,4950 × 0,3000 m
