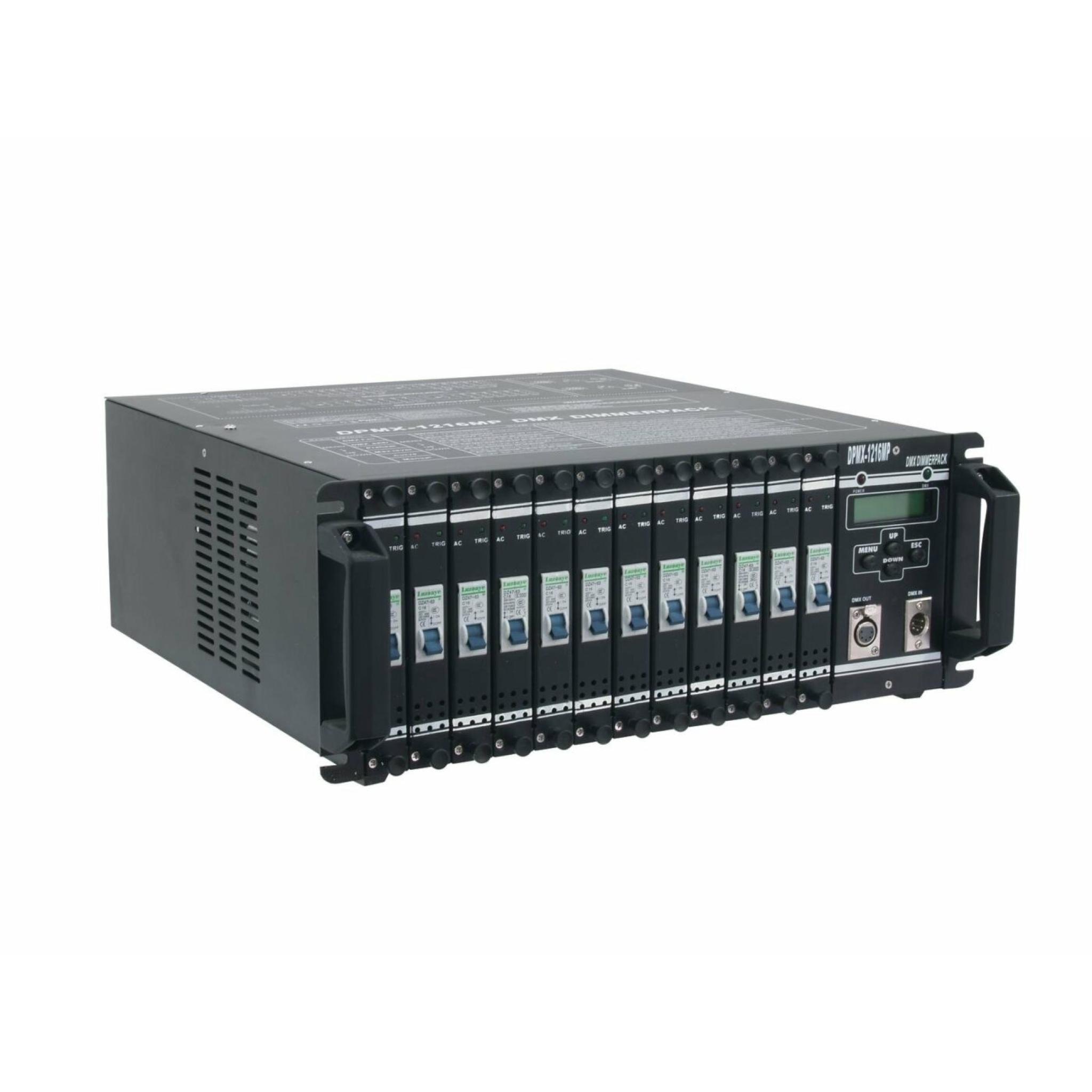

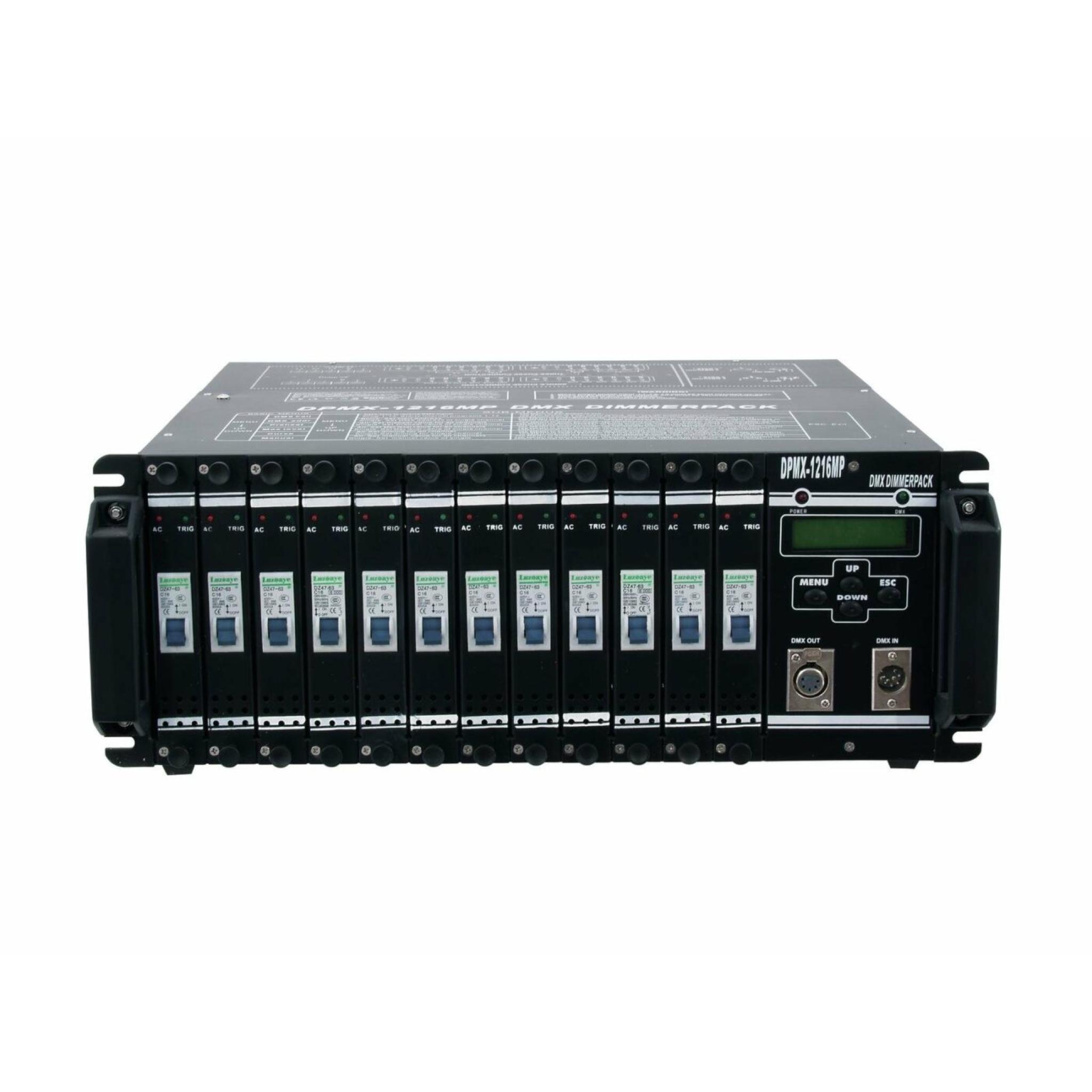

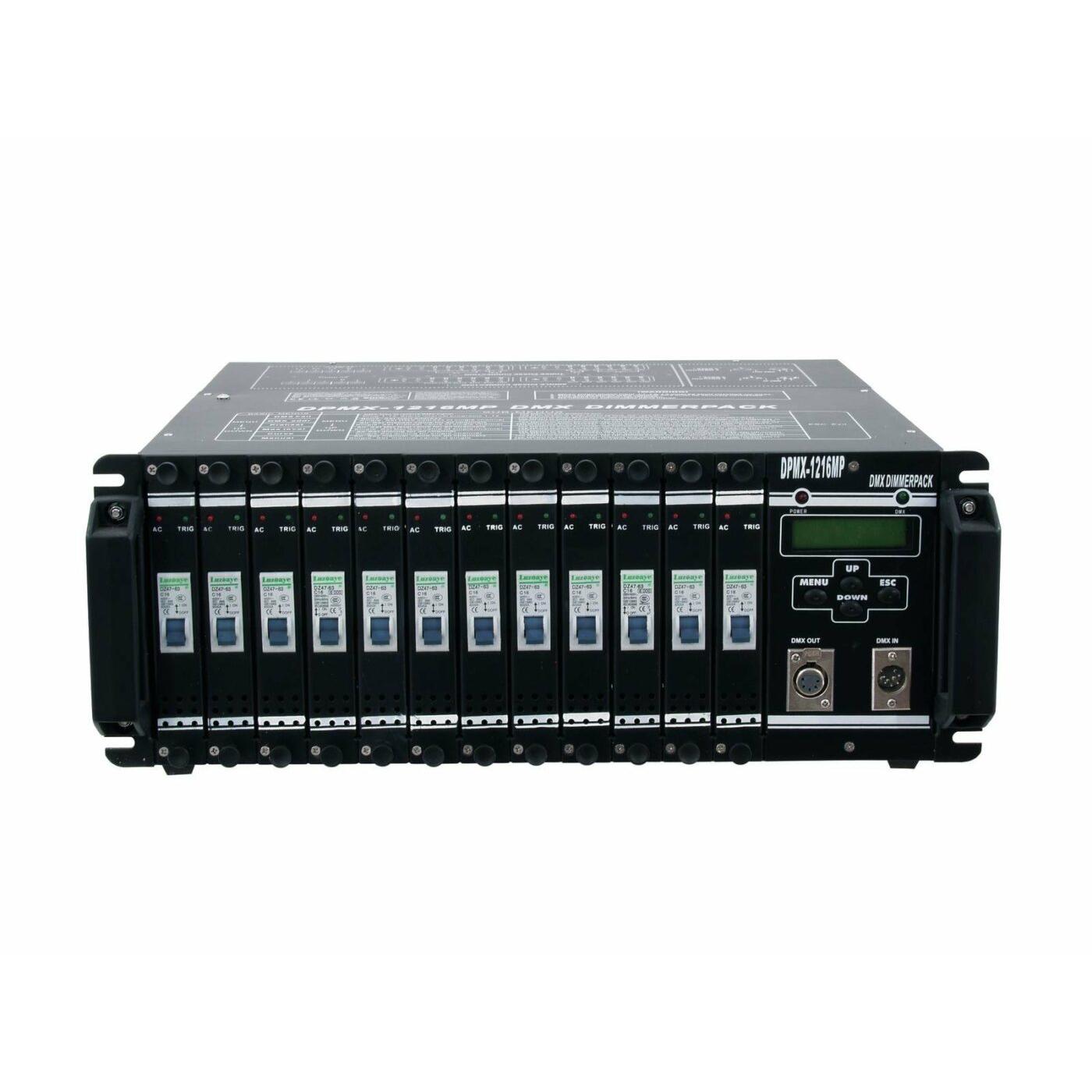

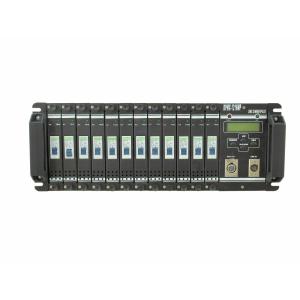

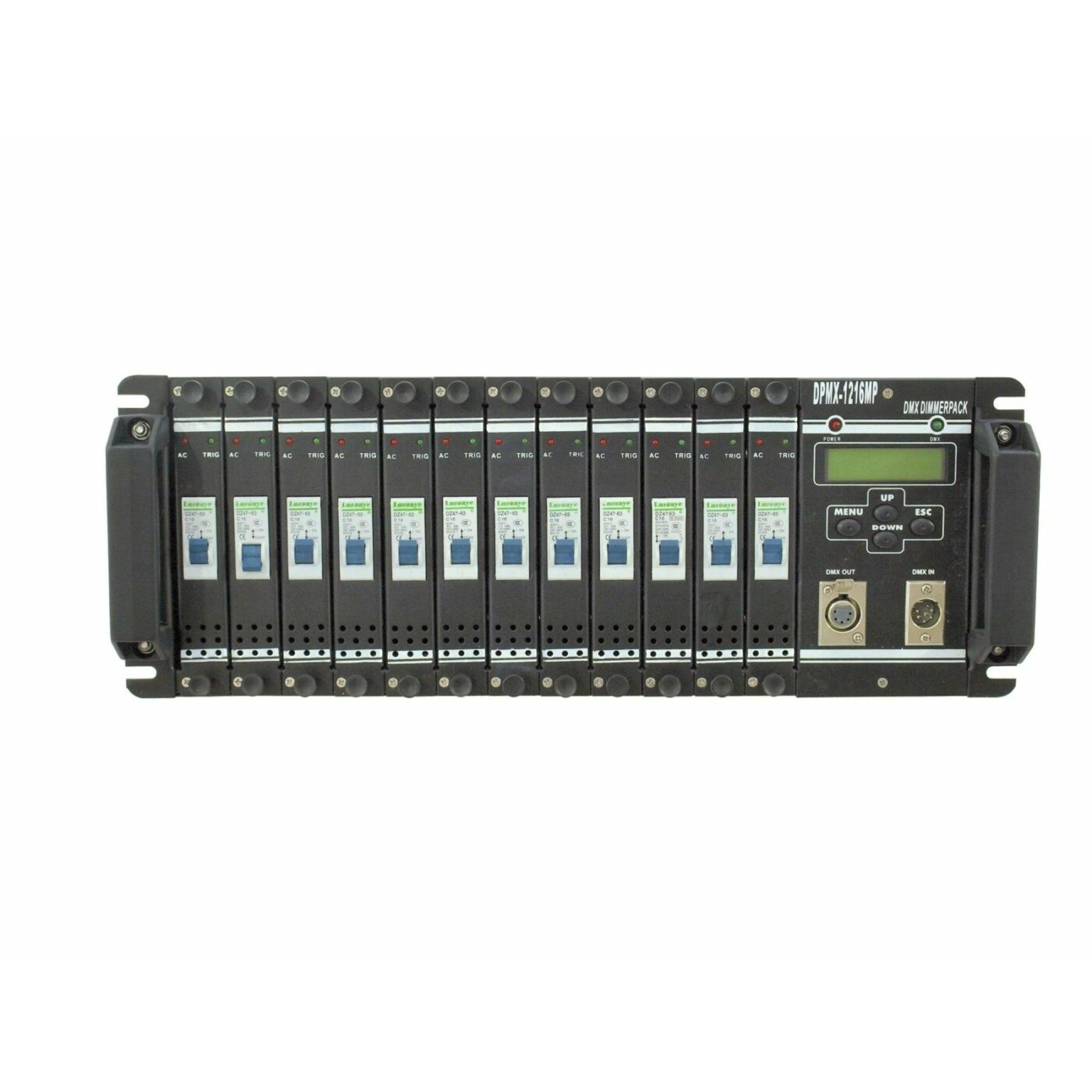

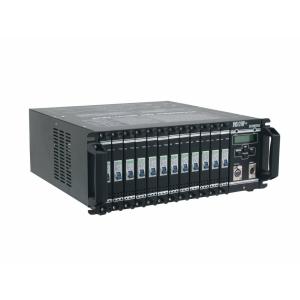

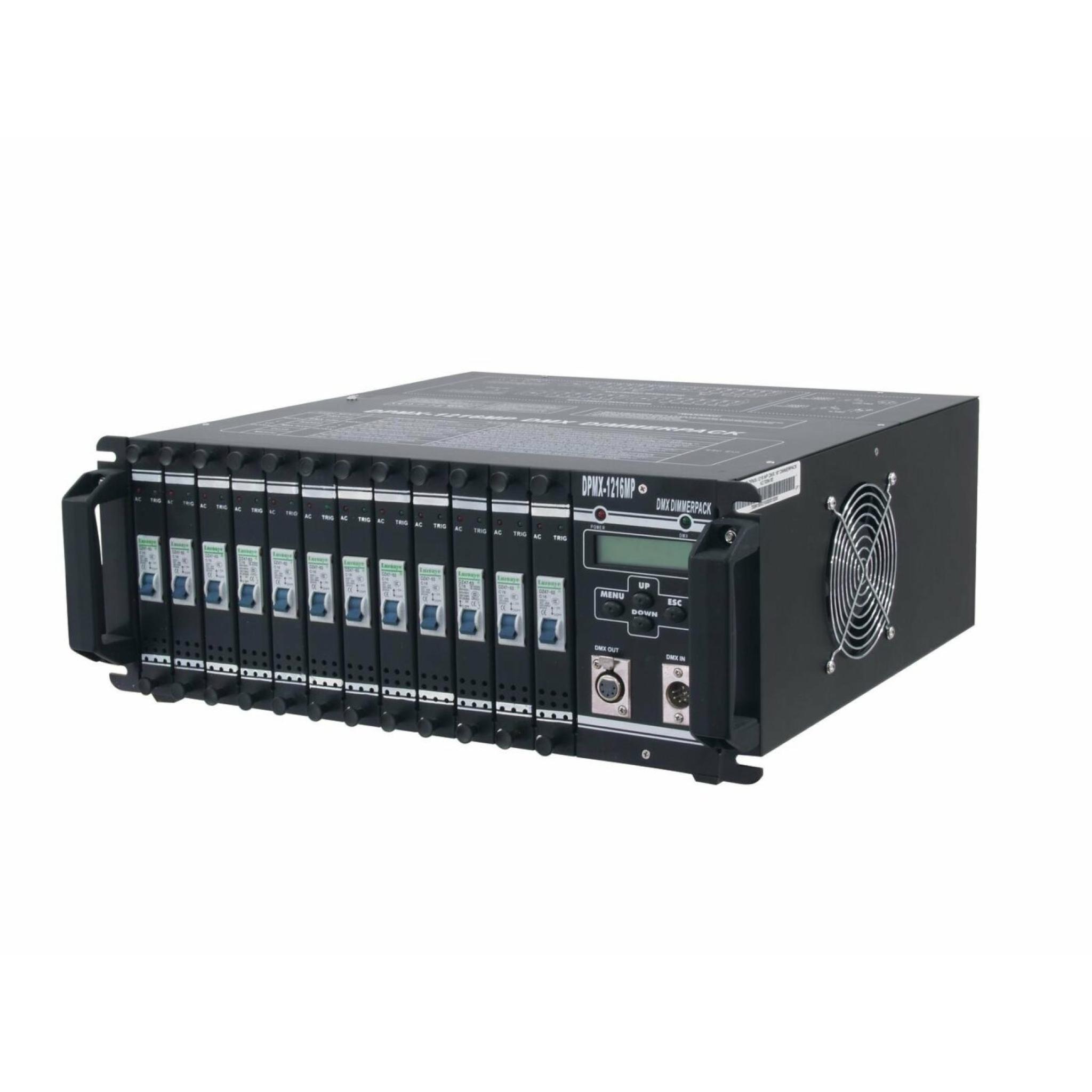

Eurolite DPMX-1216 MP DMX Dimmer Pack
Oorspronkelijke prijs was: €1.367,31.€1.021,98Huidige prijs is: €1.021,98.
Op voorraad nu besteld uiterlijk 22 april in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 70064185
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
12 x 16A dimmer, service friendly modules, 2 16-pin multipin sockets
- 12-channel dimmer pack with up to 16 A output per channel
- Modular design of the individual dimmer modules for quick and easy change
- 3-phase or 1-phase power supply
- DMX512 control or analog control
- Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
- Curve function for selection of different fade modes
- Dim or switch option assignable to each channel
- DMX Fail function: automatic digital input check to detect DMX signal errors
- 12 built-in programs with adjustable speed
- Manual mode for dimming capability without an external lighting controller
- All modes are displayed via LCD
- Synchronization of several devices possible via DMX
- Automatic circuit breaker per channel (type C)

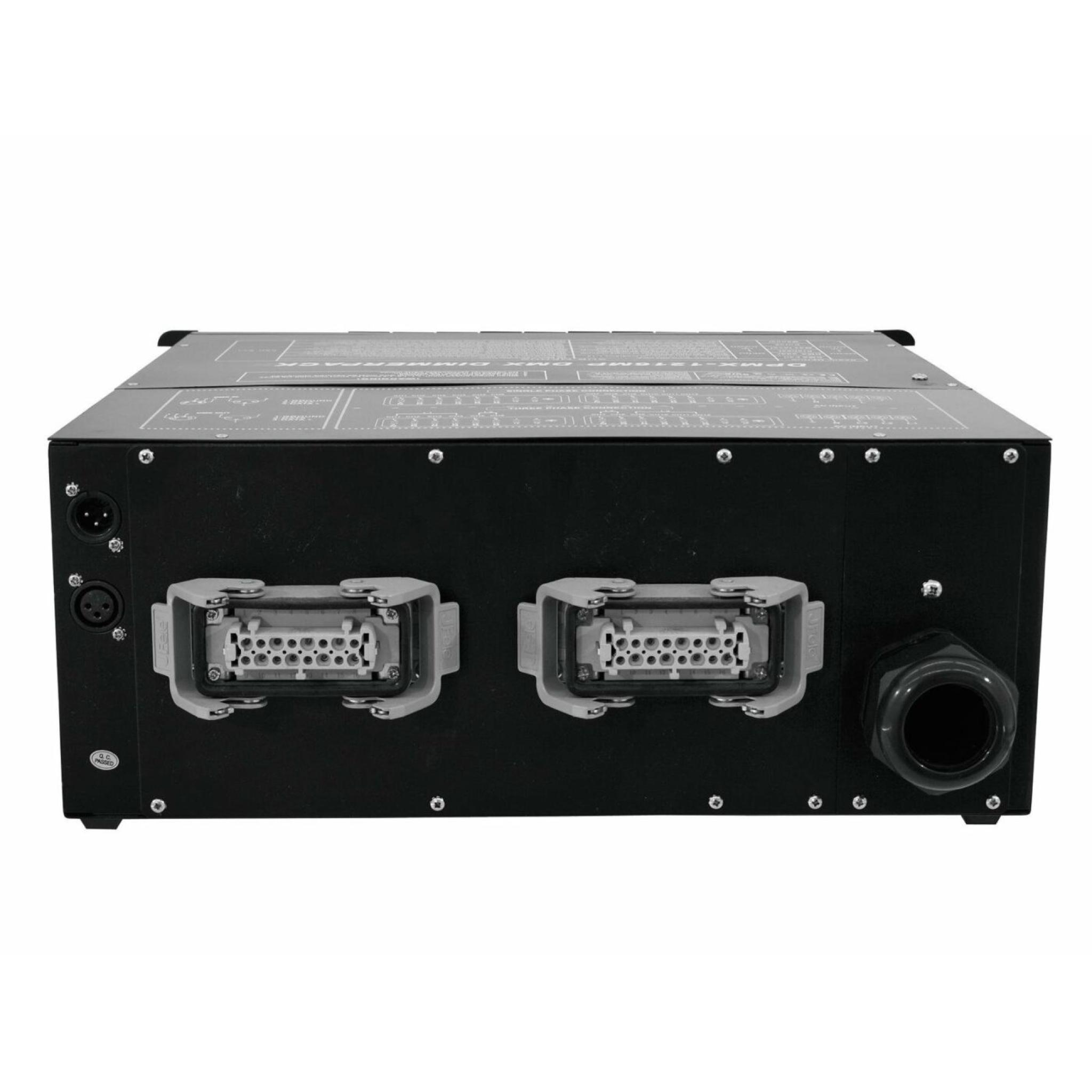

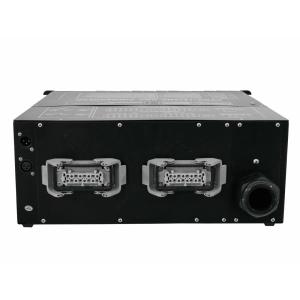

- Channel outputs on the rear panel via industrial sockets
- Rack installation with 4 U
- Only for professional use
| Power supply: | 230-380 V AC, 50 Hz |
| Max. power output: | 43470 W |
| Max. current: | 189 A |
| Max. output/channel: | 3680 W |
| Max. current/channel: | 16 A |
| Number of control channels: | 12 |
| Integrated programs: | 12 |
| Fuse: | 12 x C 16 A, 230 V |
| DMX output: | 3-pin female XLR socket |
| DMX input: | 3-pin male XLR socket |
| Outputs: | 16-pin sockets |
| Dimensions (W x D x H): | 482 x 485 x 176 mm |
| Minimum mounting depth: | 500 mm |
| Weight: | 27 kg |
Extra informatie
Extra informatie
| Gewicht | 21,05 kg |
|---|---|
| Afmetingen | 0,2900 × 0,5600 × 0,6100 m |
| Color | Black |
| Control | Analog 0-10 V, DMX, Stand-alone |
| Weight kg | 2,7 |
| Max. output per channel W | 3680 |
| Accumulator | No |
| Number of DMX channels | 12 |
| Max. power output W | 43470 |
| Control Channels | 12 |
| Dimmer/Switcher | Dimmer |
| Current type | three-phase current |
