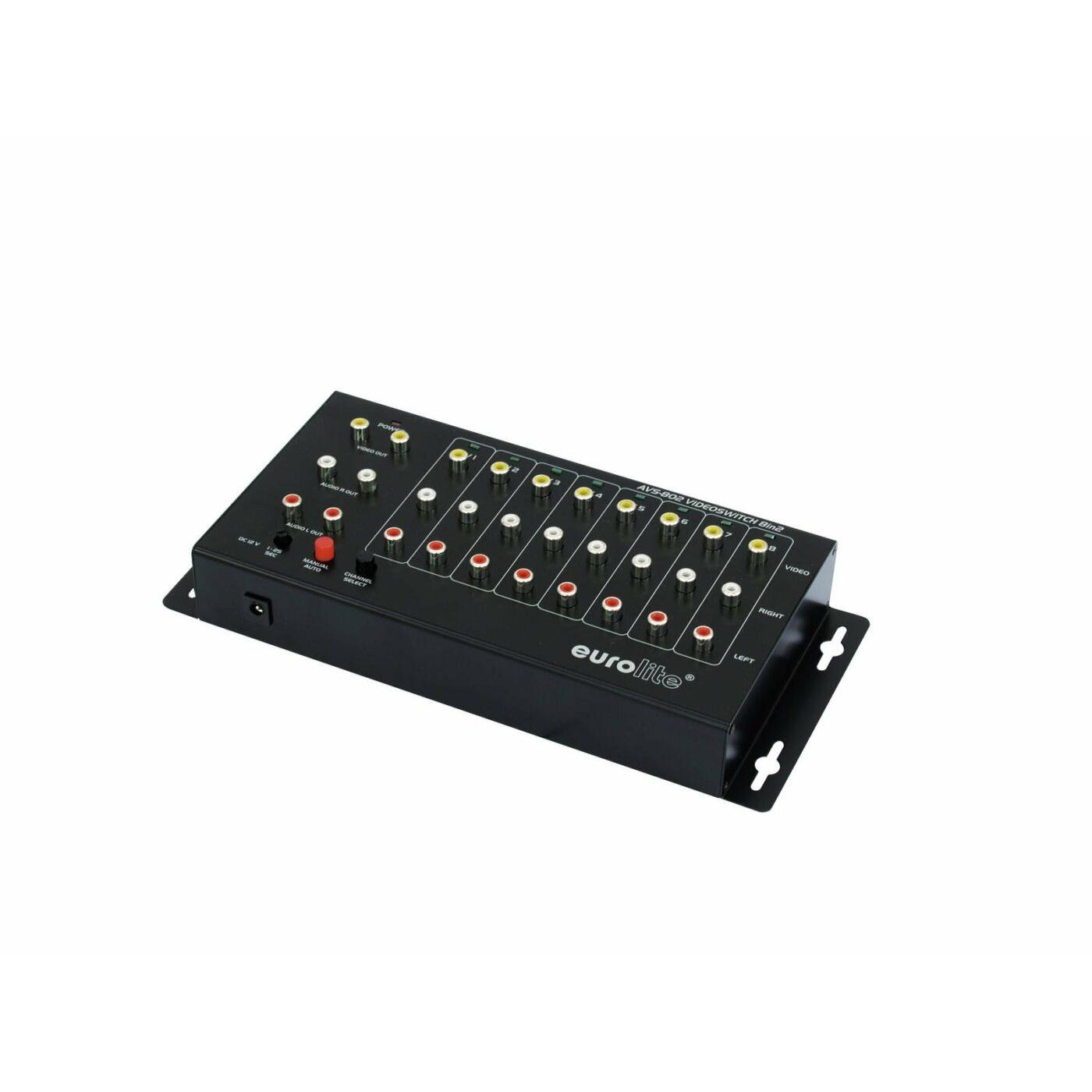

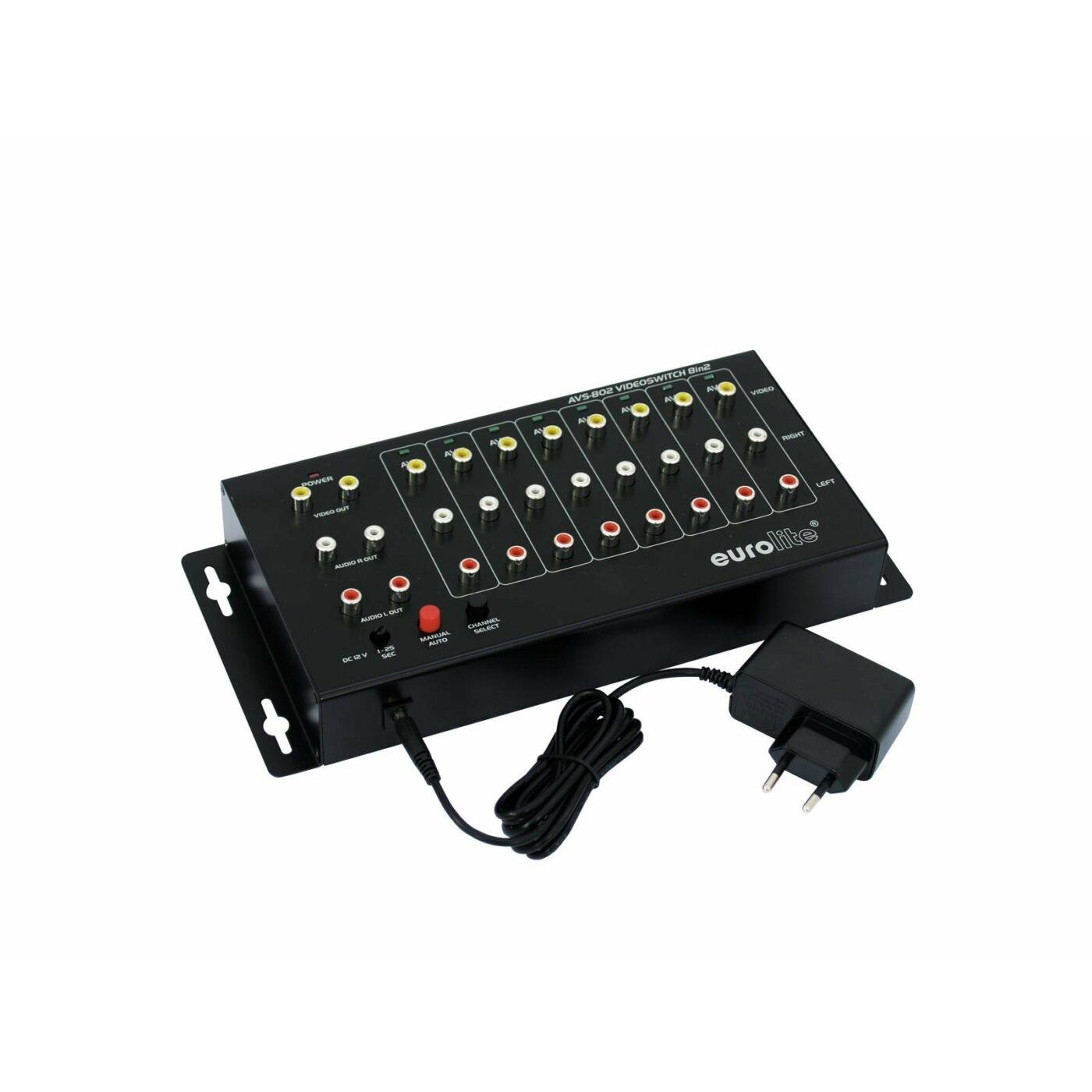

Eurolite AVS-802 Video switch 8in2
Oorspronkelijke prijs was: €80,33.€66,64Huidige prijs is: €66,64.
Op voorraad nu besteld uiterlijk 15 april in huis.
Gratis verzending vanaf 100 euro.
Veilig bestellen en betalen via iDeal, Afterpay, Creditcard en Bancontact.
We adviseren je graag! Neem contact met ons op.
Keuze uit 3400 Afhaalpunten van PostNL
International shipping, whole of Europe.
Availability: Voor 23:00 besteld binnen 2 a 4 werkdagen in huis
Artikelnummer: 81013102
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
8-way AV switch
- For switching eight AV sources (audio, composite video and s-video television signals) to up to two television monitors
- Typical applications are security or information systems in shopping centres, schools, hotels, railway stations, airports etc.
- 8 inputs (RCA), manually or automatically switchable
- Automatic switching time adjustable from 1 to 25 seconds
- 2 outputs (RCA)
- Simultaneous recording to one or two video or DVD recorders
- A stereo system can be connected via the second output
- 12 V power supply via power unit included in the delivery
| Power supply: | 100-240 V AC, 50/60 Hz, |
| via supplied power unit | |
| Power consumption: | 6 W |
| Video | |
| 8 x inputs: | 1 Vpp/ 75 ohms, composite RCA |
| 2 x outputs: | 1 Vpp/ 75 ohms, composite RCA |
| Gain: | 2 V, 1 V (terminated)/ 75 ohms |
| Return loss: | >18 dB |
| Video bandwidth: | >100 MHz |
| Audio | |
| 8 x inputs: | 22 kohms, stereo RCA |
| 2 x output: | 1 kohms, stereo RCA |
| Gain: | nominal 0 dB |
| THD: | 0.05 % |
| Channel separation: | >75 dB |
| Frequency range: | 20 Hz – 100 kHz |
| S/N ratio: | 100 dB |
| Dimensions: | 282 x 128 x 50 mm |
| Weight: | 1 kg |
Extra informatie
Extra informatie
| Gewicht | 1,086 kg |
|---|---|
| Afmetingen | 0,0600 × 0,3550 × 0,1350 m |
| Weight kg | 1 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption W | 6.00 |
| Frequency range Hz | 20 – 100 |
