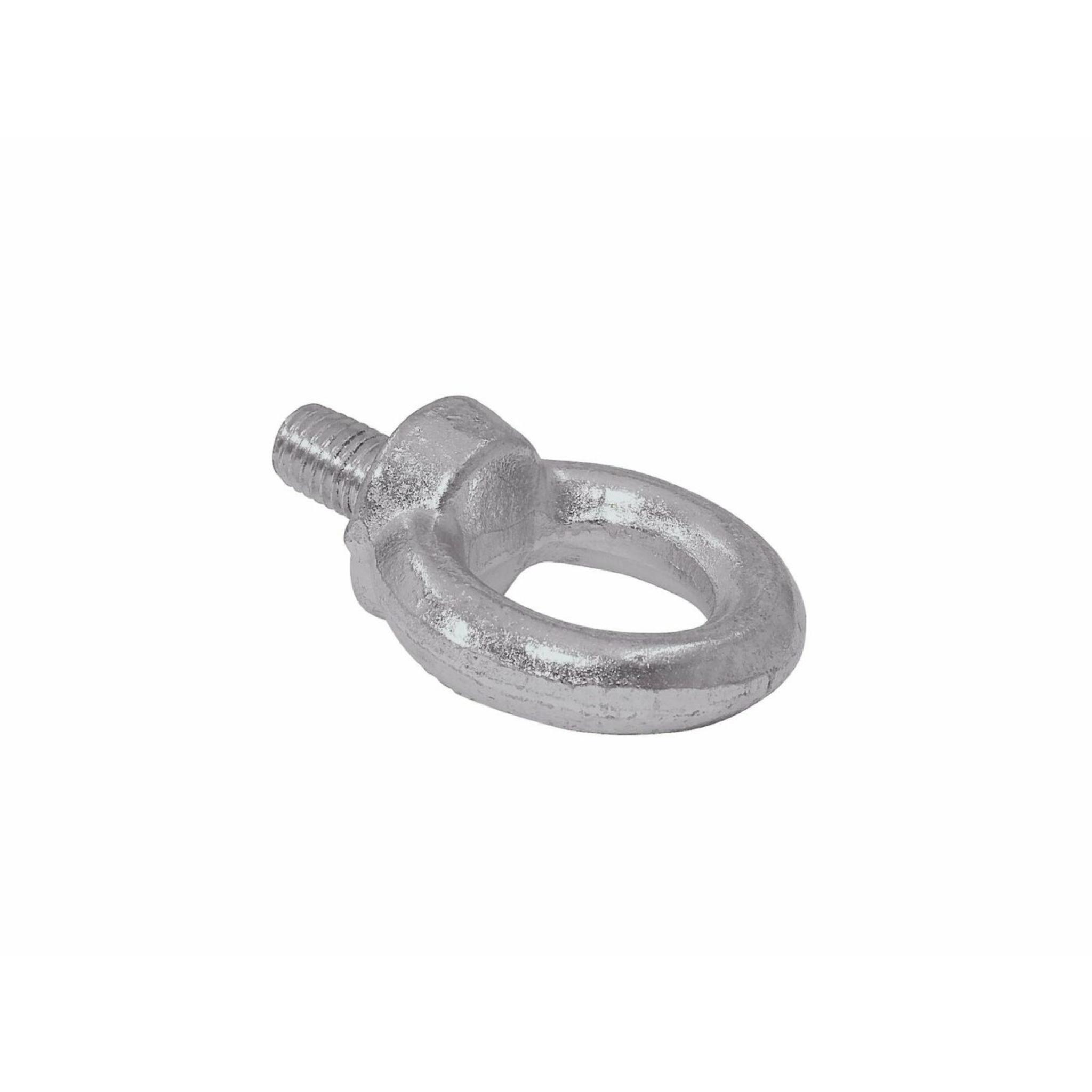

ACCESSORY Eye Bolt M8
€4,65
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving
High-tensile ring bolt
- For holding, carrying, suspending and securing
- Can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
- Warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear. The WLL does not describe the maximum load for overhead rigging!
| Material: | C15E |
| Thread diameter: | M8 |
| Thread length: | 13 mm |
| Maximum load WLL (4-fold): | 140 kg |
| Maximum load BGV C1 (8-fold): | 70 kg |
| Inner diameter: | 20 mm |
| Outer diameter: | 36 mm |
| Total length: | 49 mm |
| Weight: | 55 g |
Extra informatie
Extra informatie
| Gewicht | 0,055 kg |
|---|---|
| Afmetingen | 0,0200 × 0,0500 × 0,0350 m |
| Weight kg | 0.055 |
| Max. load WLL (4fold) kg | 140 |
| Length mm | 49 |
| Thread | M8 |
