ACCESSORY Eye Bolt M10
€5,36
- Beschrijving
- Extra informatie
- Beoordelingen (0)
Beschrijving
Beschrijving

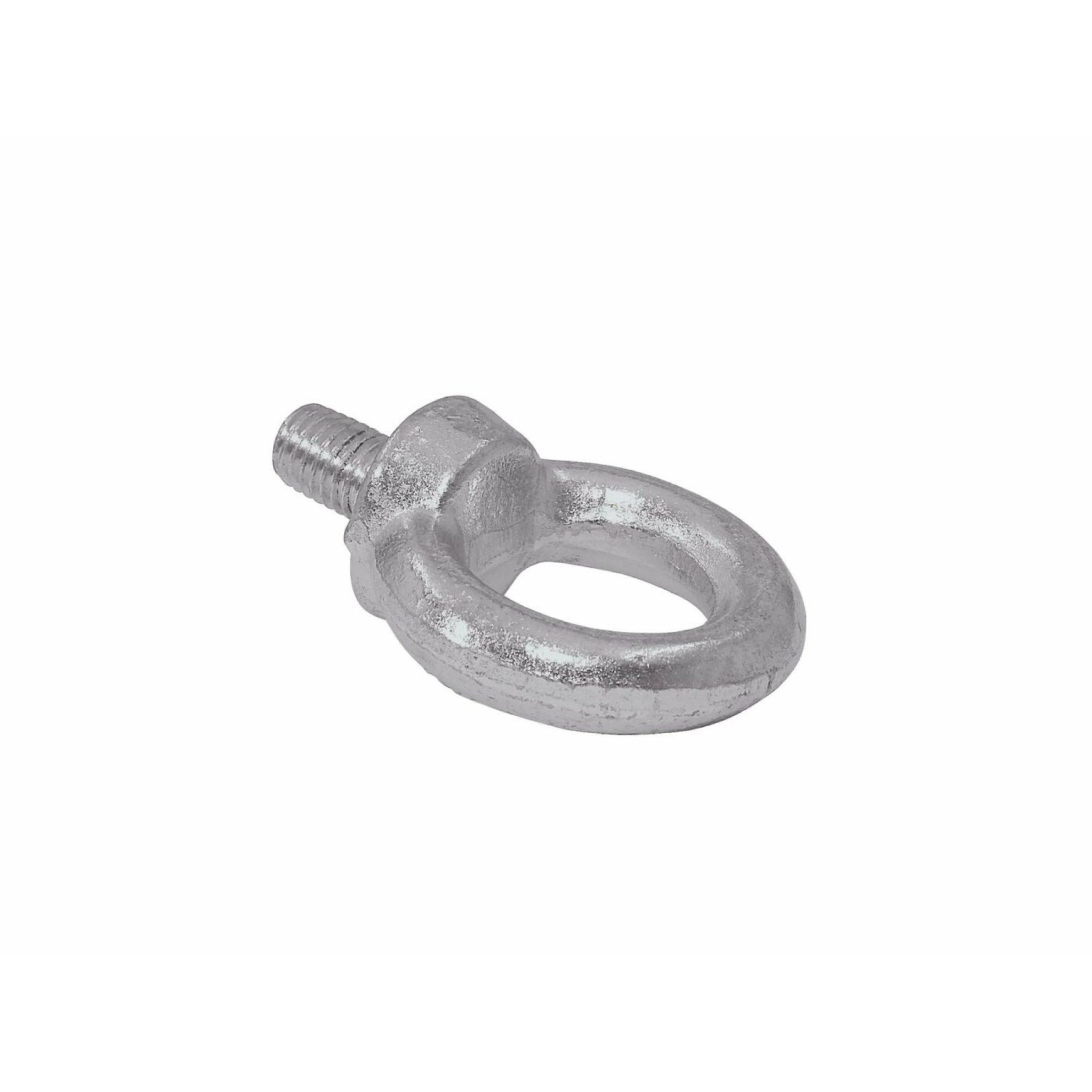

High-tensile ring bolt
- For holding, carrying, suspending and securing
- Can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
- Warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear. The WLL does not describe the maximum load for overhead rigging!
| Material: | C15E |
| Thread diameter: | M10 |
| Thread length: | 17 mm |
| Maximum load WLL (4-fold): | 230 kg |
| Maximum load BGV C1 (8-fold): | 115 kg |
| Inner diameter: | 25 mm |
| Outer diameter: | 45 mm |
| Total length: | 62 mm |
| Weight: | 115 g |
Extra informatie
Extra informatie
| Gewicht | 0,106 kg |
|---|---|
| Afmetingen | 0,0250 × 0,0650 × 0,0450 m |
| Weight kg | 0.115 |
| Max. load WLL (4fold) kg | 230 |
| Length mm | 62 |
| Thread | M10 |
